Nanocomposites of Polyethylene-Closite 20A: Preparation and Characteristics


Year : 2025 | Volume : 15 | Issue : 01 | Page : 01-12
    By

    Haydar U. Zaman,

  • Md. Abu Sayed,

  1. Assistant Professor, Department of Physics, National University of Bangladesh and Institute of Radiation and Polymer Technology, Bangladesh Atomic Energy Commission, Savar, Dhaka, Bangladesh
  2. Assistant Professor, Department of Chemistry, National University College of Bangladesh, Dhaka, Bangladesh

Abstract

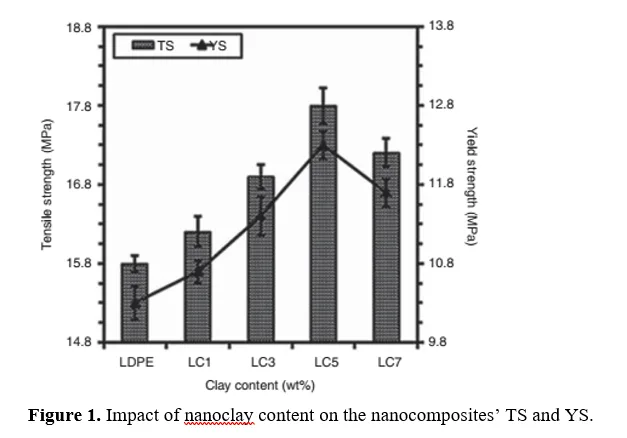

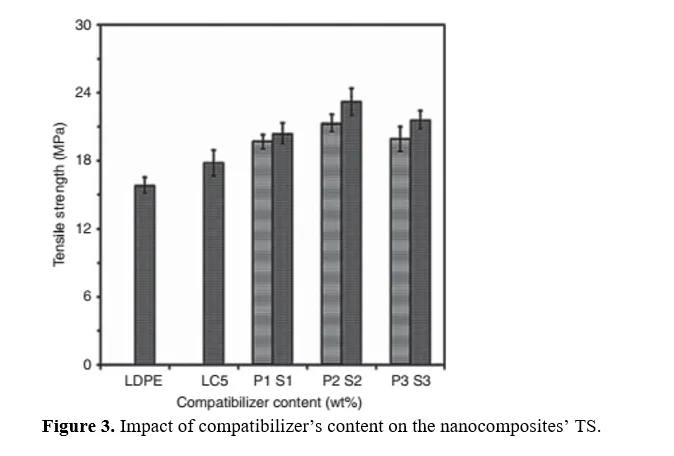

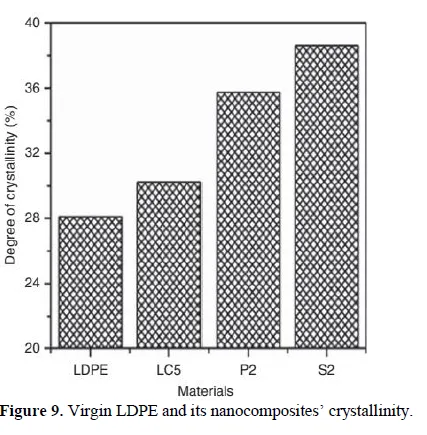

Low-density polyethylene/closite 20A nanocomposites with different organoclay contents were made in the current study by a melt mixing technique with two different compatibilizers of varying contents: low molecular weight oxidized polyethylene and low molecular weight trimethoxysilyl modified polybutadiene. The inclusion of compatibilizers and concentrations of organoclay were analyzed in relation to the mechanical and thermal properties of the nanocomposites. The dispersibility of the silicate clay in the nanocomposites was investigated using transmission electron microscopy. It was discovered that organosilane created a more exfoliated structure and increased clay dispersion in comparison to the low molecular weight oxidized polyethylene. “A dynamic oscillatory rheometer” was used to analyze the samples’ rheological behavior in the linear viscoelastic zone. Tensile strength, yield strength, and tensile modulus were all higher in the organosilane compatibilized system than in the uncompatibilized system, and much higher in the low molecular weight oxidized polyethylene compatibilized case. The crystallization characteristics of compatibilized and uncompatibilized nanocomposites were investigated using differential scanning calorimetry. The inclusion of compatibilizers raised the crystallization temperature due to the heterogeneous nucleation impact of organoclay on low-density polyethylene, according to the results of differential scanning calorimetry

Keywords: Films, organoclay, crystallization behavior, mechanical properties, polyethylene.

[This article belongs to Journal of Nanoscience, NanoEngineering & Applications ]

How to cite this article:
Haydar U. Zaman, Md. Abu Sayed. Nanocomposites of Polyethylene-Closite 20A: Preparation and Characteristics. Journal of Nanoscience, NanoEngineering & Applications. 2025; 15(01):01-12.
How to cite this URL:
Haydar U. Zaman, Md. Abu Sayed. Nanocomposites of Polyethylene-Closite 20A: Preparation and Characteristics. Journal of Nanoscience, NanoEngineering & Applications. 2025; 15(01):01-12. Available from: https://journals.stmjournals.com/jonsnea/article=2025/view=192303


Browse Figures

References

  1. Dintcheva NT, Marino R, Paolo La Mantia F. Effect of the extensional flow on the properties of oriented nanocomposite films for twist wrapping. J Appl Polym 2011;120:2772-9.
  2. Zaman HU, Hun PD, Khan RA, Yoon KB. Morphology, mechanical, and crystallization behaviors of micro- and nano-ZnO filled polypropylene composites. J Reinf Plast 2012;31(5):323-9.
  3. Zaman HU, Hun PD, Khan RA, Yoon KB. Improvement of the mechanical and rheological properties of HDPE/PET/MWCNT nanocomposites. Composite Interf. 2012;19:71–
  4. Wang KH, Choi MH, Coo CM, Choi YS, Chung IJ. Synthesis and characterization of maleated polyethylene/clay nanocomposites. Polym. 2001;42:9819-
  5. Chrissopoulou K, Altintzi I, Anastasiadis SH, Giannelis EP, Pitsikalis M, Hadjichristidis N, Theophilou N. Controlling the miscibility of polyethylene/layered silicate nanocomposites by altering the polymer/surface interactions. Polym. 2005;46:12440-
  6. Zaman HU, Khan MA, Khan RA, Beg MDH. Effect of nano-CaCO3 on the mechanical and crystallization behavior of HDPE/LDPE/nano-CaCO3 ternary blend. J Therm Comp 2013;27:1–10.
  7. Manias E, Touny A, Wu L, Lu B, Strawhecker K, Gilman JW, Chung TC. Polypropylene/silicate nanocomposites, synthetic routes and materials properties. Polym Mater Sci 2000;82:282-3.
  8. Zaman HU, Hun PD, Khan RA, Yoon KB. Polypropylene/clay nanocomposites: effect of compatibilizers on the morphology, mechanical properties and crystallization behaviors. J Therm Comp 2012;27:338–49.
  9. Alexandre M, Dubois P, Polymer-layered silicate nanocomposites: preparation, properties and uses of a new class of materials. Mater Sci 2000;28:1-63.
  10. Giannakas A, Xidas P, Triantafyllidis KS, Katsoulidis A, Ladavos A. Preparation and characterization of polymer/organosilicate nanocomposites based on unmodified LDPE. J Appl Polym 2009;114(1):83-9.
  11. Grigoriadi K, Giannakas A, Ladavos A, Barkoula NM. Thermomechanical behavior of polymer/layered silicate clay nanocomposites based on unmodified low density polyethylene. Polym Eng 2013;53(2):301-8.
  12. Liang G, Xu J, Bao S, Xu W. Polyethylene/maleic anhydride grafted polyethylene/organic-montmorillonite nanocomposites. I. Preparation, microstructure, and mechanical properties. J Appl Polym 2004;91:3974-80.
  13. Yang H, Song Y, Xu B, Zheng Q. Preparation of exfoliated low-density polyethylene/montmorillonite nanocomposites through melt extrusion. Chem Res Chinece U. 2006;22:383-
  14. Malucelli G, Ronchetti S, Lak N, Priola A, Dintcheva NP, la Mantia F. Intercalation effects in LDPE/o-montmorillonites nanocomposites. Eur Polym 2007;43:328-35.
  15. Lu H, Hu Y, Li M, Chen Z Fan W. Structure characteristics and thermal properties of silane-grafted-polyethylene/clay nanocomposite prepared by reactive extrusion. Compos Sci 2006;66:3035-9.
  16. Lu H, Yuan H, Ling Y, Zhengzhou W, Zuyao C, Weicheng F. Preparation and thermal characteristics of silane-grafted polyethylene/montmorillonite nanocomposites. J Mater 2005;40:43-6.
  17. Herrera-Franco JP, Hernandez-Sanchez F, Adem E, Burillo G. Dynamic mechanical properties of compatibilized PET with radiation oxidized HDPE. Polym 2006;56:47-52.
  18. Abdouss M, Sanjani NS, Azizinejad F, Shabani MJ. Effects of compatibilization of oxidized polypropylene on PP blends of PP/PA6 and PP/talc. J Appl Polym 2004;92:2871-83.
  19. ASTM Standard D 638-01. Ameri Soc Test Mater. 2002;08:45-
  20. Durmus A, Woo M, Kasgoz A, Macosko CW, Tsapatsis M. Intercalated linear low density polyethylene (LLDPE)/clay nanocomposites prepared with oxidized polyethylene as a new type compatibilizer: structural, mechanical and barrier properties. Eur Polym 2007;43:3737–49.
  21. Fornes TD, Paul DR. Modeling properties of nylon 6/clay nanocomposites using composite theories. Polym. 2003;44:4993-
  22. Chen HY, Bishop MT, Landesand BG, Chum SP. Orientation and property correlations for LLDPE blown films. J Appl Polym 2006;101:898-907.
  23. Pštschke P, Fornes TD,Paul DR. Rheological behavior of multiwalled carbon nanotube/polycarbonate composites. Polym. 2002;43:3247-
  24. Chen WC, Lai SM, Chen CM. Preparation and properties of styrene–ethylene–butylene–styrene block copolymer/clay nanocomposites: I. Effect of clay content and compatibilizer types. Polym 2008;57:515-22.
  25. Chiu F-C, Lai S-M, Chen CW, Chu P-H. Combined effects of clay modifications and compatibilizers on the formation and physical properties of melt-mixed polypropylene/clay nanocomposites. J Polym Sci Polym 2004;42:4139-50.
Regular Issue Subscription Original Research
Volume 15
Issue 01
Received 25/11/2024
Accepted 15/12/2024
Published 04/01/2025
