Enhanced Mechanical and Tribological Performance of Magnesium–Boron Carbide Composites Fabricated via Stir Casting for Lightweight Structural Applications

Year : 2025 | Volume : 13 | Issue : 04 | Page : 29 39
    By

    P. Saravana Kumar,

  • H. Vinoth Kumar,

  • P. Pramerla,

  • Bindu S S,

  • G. Saveetha,

  • Nellore Manoj Kumar,

  • Avinash Kumar,

  • M. Mathiyarasi,

  1. Assistant Professor, Department of Mechanical Engineering, University college of Engineering Arni, Thatchur, Tamil Nadu, India
  2. Assistant Professor, Department of Mechanical Engineering, Easwari Engineering College, Ramapuram, Chennai, Tamil Nadu, India
  3. Associate Professor, Department of Physics, Vel Tech Rangarajan Dr. Sagunthala R& D Institute of Science and Technology, Chennai, Tamil Nadu, India
  4. Associate Professor, Department of Mechanical Engineering, Rajadhani Institute of Engineering and Technology, Nagaroor, Kerala, India
  5. Associate Professor, Department of Mathematics, Kongunadu College of Engineering and Technology, Trichy, Tamil Nadu, India
  6. Adjunct Faculty, Department of Mathematics, Saveetha School of Engineering, Saveetha Institute of Medical and Technical Sciences (SIMATS), Chennai, Tamil Nadu, India
  7. Assistant Professor, Department of Mechanical Engineering, Cambridge Institute of Technology, Ranchi, Jharkhand, India
  8. Assistant Professor, Department of Aeronautical Engineering, Sathyabama Institute of Science and Technology, Chennai, Tamil Nadu, India

Abstract

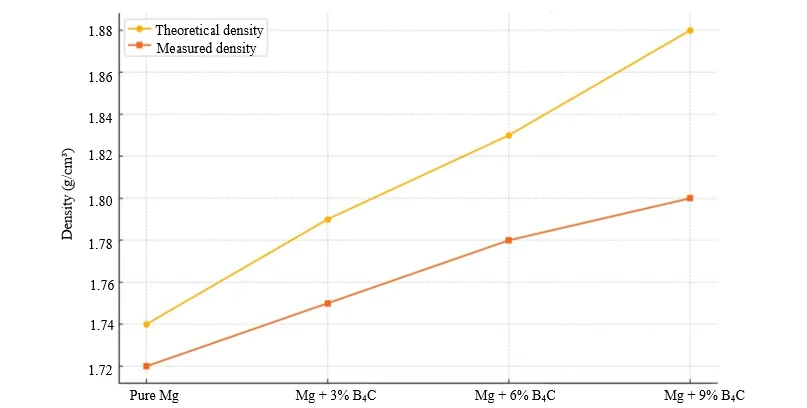

This study investigates the fabrication and evaluation of properties of magnesium (Mg) matrix composites reinforced with boron carbide (B₄C) for lightweight structural applications. Stir casting was employed to incorporate B₄C particles at varying weight fractions (0%, 3%, 6%, and 9%) into the magnesium matrix. The influence of B₄C on density, porosity, hardness, tensile strength, and wear resistance was systematically examined. Theoretical density increased from 1.74 g/cm³ (pure Mg) to 1.88 g/cm³ (9 wt% B₄C), while measured density showed slight reductions due to increased porosity, reaching up to 4.3% in the 9 wt% composite. Microhardness improved significantly, with values rising from 45 HV for pure Mg to 82 HV for the 9 wt% B₄C composite, marking an 82% increase. Ultimate tensile strength peaked at 151 MPa for the 6 wt% B₄C composite, compared to 120 MPa for pure Mg, while ductility declined from 7.8% to 3.9% with increasing reinforcement. Wear resistance improved substantially, with wear rate decreasing from 0.0082 g/Nm in pure Mg to 0.0042 g/Nm in the 9 wt% B₄C composite. These enhancements are attributed to grain refinement, dislocation strengthening, and the barrier effect of B₄C particles. The optimal performance was observed in the 6 wt% B₄C composite for mechanical strength and 9 wt% for wear resistance, offering application-specific advantages.

Keywords: Magnesium matrix composites, boron carbide (B₄C) reinforcement, stir casting, mechanical properties, wear resistance.

[This article belongs to Journal of Polymer and Composites ]

How to cite this article:
P. Saravana Kumar, H. Vinoth Kumar, P. Pramerla, Bindu S S, G. Saveetha, Nellore Manoj Kumar, Avinash Kumar, M. Mathiyarasi. Enhanced Mechanical and Tribological Performance of Magnesium–Boron Carbide Composites Fabricated via Stir Casting for Lightweight Structural Applications. Journal of Polymer and Composites. 2025; 13(04):29-39.
How to cite this URL:
P. Saravana Kumar, H. Vinoth Kumar, P. Pramerla, Bindu S S, G. Saveetha, Nellore Manoj Kumar, Avinash Kumar, M. Mathiyarasi. Enhanced Mechanical and Tribological Performance of Magnesium–Boron Carbide Composites Fabricated via Stir Casting for Lightweight Structural Applications. Journal of Polymer and Composites. 2025; 13(04):29-39. Available from: https://journals.stmjournals.com/jopc/article=2025/view=213241


Browse Figures

References

  1. Hazra S. Enhancing material performance: A review of magnesium-based metal matrix composites. J Manuf Eng. 2025;20(1):6–19.
  2. Bădoi I, Drăgan I, Brabie G. Magnesium forged components for structural lightweight transport applications. Int J Lightweight Mater Manuf. 2023;6(2):89–98.
  3. Aljabr R. A comprehensive overview on magnesium metal matrix composites. NanoWorld J. 2023;9(S1):1–15.
  4. Dwivedi SP, Rajak DK, Kushwaha AK, Pasha M. Mechanical characterization and corrosion behavior of magnesium/boron carbide composites. J Mater Chem. 2020;2(1):7–12.
  5. Joseph S, Jacob S, Varghese TP. Biomineralization and mechanical studies of sodium substituted hydroxyapatite. J Biomed Mater Res A. 2023;111(4):567–576.
  6. Kalemtas A, Toktas A. Melt infiltration casting of alumina, silicon carbide and boron carbide reinforced aluminum matrix composites. Mater Sci Forum. 2017;879:113–118.
  7. Kalkanli A, Yilmaz S. Squeeze casting of SiC and B4C reinforced aluminum matrix composites. J Mater Process Technol. 2008;206(1-3):7–13.
  8. Cáceres CH, Blake AH. Boron carbide/magnesium composites: Processing, microstructure and properties. Mater Sci Eng A. 2012;556:201–208.
  9. Alarifi IM. Investigation into structural, chemical and mechanical performance of B4C-graphene composites. Molecules. 2021;26(7):2049.
  10. Silva DDS, Ferreira E, Pessanha G. Microstructures and borides morphology of boron-modified stainless steels. Mater Charact. 2022;185:111678.
  11. Anbuchezhiyan G, Saravanakumar K, Thirumalai K. A synergistic effect on enriching Mg–Al–Zn alloy-based hybrid composite properties. Sci Rep. 2022;12:12345.
  12. Sakthi S, Manivannan N, Balu A. Investigation of mechanical, corrosion, and tribological characteristics of AZ61 Mg-B4C nanocomposites. Mater Sci-Poland. 2023;41(3):227–243.
  13. Soundararajan V, Annamalai P, Balaji G. Optimization of tribo-mechanical properties of B4C reinforced magnesium matrix composites. Mater Res Express. 2021;8(10):106501.
  14. Kumar R, Singh R. Manufacturing and characterization of magnesium composites reinforced with boron carbide particles. Mater Sci Technol. 2023;39(5):587–596.
  15. Banijamali S, Palizdar Y. Effect of B4C reinforcement and hot rolling on microstructure and properties of AZ31 Mg alloy. Mater Sci Eng A. 2022;832:142453.
  16. Chen S, Liu D, Liu Y. Characterization of (B4C+Ti) hybrid reinforced Mg and AZ91D composites. Mater Sci Eng A. 2022;831:142413.
  17. Singh J, Singh H. Processing, microstructure and mechanical behavior of Mg composites with hybrid reinforcement. Mater Today Proc. 2021;43(2):1267–1274.
  18. Zhao Y, Zhou F, Yang Y. Microstructure evolution of high-entropy oxide Mg-based composites. J Eur Ceram Soc. 2021;41(12):5678–5687.
  19. Huang SJ, Cheng H, Lu C. Predicting mechanical properties of Mg matrix composites using machine learning. J Compos Sci. 2023;7(9):347.
  20. Rajkumar G, Selvakumar N. Corrosion behavior of B4C reinforced Mg alloys in marine environments. Mater Today Proc. 2023;68:1231–1237.
  21. Ali M, Khan AA, Rao PS. Mechanical and wear behaviour of Mg-B4C composites fabricated by powder metallurgy route. Mater Today Proc. 2022;61:2010–2015.
  22. Sun Y, Wang Q, Zhang D. Influence of nano-B4C on microstructural evolution and tensile strength of AZ31 magnesium alloy. J Alloys Compd. 2021;864:158680.
  23. Yadav P, Kumar S. Wear behavior of magnesium matrix composites reinforced with hybrid ceramic particles. Mater Res Express. 2023;10(2):025015.
  24. Ravindra D, Sharma P. Microstructural analysis and property evaluation of stir cast Mg-B4C composites. J Magnesium Alloys. 2023;11(3):625–632.
  25. Wu M, Chen F, Liu Y. Effect of ceramic particle size on mechanical performance of magnesium-based composites. Mater Sci Eng A. 2021;800:140339.
  26. Verma A, Singh RK. A comparative study on mechanical behavior of AZ91D Mg composite with B4C and SiC reinforcements. J Compos Mater. 2022;56(7):1013–1023.
  27. Chen W, Liu Y, Zhou Z, et al. Enhancing corrosion resistance of Mg-Zn composites via boron nitride nanoparticle reinforcement. Mater Chem Phys. 2023;295:127061.
  28. Palaniappan S, Venkatraman B. Strengthening mechanisms in Mg composites reinforced with nano-ceramic reinforcements: A review. Trans Nonferrous Met Soc China. 2020;30(5):1205–1216.
  29. Zhang L, Sun M, Zhang Y. Microstructure and mechanical properties of Mg/SiC nanocomposites fabricated by squeeze casting. Mater Sci Eng A. 2024;889:145727.
  30. Kumar S, Aravindan S, Narayanasamy R. Synthesis and optimization of hybrid Mg matrix composites reinforced with GNPs and TiC nanoparticles. Compos Part B Eng. 2023;241:110010.
  31. Karthik K, Ramakrishnan S, Natarajan S. Fabrication and mechanical evaluation of Mg-SiC nanocomposites using powder metallurgy. Mater Today Proc. 2022;62:3651–3656.
  32. Liu X, Zhang L, Peng Y, et al. Spark plasma sintered Mg–Al₂O₃ nanocomposites: A study on densification, mechanical properties and fracture behavior. J Alloys Compd. 2023;912:165732.
  33. Zhao L, Ma J, Wang H. Additive manufacturing of Mg alloys: Challenges, opportunities and recent advances. Addit Manuf. 2023;59:103273.
  34. Singh H, Reddy AR, Das S. Influence of ceramic reinforcement on the corrosion behaviour of Mg-based composites: A review. Corros Sci. 2022;197:110002.
