Affect of Finite Element Modelling on Static Behavior of Underwater Shell

Year : 2025 | Volume : 13 | Special Issue 02 | Page : 154 163
    By

    Jayanth Datta Thota,

  • Navaneeth Manikonda,

  • Venkateswararao Mendol,

  • Balakrishna Murthy Vallabhaneni,

  1. UG Student, Department of Mechanical Engineering, V. R. Siddhartha Engineering College, Siddhartha Academy of Higher Education (Deemed to be University), Vijayawada, Andhra Pradesh, India
  2. UG Student, Department of Mechanical Engineering, V. R. Siddhartha Engineering College, Siddhartha Academy of Higher Education (Deemed to be University), Vijayawada, Andhra Pradesh, India
  3. UG Student, Department of Mechanical Engineering, V. R. Siddhartha Engineering College, Siddhartha Academy of Higher Education (Deemed to be University), Vijayawada, Andhra Pradesh, India
  4. Professor, Department of Mechanical Engineering, V. R. Siddhartha Engineering College, Siddhartha Academy of Higher Education (Deemed to be University), Vijayawada, Andhra Pradesh, Andhra Pradesh, India

Abstract

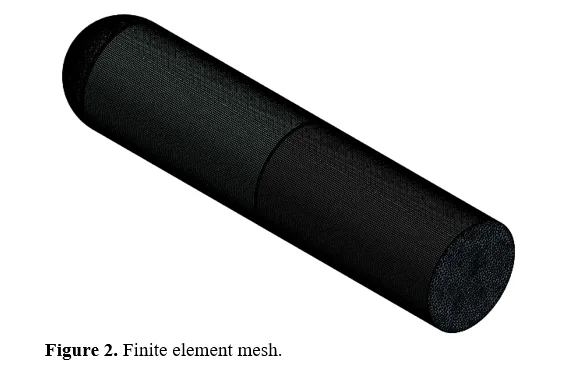

The objective of the present study is to compare and contrast different numerical models based on their mesh quality and material properties in predicting the response of an underwater shell under an external pressure of 1 MPa. Two different mesh qualities with the same element size are developed for solid geometries without and with slicing the solids at geometric discontinuities to enhance the element quality. From the static response of the structure from both the solid models, variation in deformation and stresses is observed due to changes in element quality for the same size. The observed difference of around 2.5% in the results between the converged sliced model and the corresponding non-sliced model highlights the impact of mesh quality and modeling approach on the accuracy of the simulation. Extending the analysis by replacing the aluminum shell casing with carbon-epoxy composite (CFRP) introduces an additional layer of complexity due to the material properties and behavior of CFRP compared to aluminum. The comparison between the results obtained from the sliced model with CFRP and aluminum shell casings will provide insights into how the change in a material affects the structural response under external pressure. The entire process is executed using ANSYS software.

Keywords: Resin, epoxy, underwater capsule, element quality, mechanical properties, solid-shell model, FEA.

[This article belongs to Special Issue under section in Journal of Polymer and Composites (jopc)]

aWQ6MTk4NTczfGZpbGVuYW1lOmM3MDRjZDEzLWZpLXBuZy53ZWJwfHNpemU6dGh1bWJuYWls
How to cite this article:
Jayanth Datta Thota, Navaneeth Manikonda, Venkateswararao Mendol, Balakrishna Murthy Vallabhaneni. Affect of Finite Element Modelling on Static Behavior of Underwater Shell. Journal of Polymer and Composites. 2025; 13(02):154-163.
How to cite this URL:
Jayanth Datta Thota, Navaneeth Manikonda, Venkateswararao Mendol, Balakrishna Murthy Vallabhaneni. Affect of Finite Element Modelling on Static Behavior of Underwater Shell. Journal of Polymer and Composites. 2025; 13(02):154-163. Available from: https://journals.stmjournals.com/jopc/article=2025/view=198584


Browse Figures

References

  1. More S, Bindhu S. Effect of Mesh Size on Finite Element Analysis of Plate Structure. International Journal of Engineering Science and Innovation Technology (IJESIT). 2015;4(3):23-30.
  2. Park J, Shontz SM. An Alternating Mesh Quality Metric Scheme for Efficient Mesh Quality Improvement. International Conference on Computational Science (ICCS); 2011 Jun 1-3; Singapore. Procedia Computer Science. Elsevier; 2011. 4:292-301.
  3. Amit N, Azim S . The Mesh Quality Significance in Finite Element Analysis. IOSR Journal of Mechanical and Civil Engineering (IOSR-JMCE). 2020;17(2):44-48.
  4. Dutt A. Effect of Mesh Size on Finite Element Analysis of Beam. Indian Journal of Medical Ethics. 2015;2:8-10.
  5. Ping H. Finite element structural analysis of cylinder head in different disassembly and assembly orders of connection bolts. Journal of Qinghai Normal University. 2011.
  6. Irfan SS, Vali SK, Sharif SI. Investigation of hybridized composite pressure vessel. In: Khelifa M, ed. ICMED Proceedings; 2021 Sep 10-12; Paris, France. E3S Web of Conferences. EDP Sciences; 2021. 309:1-5.
  7. Raut P. Impact of Mesh Quality Parameters on Elements Such as Beam, Shell and 3D Solid in Structural Analysis. International Journal of Engineering Research and Applications (IJERA). 2012;2(6):99-103.
  8. Liu Y. Choose the Best Element Size to Yield Accurate FEA Results While Reduce Fe Model’s Complexity. British Journal of Engineering and Technology. 2013;7(1):13-28.
  9. Freitag LA, Ollivier-Gooch C. Tetrahedral Mesh Improvement Using Swapping and Smoothing. International Journal for Numerical Methods in Engineering. 1998;40(21):3979-3996.
  10. Semih T, Selim T. Investigation of Static Structure Effect According to Axial Coordinates by Using Finite Element Method in Ansys Workbench Software of AISI 310 Austenitic Stainless Cylindrical Model Steel. International Journal of Scientific and Engineering Research. 2018;2:65-70.
