Comparison of High and Low Temperature Properties of Dual Modified Asphalt Binders with Polyphosphoric Acid and Polymer Modified Bitumen using Rheological Tests

Year : 2025 | Volume : 13 | Issue : 02 | Page : 23 34
    By

    Govind Goud Kotha,

  • P. Sravana,

  1. PhD Scholar, Civil Engineering Department, JNTU Hyderabad, Telangana, India
  2. Professor, Civil Engineering Department, JNTU Hyderabad, Telangana, India

Abstract

The main objective of this study was to investigate the properties of asphalt binder mixtures at both high and low temperatures. To achieve this, two types of admixtures were selected and combined, resulting in a technology known as dual modified asphalt binders. Extreme temperatures during summer and winter can lead to significant issues such as cracking and rutting in asphalt binder pavement. In order to address these problems, a comprehensive investigation was conducted using PPA (Polyphosphoric Acid) and PMB40 (Polymer Modified Bitumen 40) To analyze the impact of these admixtures, asphalt concrete mixtures were prepared with varying dosages. For PPA, dosages of 0.5%, 1.0%, 1.5%, and 2% by weight of binder were used, while for Polymer Modified Bitumen40, dosages of 10%, 20%, 30%, 40%, and 50% by weight of binder were employed to reach the optimum content of VG 30 + PPA. The study also involved conducting rheological tests on the asphalt concrete mixtures, including the optimum contents of VG30, PPA mix, and the dual mix asphalt. These tests helped to demonstrate the superior performance of the dual modified asphalt binders in both high and low temperature conditions, effectively addressing the issues of cracking and rutting in asphalt pavement.

Keywords: Polymer Modified Bitumen, PPA, Dual modified, DSR, BBR.

[This article belongs to Journal of Polymer and Composites ]

How to cite this article:
Govind Goud Kotha, P. Sravana. Comparison of High and Low Temperature Properties of Dual Modified Asphalt Binders with Polyphosphoric Acid and Polymer Modified Bitumen using Rheological Tests. Journal of Polymer and Composites. 2025; 13(02):23-34.
How to cite this URL:
Govind Goud Kotha, P. Sravana. Comparison of High and Low Temperature Properties of Dual Modified Asphalt Binders with Polyphosphoric Acid and Polymer Modified Bitumen using Rheological Tests. Journal of Polymer and Composites. 2025; 13(02):23-34. Available from: https://journals.stmjournals.com/jopc/article=2025/view=195447

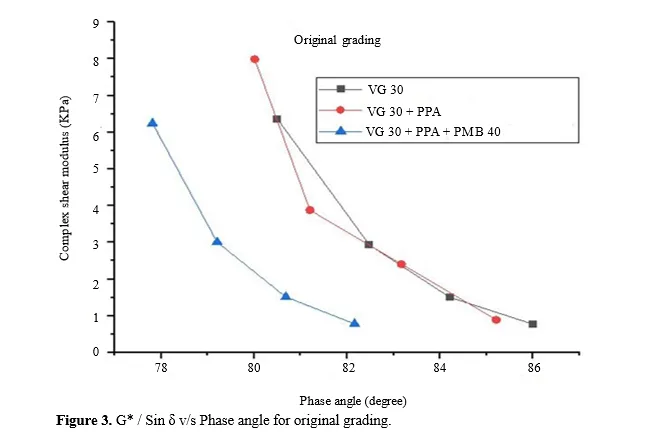

Browse Figures

References

  1. Chun-Hsing Ho and Pedro Romero, Asphalt Mixture Beams Used in Bending Beam Rheometer for Quality Control: Utah’s Experience, Sage journals, 2012, volume 2268, Issuse 1, 92-97p, doi.org/10.3141/2268-11.
  2. Haripriya Nekkanti, Bradley J. Putman, and Behrooz Danish, Influence of Aggregate Gradation and Nominal Maximum Aggregate Size on the Performance Properties of OGFC Mixtures, journal of Transportation Research Record, Sage journals, 2019, , volume 2673, Issuse 1, 6p, org/10.1177/0361198118821628.
  3. Chun-Hsing Ho, Pedro Romero, Using Asphalt Mixture Beams in the Bending Beam Rheometer, Road Materials and Pavement Design. Volume 12 – No. 2/2011, 293 to 314p, doi.1080/14680629.2011.9695247.
  4. Raul Velasqueza, Adam Zofkab, Mugurel Turos et al., Bending beam rheometer testing of asphalt mixtures, International Journal of Pavement Engineering, October 2011, Vol. 12, No. 5, 461–474p.
  5. Changjiang Kou, Aihong Kang, Wuhong Zhang, Methods to prepare polymer modified bitumen samples for morphological observation, Construction and Building Materials, 2015, 93-100p.
  6. F, Luccioni.B., Ruano. G., et al., “Mechanical response of fiber reinforced concrete overlays over asphalt concrete substrate: experimental results and numerical simulation. Construction and Building Materials, 2015, 1 -12p.
  7. Didier Lesueur, “The colloidal structure of bitumen: Consequences on the rheology and on the mechanisms of bitumen modification”, Advances in Colloidal and Interface Science, 2009, 42-82p.
  8. Cong, Peiliang, Xiao Wang et al., “Investigation on properties of polymer modified asphalt containing various antiaging agents”, Polymer Degradation and Stability, 2013.
  9. Dickinson, E.J. “The hardening of Middle East petroleum asphalts in pavement surfacing’s.” Proceedings of the Association of Asphalt Paving Technologists (AAPT), Vol. 49, 1980, 30-57p.
  10. Rui Guo, Tengfei Nian, Fei zhou, “ Analysis of factors that influence anti-rutting performance of asphalt pavement”, Construction and Building Materials (Elsevier) 2020, 1-12p.
  11. Zhen Fu, Yanni Dang et al., “ Laboratory investigation on the properties of asphalt mixtures modified with double-adding admixtures and sensitivity analysis” , Journal of Traffic and Transportation Engineering (English Edition) 2016, 412 – 426p.
  12. Javier Yesid Mahecha Nunez, Matheus David Inocente Domingos, Adalberto Leandro Faxina. “Susceptibility of low-density polyethylene and polyphosphoric acidmodified asphalt binders to rutting and fatigue cracking”, Construction and Building Materials, 2014, 509-514p.
  13. Fan W, Kang H, et al. “Experimental study of pavement performance of basalt fiber-modified asphalt mixture”, Journal of Southeast University (English Edition) 26 (4),2010, 614-617p.
  14. Attaelmanan, M. Feng et al., “Laboratory evaluation of HMA with high density polyethylene as a modifier”, Construction and Building Materials 25 (5), 2011, 2764-2770p.
  15. Ferrotti, G., Pasquini, E., Canestrari, F., “Experimental characterization of high-performance fiber-reinforced cold mix asphalt mixtures”, Construction and Building Materials, 2014, 57, 117 – 125p.
  16. Chen . H ., Xu.Q., “Experimental study of fibers in stabilizing and reinforcing asphalt binder”, Fuel 89, 2010, 1616–1622p.
Regular Issue Subscription Original Research
Volume 13
Issue 02
Received 15/07/2024
Accepted 01/10/2024
Published 17/01/2025
Publication Time 186 Days
