Eco-Friendly Tri-Layer Hybrid Composites: A Sustainable Approach to Polymer Matrix Materials

Open Access

Year : 2024 | Volume : 12 | Special Issue 06 | Page : 195 205
    By

    Chandramohan D.,

  • N. Punitha,

  • Gowtham M.,

  • S.C. Boobalan,

  • B. Murali,

  • K. Karthik,

  1. Professor, Department of Mechanical Engineering, St. Peter’s Institute of Higher Education and Research, Chennai, Tamil Nadu, India
  2. Associate Professor, Department of Physics, St. Joseph College of Engineering, Chennai, Tamil Nadu, India
  3. Assistant Professor, Department of Electrical and Electronics Engineering, Karpagam Institute of Technology, Coimbatore, Tamil Nadu, India
  4. Assistant Professor, Department of Civil Engineering, Sri Krishna College of Engineering and Technology, Coimbatore, Tamil Nadu, India
  5. Assistant Professor, Department of Mechanical Engineering, Vel Tech Rangarajan Dr. Sagunthala R&D Institute of Science and Technology, Chennai, Tamil Nadu, India
  6. Assistant Professor, Department of Mechanical Engineering, Vel Tech Rangarajan Dr. Sagunthala R&D Institute of Science and Technology, Chennai, Tamil Nadu, India

Abstract

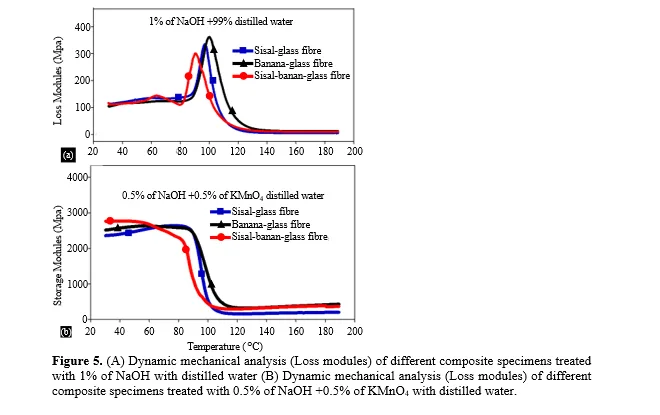

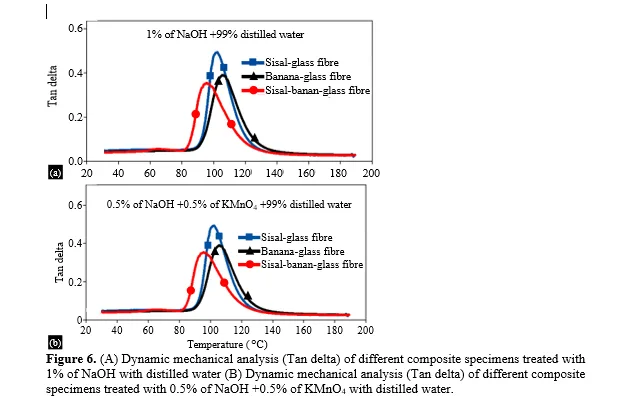

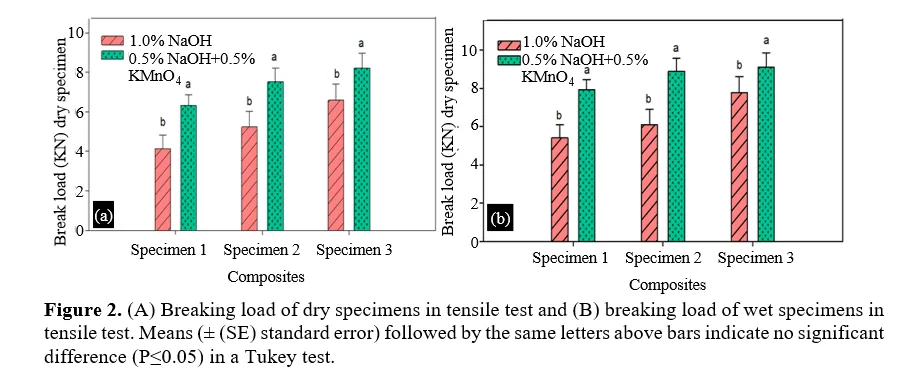

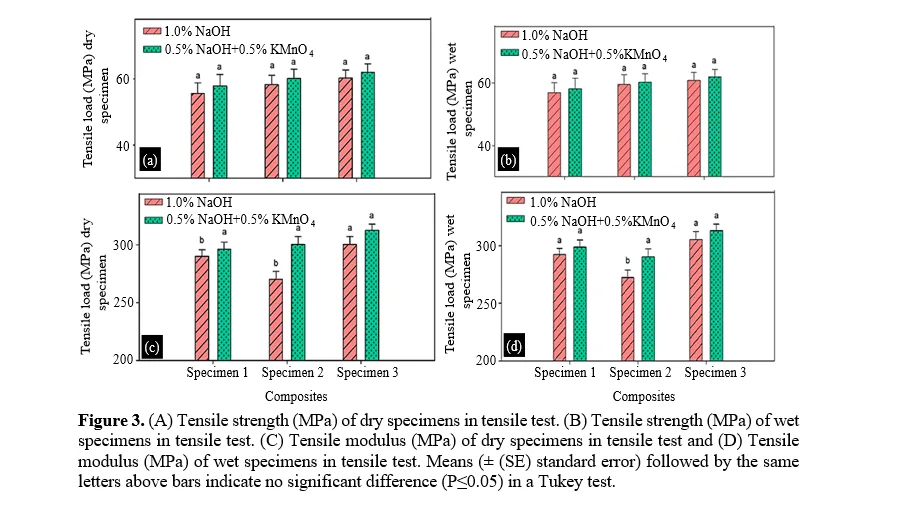

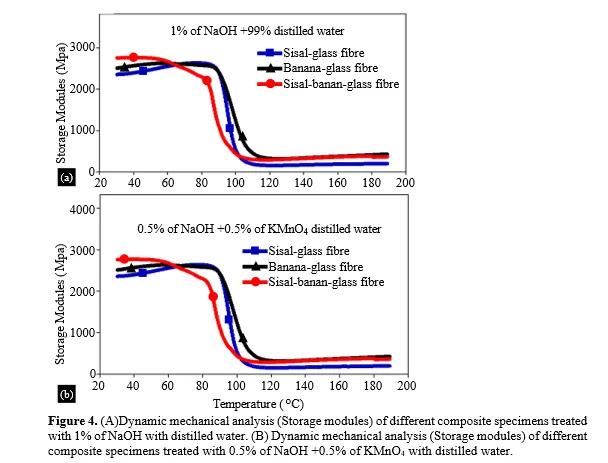

In the current study, we explored the use of environmentally friendly natural fibers such as sisal, banana, and kevlar. These fibers were fabricated by hand lay-up technique, and their impact on tensile and dynamic properties was evaluated according to ASTM standards. The assessment was conducted under both dry and wet conditions, considering two different chemical dosage parameters for comparison. Additionally, the tri-layer fibers underwent two separate chemical treatments using 1% NaOH solution in distilled water and 0.5% NaOH + 0.5% KMnO4 solution in distilled water respectively. A solution was made, and the fibers were then dried under normal lighting for three to four hours before being taken out and immersed in the aforementioned prepared solution. The internal chemical composition and physical properties of the damaged surfaces were evaluated through the use of Scanning Electron Microscope (SEM) investigation. Additionally, the DMA showed that the chosen fibers of sisal-banana-kevlar fibers treated with 1% NaOH solution in distilled water and 0.5% NaOH + 0.5% KMnO4 solution in distilled water had good viscoelastic qualities. The tri-layer fiber made of sisal, banana, and kevlar that has been chemically treated (0.5% NaOH, 0.5% KMnO4 solution in distilled water) has exceptional mechanical qualities, according to the results.

Keywords: Hybrid Composite; Mechanical; Dynamic; Sisal; banana; reinforced; eco-friendly composite.

[This article belongs to Special Issue under section in Journal of Polymer and Composites (jopc)]

aWQ6MTg2NzE1fGZpbGVuYW1lOjA1YzhhYjBjLWZpLXBuZy53ZWJwfHNpemU6dGh1bWJuYWls
How to cite this article:
Chandramohan D., N. Punitha, Gowtham M., S.C. Boobalan, B. Murali, K. Karthik. Eco-Friendly Tri-Layer Hybrid Composites: A Sustainable Approach to Polymer Matrix Materials. Journal of Polymer and Composites. 2024; 12(06):195-205.
How to cite this URL:
Chandramohan D., N. Punitha, Gowtham M., S.C. Boobalan, B. Murali, K. Karthik. Eco-Friendly Tri-Layer Hybrid Composites: A Sustainable Approach to Polymer Matrix Materials. Journal of Polymer and Composites. 2024; 12(06):195-205. Available from: https://journals.stmjournals.com/jopc/article=2024/view=186748


Browse Figures

References

  1. Chandramohan, L. Ravikumar, C. Sivakandhan, G. Murali, A. Senthilathiban, Review on tribological performance of natural fibre-reinforced polymer composites, J. Bio. Tribo-Corrosion. 4 (2018) 55.
  2. Chandramohan, A.J.P. Kumar, Fibre reinforced composites: a promising material for artificial limp, Data-Enabled Discov. Appl. (2017) 1: 9.
  3. Che Me, R. Ibrahim, P. Tahir, Natural based biocomposite material for prosthetic socket fabrication. Int. J. Sustain. Trop. Des. Res. Pract. Alma Cipta 5(2012) 27-33.
  4. La Mantia, M. Morreale, Green composites: A brief review, Composites Part A. 42 (2011) 579-588.
  5. Banu Murali, Bindu Madhavan Vijaya Ramnath, Devaraj Rajamani, Emad Abouel Nasr, Antonello Astarita, Hussein Mohamed, Experimental Investigations on Dry Sliding Wear Behaviour of Kevlar and Natural Fiber‐Reinforced Hybrid Composites through an RSM–GRA Hybrid Approach, Materials, 15 (3)(2022), 1-16.
  6. H. Muller, A. Krobjilowski, New Discovery in the Properties of Composite Reinforced with Natural Fibers, Journal of Industrial Textiles, 33 (2003) 111-130.
  7. Murali Banu, Vijaya Ramnath Bindu Madhavan., DhanashekarManickam, Chandramohan Devarajan. Experimental Investigation on stacking Sequence of Kevlar and Natural Fibres/Epoxy Polymer Composites, Polimeros: Ciencia e Tecnologia, 31(1) (2021), 1-9,
  8. Murali, P.Yogesh, NK.Karthickeyan, D.Chandramohan, Multi-Potency of Botanicals (Flax, Hemp and Jute Fibers) As Composite Materials and Their Medicinal Properties: A Review, Materials Today: Proceedings. 62(2022): 1839-1843,
  9. Kumar, T. Naresh, B. Murali, and J. Arulmani. Machining characteristics of natural fiber particle reinforced polymer composite material using artificial neural network. International Journal of Innovative Technology and Exploring Engineering 8, no. 9 (2019): 3350-3354.
  10. Daiane-Romanzini, Alessandra Lavoratti and L. Heitor, Influence of fibre content on the mechanical and dynamic mechanical properties of glass/ramie polymer composites. Materials and Design. 47 (2013) 9–15.
  11. Murali, B., K. Karthik, Sarange Shreepad Marotrao, G. Laxmaiah, Ajay Singh Yadav, I. S. N. V. R. Prasanth, and Mohamed Abbas. Mechanical and dynamic mechanical properties of hybrid kevlar/natural fiber composites. Materials Research Express 10, no. 10 (2023): 105305
  12. Silvio Leonardo Valença, Sandro Griza. Evaluation of the mechanical behavior of epoxy composite reinforced with Kevlar plain fabric and glass/kevlar hybrid fabric. Composites: Part B. 70(2015), 1–8.
  13. Ramesh, K. Palanikumar, K. Hemachandra Reddy. Mechanical property evaluation of sisal–jute–glass fibre reinforced polyester composites. Composites: Part B. 48(2013)1–9.
  14. Murali, B., and J. Nagarani. Design and fabrication of construction helmet by using hybrid composite material. International Conference on Energy Efficient Technologies for Sustainability, pp. 145-147(2013), IEEE,
  15. Cicala G, Cristaldi G, Recca G, Ziegmann G, El-Sabbagh A, Dickert M, Properties and performances of various hybrid glass/natural fibre composites for curved pipes. Materials and Design. 30 (2009), 2538–42.
  16. Venkateshwaran N, ElayaPerumal A, Alavudeen A, Thiruchitrambalam M. Mechanical and water absorption behavior of banana/sisal reinforced hybrid composites. Materials and Design. 32, (2011) 4017–21.
  17. Chandramohan, A. John Presin Kumar, Experimental data on the properties of natural fibre particle reinforced polymer composite material.Data in Brief. 13 (2017) 460-468.
  18. Chandramohan, K. Marimuthu, Characterization of natural fibres and their application in bone grafting substitutes. ActaBioengBiomech. 13(2011) 77-84.
  19. Saba, M. T. Paridah, K. Abdan and N. A. Ibrahim, Dynamic mechanical properties of oil palm nano filler/kenaf/epoxyhybrid nanocomposites. Constr. Build. Mater., 124, 133 (2016).
  20. Karthik, K., and A. Manimaran. Wear behaviour of ceramic particle reinforced hybrid polymer matrix composites. International Journal of Ambient Energy 41, no. 14 (2020): 1608-1612.
  21. Karthik, Krishnasamy, DevarajRajamani, ElumalaiPerumalVenkatesan, Mohamed Iqbal Shajahan, Ali A. Rajhi, Abdul Aabid, MuneerBaig, and Bahaa Saleh. Experimental Investigation of the Mechanical Properties of Carbon/Basalt/SiC Nanoparticle/Polyester Hybrid Composite Materials. Crystals 13, no. 3 (2023): 415.
  22. Ramesh, Velumayil, KrishnasamyKarthik, Robert Cep, and MuniyandyElangovan. Influence of Stacking Sequence on Mechanical Properties of Basalt/Ramie Biodegradable Hybrid Polymer Composites. Polymers 15, no. 4 (2023): 985.
  23. Karthik, Krishnasamy, JayaveluUdaya Prakash, Joseph SelviBinoj, and Bright BrailsonMansingh. Effect of stacking sequence and silicon carbide nanoparticles on properties of carbon/glass/Kevlar fiber reinforced hybrid polymer composites. Polymer Composites 43, no. 9 (2022): 6096-6105.
  24. Rajamani, D., E. Balasubramanian, AimanZiout, and Mohammed Alkahtani. Synergistic effect of r-GO on the mechanical, microstructural and high velocity impact behaviour of synthetic fibre reinforced NiTi intermetallic laminates. Journal of Materials Research and Technology (2023).
  25. Kandan A, Krishnasamy K, Suyambulingam I, Siengchin S. Valorization of Jatropha curcas plant leaves for Bioplasticizer: synthesis and comprehensive characterization for futuristic applications. Journal of Polymer Research. 31(8) (2024):240.
  26. Subramanian K, Krishnasamy K, Suyambulingam I, Siengchin S. Synthesis and characterization of biomass-based microcrystalline cellulose extracted from Cyperus rotundus plant leaves. Biomass Conversion and Biorefinery. May 21(2024)1-5.
  27. Karthik K, Ramesh V, Kolappan S, Arunkumar K, Udayaprakash J, Rameshkumar R. Experimental investigation on hybrid fibre reinforced polymer epoxy LY556 composites by vacuum bag molding. Materials Today: Proceedings. 62 (2022):714-20.
  28. Karthik K, Rajamani D, Raja T, Subramani K. Experimental investigation on the mechanical properties of Carbon/Kevlar fibre reinforced epoxy LY556 composites. Materials Today: Proceedings. 52 (2022):668-74.
Special Issue Open Access Original Research
Volume 12
Special Issue 06
Received 26/03/2024
Accepted 26/09/2024
Published 08/10/2024
