Parametric optimization of residual stress of TiO2 composite coating

Open Access

Year : 2024 | Volume :12 | Issue : 02 | Page : 295-301

Bhuwan Khare,


Ratnesh Kumar Sharma,

  1. Research Scholar Department of Mechanical Engineering, Poornima College of Engineering Rajasthan India
  2. Associate Professor Department of Mechanical Engineering, Poornima College of Engineering Rajasthan India
  3. Associate Professor Department of Mechanical Engineering, Poornima College of Engineering Rajasthan India

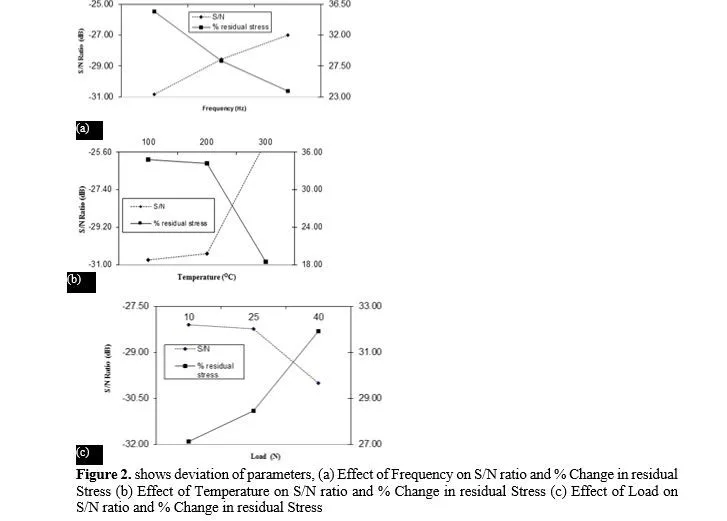

The primary objective was to develop a composite coating by utilizing the HVOF thermal spray technique and including TiO2. The substrate was covered with a high-quality composite layer utilizing the HVOF coating process. The TiO2-based powder and carbon powder were initially combined in the mixer for deposition. The composite powders were applied via an HVOF torch, namely the PT F4 model. The firearm frequently produces a high-speed flow of extremely hot air. The Hybrid composite coating has a thickness ranging from 350 to 450µm. The ultimate aim was to improve residual stresses by applying the Taguchi strategy. An ANOVA analysis was employed to assess the statistical significance of the process components in the composite coating based on TiO2. According to the experimental results, temperature has the highest percentage influence (64.19%) on the change in residual stress, trailed by (21.82%) frequency and (6.31%) load. The expected optimal range is CICE : 7.28 < µ < 13.8 while the expected mean range for CIPOP : 7.24 < µ < 12.24. Three confirmation tests were undertaken to compute and predict the optimal scenario. The process parameters are established as follows: test 3 of frequency (A3) is configured at 27 Hz, test 3 of temperature (B3) is configured at 375oC, and test 1 of load (C1) is configured at 20N.

Keywords: Residual stress, Taguchi, Composite coating, ANOVA, HVOF thermal Spray, TiO2 Coating.

[This article belongs to Journal of Polymer and Composites(jopc)]

How to cite this article: Bhuwan Khare, Yashpal, Ratnesh Kumar Sharma. Parametric optimization of residual stress of TiO2 composite coating. Journal of Polymer and Composites. 2024; 12(02):295-301.
How to cite this URL: Bhuwan Khare, Yashpal, Ratnesh Kumar Sharma. Parametric optimization of residual stress of TiO2 composite coating. Journal of Polymer and Composites. 2024; 12(02):295-301. Available from:

Full Text PDF Download

Browse Figures


  1. Directive EU. 30/EC: Council Directive relating to limit values for sulphur dioxide, nitrogen dioxide and oxides of nitrogen, particulate matter and lead in ambient air. The Council of the European Union. 1999.
  2. Oil Pollution Prevention and Response; Non-Transportation-Related Facilities, Part III; Final Rule. 30.06.2000, 40 CFR Part 112. Federal Register Vol. 65, No. 127, Rules and Regulations.
  3. Shahmohamadi H, Mohammadpour M, Rahmani R, Rahnejat H, Garner CP, Howell-Smith S. On the boundary conditions in multi-phase flow through the piston ring-cylinder liner conjunction. Tribology International. 2015 Oct 1;90:164-74.
  4. Kapsiz M, Durat M, Ficici F. Friction and wear studies between cylinder liner and piston ring pair using Taguchi design method. Advances in Engineering Software. 2011 Aug 1;42(8):595-603.
  5. Yan J, He Z, Wang Y, Qiu J, Wang Y. Microstructure and wear resistance of plasma-sprayed molybdenum coating reinforced by MoSi 2 particles. Journal of Thermal Spray Technology. 2016 Oct;25:1322-9.
  6. Matikainen V, Bolelli G, Koivuluoto H, Sassatelli P, Lusvarghi L, Vuoristo P. Sliding wear behaviour of HVOF and HVAF sprayed Cr3C2-based coatings. Wear. 2017 Oct 15;388:57-71.
  7. Zhou W, Zhou K, Deng C, Zeng K, Li Y. Hot corrosion behavior of HVOF-sprayed Cr3C2-WC-NiCoCrMo coating. Ceramics International. 2017 Aug 15;43(12):9390-400.
  8. Pandey SM, Murtaza Q, Walia RS. Study of dry wear behavior and morphological characteristic of 60% Mo-20% NiCr-10% CrC-10% Mo+ Fe based alloy coating by atmospheric plasma spray technique. Advances in Materials and Processing Technologies. 2017 Jul 3;3(3):393-406.
  9. Liu Z, Hua M. Wear transitions and mechanisms in lubricated sliding of a molybdenum coating. Tribology international. 1999 Sep 1;32(9):499-506.
  10. Obert P, Müller T, Füßer HJ, Bartel D. The influence of oil supply and cylinder liner temperature on friction, wear and scuffing behavior of piston ring cylinder liner contacts–A new model test. Tribology International. 2016 Feb 1;94:306-14.
  11. Liu XB, Liu HQ, Liu YF, He XM, Sun CF, Wang MD, Yang HB, Qi LH. Effects of temperature and normal load on tribological behavior of nickel-based high temperature self-lubricating wear-resistant composite coating. Composites Part B: Engineering. 2013 Oct 1;53:347-54.
  12. Hong S, Wu Y, Wang B, Zhang J, Zheng Y, Qiao L. The effect of temperature on the dry sliding wear behavior of HVOF sprayed nanostructured WC-CoCr coatings. Ceramics International. 2017 Jan 1;43(1):458-62.
  13. Priyan MS, Hariharan P. Wear and corrosion resistance of Fe based coatings by HVOF sprayed on gray cast-iron for automotive application. Tribology in Industry. 2014;36(4):394.
  14. Tyagi A, Walia RS, Murtaza Q, Pandey SM, Tyagi PK, Bajaj B. A critical review of diamond like carbon coating for wear resistance applications. International journal of refractory metals and hard materials. 2019 Jan 1;78:107-22.
  15. Tyagi A, Walia RS, Murtaza Q. Tribological behavior of temperature dependent environment friendly thermal CVD diamond coating. Diamond and Related Materials. 2019 Jun 1;96:148-59.
  16. Skordaris G, Bouzakis KD, Charalampous P, Kotsanis T, Bouzakis E, Lemmer O. Effect of structure and residual stresses of diamond coated cemented carbide tools on the film adhesion and developed wear mechanisms in milling. CIRP Annals. 2016 Jan 1;65(1):101-4.
  17. Bouzakis KD, Skordaris G, Bouzakis E, Charalampous P, Kotsanis T, Tasoulas D, Kombogiannis S, Lemmer O. Effect of the interface fatigue strength of NCD coated hardmetal inserts on their cutting performance in milling. Diamond and Related Materials. 2015 Oct 1;59:80-9.
  18. Picas JA, Forn A, Matthäus G. HVOF coatings as an alternative to hard chrome for pistons and valves. Wear. 2006 Sep 20;261(5-6):477-84.
  19. Tyagi A, Pandey SM, Walia RS, Murtaza Q. Characterization and parametric optimization of tribological properties of Mo blend composite coating. Materials Research Express. 2019 May 17;6(8):086428.
  20. Goyal T, Walia RS, Sidhu TS. Study of coating thickness of cold spray process using Taguchi method. Materials and Manufacturing Processes. 2012 Feb 1;27(2):185-92.
  21. Walia RS, Shan HS, Kumar P. Parametric optimization of centrifugal force-assisted abrasive flow machining (CFAAFM) by the Taguchi method. Materials and manufacturing processes. 2006 Jul 1;21(4):375-82.
  22. Brar BS, Walia RS, Singh VP. Electrochemical-aided abrasive flow machining (ECA 2 FM) process: a hybrid machining process. The International Journal of Advanced Manufacturing Technology. 2015 Jul;79:329-42.

23.Goyal T, Walia RS, Sidhu TS. Effect of parameters on coating density for cold spray process. Materials and Manufacturing Processes. 2012 Feb 1;27(2):193-200
