Investigation of Microstructural and Tensile behaviour of stir-casted Al5052-based Composites with nano-reinforcements

Open Access

Year : 2024 | Volume : | : | Page : –
By

Saumy Agarwal

Satnam Singh

  1. Research scholar Department of Mechanical Engineering, National Institute of Technology Kurukshetra Haryana India
  2. Assistant Professor Department of Mechanical Engineering, National Institute of Technology Kurukshetra Haryana India

Abstract

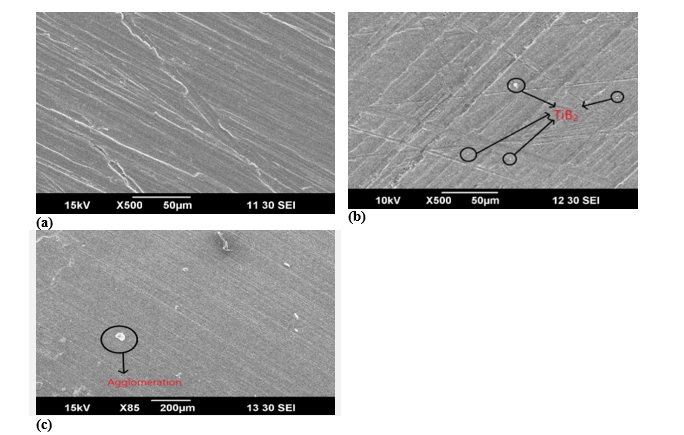

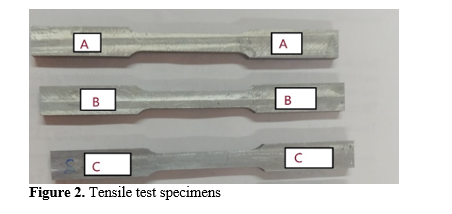

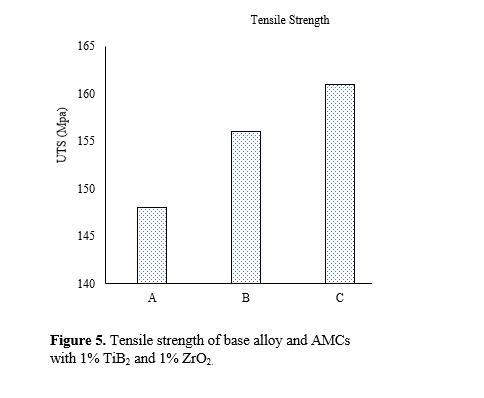

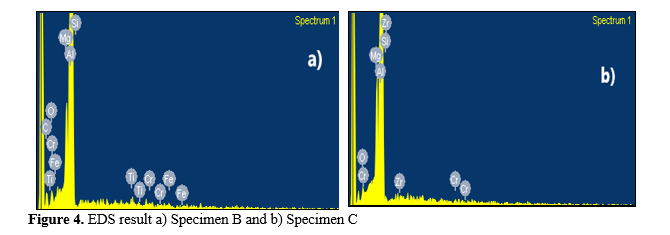

Aluminium-based composites have gained popularity in the aviation, automotive, and marine sectors as a result of their exceptional strength-to-weight ratio and also due to resistance to wear and corrosion. The current investigation involves the examination of the microstructural and tensile behaviour of stir-casted Al5052-based composites. The nanoparticles of 1% titanium diboride and 1% zirconia were added as reinforcement materials. To better understand the microstructure of the composite specimens, scanning electron microscopy and energy dispersive investigation were used. The reinforcement particles distributions in the Al5052 matrix were found to be rather uniform. The tensile test was performed at ambient temperature and with a crosshead rate of 0.5 mm/min. The tensile strength of composites was improved by 9.05% and elongation % was reduced to 6.75% upon adding the reinforcement particles. The change in the strength and elongation % was attributed to the increase in the dislocation density as a result of adding hard and brittle nano-particles

Keywords: Aluminium matrix composites, stir casting, reinforcements, mechanical properties, titanium diboride, zirconia

How to cite this article: Saumy Agarwal, Satnam Singh. Investigation of Microstructural and Tensile behaviour of stir-casted Al5052-based Composites with nano-reinforcements. Journal of Polymer and Composites. 2024; ():-.
How to cite this URL: Saumy Agarwal, Satnam Singh. Investigation of Microstructural and Tensile behaviour of stir-casted Al5052-based Composites with nano-reinforcements. Journal of Polymer and Composites. 2024; ():-. Available from: https://journals.stmjournals.com/jopc/article=2024/view=146100

Full Text PDF Download

References

  1. Shyamlal C, Rajesh S, Suresh Kumar S. A comprehensive review on the effect of precipitation on mechanical properties of friction stir welded aluminium alloys. Proceedings of the Institution of Mechanical Engineers, Part C: Journal of Mechanical Engineering Science. 2021;235(22):6345–56p.
  2. Shyamlal C, Rajesh S, Saravana Sankar S, et al. Mechanical property and microstructural evaluation of friction stir welded AA8090 T87 aluminium alloy. Proceedings of the Institution of Mechanical Engineers, Part E: Journal of Process Mechanical Engineering. 2023;237(6):2449–56p.
  3. Kumar D, Angra S, Singh S. Mechanical Properties and Wear Behaviour of Stir Cast Aluminum Metal Matrix Composite: A Review. International Journal of Engineering, Transactions A: Basics. 2022; 35(4):794–801p.
  4. Casati R, Vedani M. Metal matrix composites reinforced by Nano-Particles—A review. Metals. 2014;4(1):65–83p.
  5. James J, Annamalai AR, Muthuchamy A, et al. Effect of wettability and uniform distribution of reinforcement particle on mechanical property (Tensile) in aluminum metal matrix composite—A review. Nanomaterials. 2021; 11(9):2230p.
  6. Agarwal S, Angra S, Singh S. A review on the mechanical behaviour of aluminium matrix composites under high strain rate loading. Materials Physics and Mechanics. 2023; 51(6): 1-13. DOI: 10.18149/MPM.5162023_1.
  7. Chak V, Chattopadhyay H, Dora TL. A review on fabrication methods, reinforcements and mechanical properties of aluminum matrix composites. Journal of Manufacturing Processes . 2020; 56(May 2019):1059–74p. https://doi.org/10.1016/j.jmapro.2020.05.042
  8. Kala H, Mer KKS, Kumar S. A Review on Mechanical and Tribological Behaviors of Stir Cast Aluminum Matrix Composites. Procedia Materials Science. 2014; 6(ICMPC):1951–60p. http://dx.doi.org/10.1016/j.mspro.2014.07.229
  9. Muraliraja R, Arunachalam R, Al-Fori I, et al. Development of alumina reinforced aluminum metal matrix composite with enhanced compressive strength through squeeze casting process. Proceedings of the Institution of Mechanical Engineers, Part L: Journal of Materials: Design and Applications. 2019; 233(3):307–14p.
  10. Mohankumar V, Kapilan S, Karthik A, et al. A Hybrid Design of Experiment Approach in Analyzing the Electrical Discharge Machining Influence on Stir Cast Al7075/B4C Metal Matrix Composites. Metals. 2024;14(2).
  11. Baisane V, Sable Y, Dhobe M, et al. Recent development and challenges in processing of ceramics reinforced Al matrix composite through stir casting process: A Review. International Journal of Engineering and Applied Sciences (IJEAS). 2015; 2(10):11–16p. https://www.semanticscholar.org/paper/Recent-development-and-challenges-in-processing-of/d9bc249736bb4745a962134d3173ae83cd858803
  12. Baradeswaran A, Elaya Perumal A. Study on mechanical and wear properties of Al 7075/Al2O 3/graphite hybrid composites. Composites Part B: Engineering. 2014; 56:464–71p. http://dx.doi.org/10.1016/j.compositesb.2013.08.013
  13. Sharma P, Paliwal K, Garg RK, et al. A study on wear behaviour of Al/6101/graphite composites. Journal of Asian Ceramic Societies. 2017; 5(1):42–48p. http://dx.doi.org/10.1016/j.jascer.2016.12.007
  14. Jacob Dhas DSE, Velmurugan C, Wins KLD, et al. Effect of tungsten carbide, silicon carbide and graphite particulates on the mechanical and microstructural characteristics of AA 5052 hybrid composites. Ceramics International. 2019; 45(1):614–21p. https://doi.org/10.1016/j.ceramint.2018.09.216
  15. Kiran K, Ravikumar K, Balaji VSS. Materials Today : Proceedings Effect of B4C and graphite particulates on the mechanical and micro structural characteristics of AA 5052 hybrid composites. Materials Today: Proceedings. 2020; 27(3):2935–40p. https://doi.org/10.1016/j.matpr.2020.03.519
  16. Dolatkhah A, Golbabaei P, Besharati Givi MK, et al. Investigating effects of process parameters on microstructural and mechanical properties of Al5052/SiC metal matrix composite fabricated via friction stir processing. Materials and Design. 2012; 37:458–64p. http://dx.doi.org/10.1016/j.matdes.2011.09.035
  17. Patel M, Sahu SK, Singh MK. Fabrication and Investigation of Mechanical Properties of SiC Particulate Reinforced AA5052 Metal Matrix Composite. Journal of Modern Materials. 2020; 7(1):26–36p.
  18. Bharti S, Ghetiya ND, Dutta V. Investigating microhardness and wear behavior of Al5052/ZrO2 surface composite produced by friction stir processing. Materials Today: Proceedings. 2021; 44:52–57p. https://doi.org/10.1016/j.matpr.2020.06.318
  19. Venkateshwar Reddy P, Suresh Kumar G, Satish Kumar V, et al. Effect of Substituting SiC in Varying Proportions for TiC in Al-5052/TiC/SiC Hybrid MMC. Journal of Bio- and Tribo-Corrosion. 2020; 6(1):1–11p. https://doi.org/10.1007/s40735-019-0320-y
  20. Yuan Z, Tian W, Li F, et al. Effect of heat treatment on the interface of high-entropy alloy particles reinforced aluminum matrix composites. Journal of Alloys and Compounds. 2020; 822:153658p. https://doi.org/10.1016/j.jallcom.2020.153658
  21. Kishore P, Kumar PM, Dinesh D. Wear analysis of Al 5052 alloy with varying percentage of tungsten carbide. AIP Conference Proceedings. 2019; 2128.
  22. Pavan Venkat P, Chinnam Naidu P, Pavan Kumar LYN, et al. Effect of Al2O3 particles on mechanical, microstructural and tribological characteristics of Al5052 metal matrix composite reinforced with Si3N4 particles. Materials Today: Proceedings. 2023 Jan 1; 91:158–66p.
  23. Coyal A, Yuvaraj N, Butola R, et al. An experimental analysis of tensile, hardness and wear properties of aluminium metal matrix composite through stir casting process. SN Applied Sciences. 2020; 2(5):1–10p. https://doi.org/10.1007/s42452-020-2657-8
  24. Singh G, Goyal S. Microstructure and mechanical behavior of AA6082-T6/SiC/B4C-based aluminum hybrid composites. Particulate Science and Technology. 2018; 36(2):154–61p. http://dx.doi.org/10.1080/02726351.2016.1227410
  25. David Raja Selvam J, Robinson Smart DS, Dinaharan I. Microstructure and some mechanical properties of fly ash particulate reinforced AA6061 aluminum alloy composites prepared by compocasting. Materials and Design. 2013; 49:28–34p. http://dx.doi.org/10.1016/j.matdes.2013.01.053
  26. Kumar D, Singh S, Angra S. Dry sliding wear and microstructural behavior of stir-cast Al6061-based composite reinforced with cerium oxide and graphene nanoplatelets. Wear. 2023; 516–517p. https://doi.org/10.1016/j.wear.2022.204615
  27. Mohanavel V, Kumar SS, Mariyappan K, et al. Mechanical behavior of Al-matrix nanocomposites produced by stir casting technique. Materials Today: Proceedings. 2015; 5: 26873–77p. http://dx.doi.org/10.1016/j.matpr.2018.08.170.
  28. Kumar SD, Ravichandran M, Jeevika A, et al. Effect of ZrB2 on microstructural, mechanical and corrosion behaviour of aluminium (AA7178) alloy matrix composite prepared by the stir casting route. Ceramics International. 2021; 47: 12951–62p. http://dx.doi.org/10.1016/j.ceramint.2021.01.158.

Ahead of Print Open Access Original Research
Volume
Received March 11, 2024
Accepted April 18, 2024
Published May 14, 2024
