Perturb and Observe Maximum Power Point Tracking Technique with PID Controller for a Wind Power System

Abstract

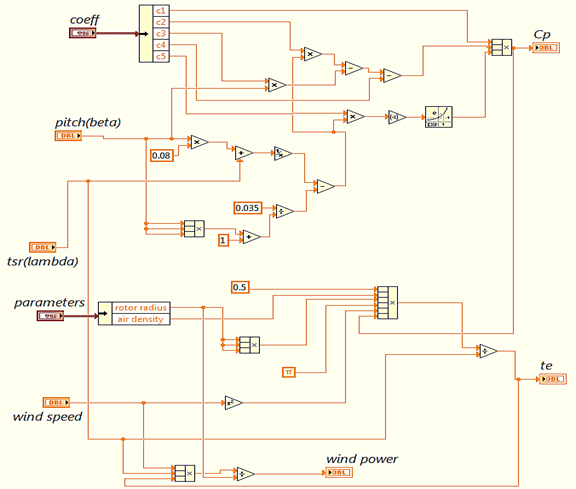

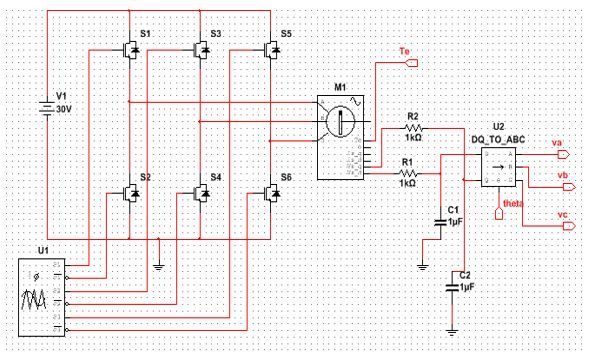

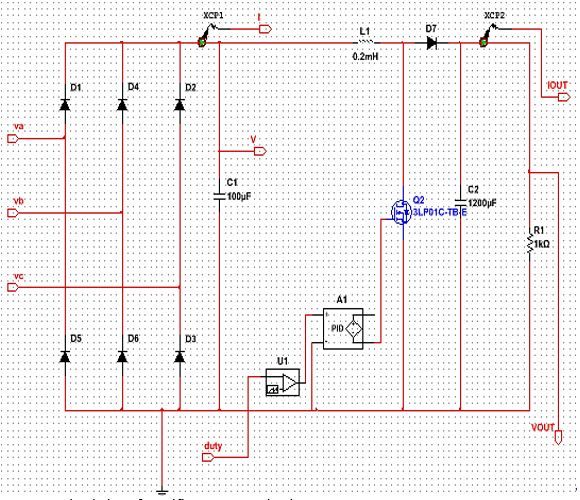

The wind power generation system has a significant growth worldwide over the past four decades. The wind power generation system has strong coupling and linear characteristics which makes it a complicated electromechanical system. The power control strategy has a higher impact on the overall performance as the wind power generation is operated at variable and random wind speed conditions. PID control is the most used control algorithm in industrial applications. PID controllers are known for their robust performance in a wide range of operating conditions and their functional simplicity which allows engineers to work in a simple manner. The efficiency of the wind power generation is improved by proposing a PID (Proportional Integral Derivative) controller based MPPT (Maximum Power Point Tracking) scheme in the LabVIEW platform. The wind turbine is modelled in accordance with the mathematical equations in LabVIEW platform. The permanent magnet synchronous generator (PMSG) and rectifier-converter system is modelled in the LabVIEW Multisim platform. The Perturb and Observe MPPT control strategy with a PID controller is introduced to the system to obtain maximum power. The simulation tests are performed under various wind speeds. The results obtained demonstrate that PID based MPPT technique is efficient to improve wind power generation.

Browse Figures

❮ ❯

References

1. Wu A, Mao J-F, Zhang An ADRC-Based Hardware-in-the-Loop System for Maximum Power Point Tracking of a Wind Power Generation System. IEEE Access. 2020; 8: 226119–226130. doi: 10.1109/ACCESS.2020.3045015.
2. Manyonge Alfred, Manyala Reccab, Onyango Frederick, Shichika Mathematical Modelling of Wind Turbine in a Wind Energy Conversion System: Power Coefficient Analysis. Appl Math Sci. 2012; 6: 4527–4536.
3. Rolan A, Luna A, Vazquez G, Aguilar D, Azevedo Modeling of a variable speed wind turbine with a Permanent Magnet Synchronous Generator. 2009 IEEE International Symposium on Industrial Electronics, Seoul, Korea (South). 2009; 734–739. doi: 10.1109/ISIE.2009.5218120, IEEE Xplore, https://ieeexplore.ieee.org/document/5218120.
4. Lazarov Vladimir, Roye Daniel, Zarkov Zahari, Spirov Analysis of DC Converters for Wind Generators. Facta Univ (NIS). 2009 Aug; 22(2): 235–244. 10.2298/FUEE0902235L.
5. Shankareppagol Lakshmi M, Hampannavar Santoshkumar, Doadamani SN. Performance Analysis of P&O and INC MPPT for WECS.2018 3rd International Conference for Convergence in Technology (I2CT) 06-08th April, Pune, India. 2018; 1–8. 1IEEE Xplore, https://ieeexplore.ieeorg/document/8529555
6. Abdel-Raheem Youssef, Mousa Hossam HH, Mohamed Essam EM. Development of self-adaptive P&O MPPT algorithm for wind generation systems with concentrated search area. Renew Energy. 2020; 154: 875– https://www.sciencedirect.com/science/article/abs/pii/S096014812030375X
7. Mohamed Lamine Frikh, Fatma Soltani, Nadia Bensiali, Nadir Boutasseta, Nadir Fergani. Fractional order PID controller design for wind turbine systems using analytical and computational tuning approaches. Comput Electr Eng. 2021 Oct; 95: 107410.
8. Jayshree Pande, Paresh Nasikkar, Ketan Kotecha, Vijayakumar Varadarajan. A Review of Maximum Power Point Tracking Algorithms for Wind Energy Conversion Systems. J Mar Sci 2021; 9(11): 1187. https://doi.org/10.3390/jmse9111187.
9. Uehara A, Pratap A, Goya T, Senjyu T, Yona A, Urasaki N, Funabashi T. A coordinated control method to smooth wind power fluctuations of a PMSG-based WECS. IEEE Trans Energy Convers. 2011 Mar 10; 26(2): 550–8.
10. Errami Y, Ouassaid M, Maaroufi M. A performance comparison of a nonlinear and a linear control for grid connected PMSG wind energy conversion system. Int J Electr Power Energy Syst. 2015 Jun 1; 68: 180–94.
