Microstructural and Mechanical responses of Al6061 alloy matrix composite reinforced with yttria particles

Open Access

Year : 2024 | Volume : | : | Page : –

Vishal Kumar

Satnam Singh

  1. Research Scholar Mechanical Engineering Department, National Institute of Technology, Kurukshetra Haryana India
  2. Assistant Professor Mechanical Engineering Department, National Institute of Technology, Kurukshetra Haryana India

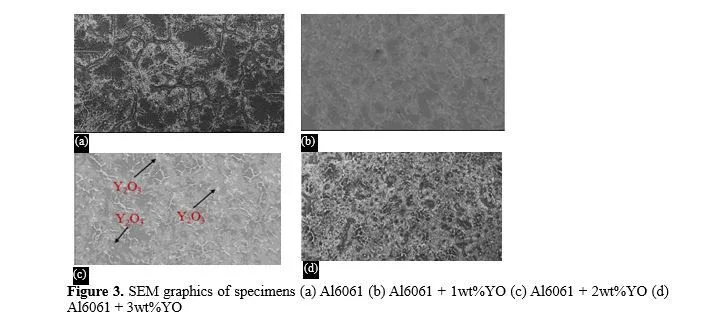

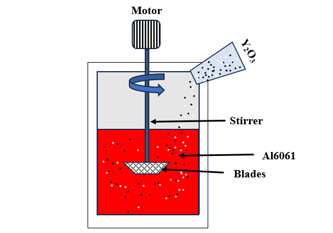

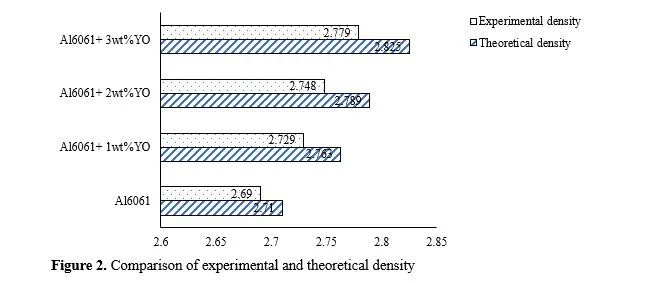

The increasing need for materials that can improve the overall performance of automotive and aerospace components has driven the development of composite materials. Aluminium Metal Matrix Composites (AMMC) have become a popular alternative due to their ability to satisfy the changing needs of industries. This study investigates the mechanical characteristics of AMMC (Aluminium Matrix Metal Composite) made using the stir casting method. The study examines the effects of different amounts of Y2O3 (yttria/YO) reinforcement, specifically at 1wt%, 2wt%, and 3wt%, when combined with aluminium alloy 6061. By conducting thorough evaluations of density, hardness, and tensile strength, it was shown that the composite containing 3wt% of yttria demonstrates superior characteristics in comparison to base aluminium. The hardness and ultimate tensile strength of composite having 3wt% of yttria is 26% and 42.2% more than the base alloy Al6061. The microstructural characteristics of the composites were meticulously examined employing Scanning Electron Microscopy (SEM). The uniform dispersion of the reinforcement within the matrix has been found. As the quantity of yttria is increased, the grain size becomes finer. The failure of composites shows the ductile to brittle fracture due to the presence of yttria particles

Keywords: Aluminum Metal Matrix Composite, yttria, hardness, tensile strength, microstructure, fractography.

How to cite this article: Vishal Kumar, Satnam Singh. Microstructural and Mechanical responses of Al6061 alloy matrix composite reinforced with yttria particles. Journal of Polymer and Composites. 2024; ():-.
How to cite this URL: Vishal Kumar, Satnam Singh. Microstructural and Mechanical responses of Al6061 alloy matrix composite reinforced with yttria particles. Journal of Polymer and Composites. 2024; ():-. Available from: https://journals.stmjournals.com/jopc/article=2024/view=146475

Full Text PDF Download


  1. Yadav A, Jain A, Verma R. Numerical Simulation of Friction Stir Welding Process to Investigate the Effect of a Conical Pin Tool with a Flat and Conical Shoulder on Heat Transfer. NanoWorld J. 2023;9(Special Issue 1):S239–42.
  2. Kumar V, Angra S, Singh S. Impact of Fly Ash on the Aluminium Metal Matrix Composites: A Review. NanoWorld J. 2023;9(Special Issue 1):S573–6.
  3. Kok M. Production and mechanical properties of Al2O3 particle-reinforced 2024 aluminium alloy composites. 2005;161:381–7.
  4. Bouaeshi WB, Li DY. Effects of Y2O3 addition on microstructure, mechanical properties, electrochemical behavior, and resistance to corrosive wear of aluminum. Tribol Int. 2007;40(2 SPEC. ISS.):188–99.
  5. Kumar Vishal, Singh Satnam A, Surjit. Influence of rare earth elements on aluminium metal matrix composites : A review. 2023;51(2):1–20.
  6. Yadav A, Jain A, Verma R. Effect of tilt angle for conical pin tool with a conical shoulder on heat transfer and material flow using numerical simulation in friction stir welding. Mater Phys Mech. 2023;51(3):126–45.
  7. Kim GH, Hong SM, Lee MK, Kim SH, Ioka I, Kim BS, et al. Effect of oxide dispersion on dendritic grain growth characteristics of cast aluminum alloy. Mater Trans. 2010;51(10):1951–7.
  8. Bhoi NK, Singh H, Pratap S, Jain PK. Aluminum Yttrium Oxide Metal Matrix Composite Synthesized by Microwave Hybrid Sintering: Processing, Microstructure and Mechanical Response. J Inorg Organomet Polym Mater. 2022; Available from: https://doi.org/10.1007/s10904-021-02195-8
  9. Kumar JR, Jayaraman M, Kumar TS, Priyadharshini GS, Kumar JS. Characterization of Y2O3 particles reinforced AA6082 aluminum matrix composites produced using friction stir processing. Mater Res Express. 2019;6(8):0–9.
  10. Mohammadpour M, Azari Khosroshahi R, Taherzadeh Mousavian R, Brabazon D. Effect of interfacial-active elements addition on the incorporation of micron-sized SiC particles in molten pure aluminum. Ceram Int. 2014;40(6):8323–32. Available from: http://dx.doi.org/10.1016/j.ceramint.2014.01.038
  11. Kumar DT, Palanisamy S, Fragassa C. A Hybrid Design of Experiment Approach in Analyzing the Al7075/B4C Metal Matrix Composites; Metals; 2024, 14, 205. https://doi.org/10.3390/met14020205.
  12. Koli KD, Agnihotri G, Purohit R. Influence of Ultrasonic Assisted Stir Casting on Mechanical Properties of Al6061-nano Al2O3 Composites. Mater Today Proc . 2015;2(4–5):3017–26. Available from: http://dx.doi.org/10.1016/j.matpr.2015.07.286
  13. Sirahbizu Yigezu B, Mahapatra MM, Jha PK. Influence of Reinforcement Type on Microstructure, Hardness, and Tensile Properties of an Aluminum Alloy Metal Matrix Composite. J Miner Mater Charact Eng. 2013;01(04):124–30.
  14. Sajjadi SA, Ezatpour HR, Torabi Parizi M. Comparison of microstructure and mechanical properties of A356 aluminum alloy/Al2O3 composites fabricated by stir and compo-casting processes. Mater Des . 2012;34:106–11. Available from: http://dx.doi.org/10.1016/j.matdes.2011.07.037
  15. PRABHU SR, SHETTIGAR AK, HERBERT MA, RAO SS. Microstructure and mechanical properties of rutile-reinforced AA6061 matrix composites produced via stir casting process. Trans Nonferrous Met Soc China . 2019;29(11):2229–36. Available from: https://www.sciencedirect.com/science/article/pii/S1003632619651526
  16. Sharma VK. A State of Art on Hybrid approaches of Abrasive Flow Machining with their applications Using Abrasive Particulates. 2019;XII(Vii):557–64.
  17. Karvanis K, Fasnakis D, Maropoulos A, Papanikolaou S. Production and mechanical properties of Al-SiC metal matrix composites. IOP Conf Ser Mater Sci Eng. 2016;161(1).
  18. Srikant, Sharma VK, Kumar V, Joshi RS, Jain S, Kumar P. A Review of Recent Research on Rare Earth Particulate Composite Materials and Structures with Their Applications. Trans Indian Inst Met . 2021;74(11):2569–81. Available from: https://doi.org/10.1007/s12666-021-02338-y
  19. Sharma VK VK, Kumar V, Joshi RS, Sharma D. Experimental analysis and characterization of SiC and RE oxides reinforced Al-6063 alloy based hybrid composites. Int J Adv Manuf Technol. 2020;108(4):1173–87.
  20. J. J. LEWANDOWSKI and C. LIU. Effects of Matrix Microstructure and Particle Distribution on Fracture of an Aluminum Metal Matrix Composite *. 1989;107:241–55.

21.       Liu P, Wang A, Xie J, Hao S. Characterization and evaluation of interface in SiC p / 2024 Al composite. 2024;25(2015):1410–8.

Ahead of Print Open Access Original Research
Received March 21, 2024
Accepted May 1, 2024
Published May 17, 2024
