Stress based topology optimization of axial tubes under impact to improve energy absorption

Open Access

Year : 2024 | Volume : | : | Page : –
By

Prashant Manvi

Fareen Nizami

Anandtheertha M R

Srikanth H V

  1. Department of Aeronautical Engineering, Nitte Meenakshi Institute of Technology, Bangalore Karnataka India
  2. Department of Aeronautical Engineering, Nitte Meenakshi Institute of Technology, Bangalore Karnataka India
  3. Department of Aerospace Engineering, RV College of engineering, Bangalore Karnataka India
  4. Department of Aeronautical Engineering, Nitte Meenakshi Institute of Technology, Bangalore Karnataka India

Abstract

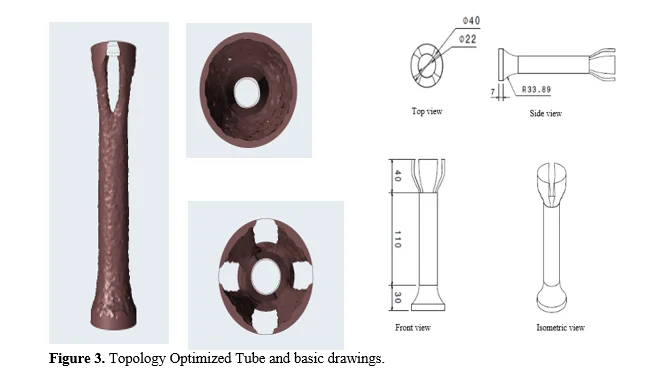

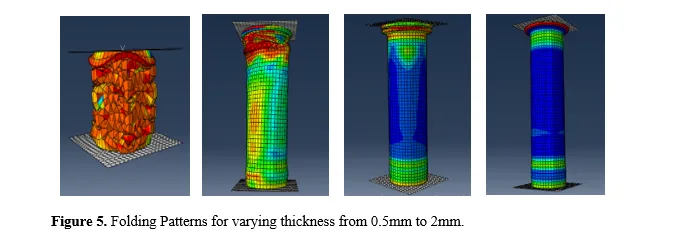

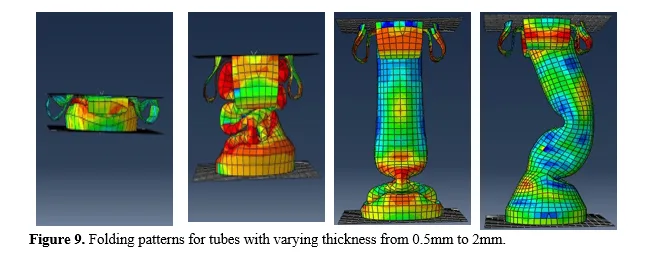

The present study is aimed at designing a stress constrained topology optimized tube to improve the specific energy absorption (SEA) and reduce the peak crushing force. The research was aimed to develop an axial tube to withstand high impact loads thus improving the crash worthiness of the structure. Crash analysis of a 3D deformable circular tube having different thickness of 0.5 mm, 1 mm, 1.5 mm and 2 mm with a constant inner diameter and length sandwiched between two square rigid planar shell plates was performed. SEA and Peak crushing force (PCF) were computed post the crash analysis. Stress based topology optimization was then carried out on a prismatic tube by varying the Factor of Safety from 1.2 to 2 in steps of 0.2 using the SIMP algorithm on a tube with the highest SEA. Crash analysis was carried out post the optimization process in a similar manner by varying the thickness. SEA and PCF were computed, and results show that the optimized tube with the thickness of 1 mm absorbs 933.53 J of energy with a SEA of 27.22 J/g when compared to the prismatic tube (945.74 J) of the same thickness with a SEA of 17.06 J/g.

Keywords: SEA- Specific Energy Absorption, EA- Energy Absorption, PCF- Peak Crushing Force, MCF- Mean Crushing Force, SIMP method- Solid Isotropic Material with Penalization method, FOS- Factor of Safety.. UAV, GPS, Autodesk flow, Inertial Measurement Unit (IMU)

How to cite this article: Prashant Manvi, Fareen Nizami, Anandtheertha M R, Srikanth H V. Stress based topology optimization of axial tubes under impact to improve energy absorption. Journal of Polymer and Composites. 2024; ():-.
How to cite this URL: Prashant Manvi, Fareen Nizami, Anandtheertha M R, Srikanth H V. Stress based topology optimization of axial tubes under impact to improve energy absorption. Journal of Polymer and Composites. 2024; ():-. Available from: https://journals.stmjournals.com/jopc/article=2024/view=145848

Full Text PDF Download

References

[1]. Huang, Xinyan, Y. M. Xie, and G. Lu. “Topology optimization of energy-absorbing structures.” International Journal of crashworthiness 12, no. 6 (2007): 663-675.

[2]. Chen, B. C., M. Zou, G. M. Liu, J. F. Song, and H. X. Wang. “Experimental study on energy absorption of bionic tubes inspired by bamboo structures under axial crushing.” International Journal of Impact Engineering 115 (2018): 48-57.

[3]. Sun, Guangyong, Hao Jiang, Jianguang Fang, Guangyao Li, and Qing Li. Crashworthiness of vertex based hierarchical honeycombs in out-of-plane impact.” Materials & Design 110 (2016): 705-719.

[4]. Zhang, Yong, Minghao Lu, Chun H. Wang, Guangyong Sun, and Guangyao Li. “Out-of-plane crashworthiness of bio-inspired self-similar regular hierarchical honeycombs.” Composite Structures 144 (2016): 1-13.

[5]. Tsang, H. H., and S. Raza. “Impact energy absorption of bio-inspired tubular sections with structural hierarchy.” Composite Structures 195 (2018): 199-210.

[6]. Hu, Dayong, Yongzhen Wang, Bin Song, Linwei Dang, and Zhiqiang Zhang. “Energy-absorption characteristics of a bionic honeycomb tubular nested structure inspired by bamboo under axial crushing.” Composites Part B: Engineering 162 (2019): 21-32.

[7]. Tarlochan, F., F. Samer, A. M. S. Hamouda, S. Ramesh, and Karam Khalid. “Design of thin wall structures for energy absorption applications: enhancement of crashworthiness due to axial and oblique impact forces.” Thin-Walled Structures 71 (2013): 7-17.

[8]. Asanjarani, A., A. Mahdian, and S. H. Dibajian. “Comparative analysis of energy absorption behavior of tapered and grooved thin-walled tubes with the various geometry of the cross section.” Mechanics of Advanced Materials and Structures (2018): 1-12.

[9]. Yamashita, Minoru, Manabu Gotoh, and Yasuhiko Sawairi. “Axial crush of hollow cylindrical structures with various polygonal cross-sections: Numerical simulation and experiment.” Journal of Materials Processing Technology 140, no. 1-3 (2003): 59-64.

[10]. Abolfathi, Mostafa, and Ali Alavi Nia. “Optimization of energy absorption properties of thin-walled tubes with combined deformation of folding and circumferential expansion under axial load.” Thin-Walled Structures 130 (2018): 57-70.

[11]. Marzbanrad, Javad, and Mohammad Reza Ebrahimi. “Multi-objective optimization of aluminum hollow tubes for vehicle crash energy absorption using a genetic algorithm and neural networks.” Thin-Walled Structures 49, no. 12 (2011): 1605-1615.

[12]. Ahmed, Naveed, Pu Xue, Muhammad Kamran, Naeem Zafar, Ammara Mustafa, and M. S. Zahran. “Investigation of the energy absorption characteristics of metallic tubes with curvy stiffeners under dynamic axial crushing.” Latin American Journal of Solids and Structures 14, no. 8 (2017): 1443-1463.

[13]. Ding, Xueshan, Zeqi Tong, Yang Liu, and Shutian Liu. “Dynamic axial crush analysis and design optimization of a square multi-cell thin-walled tube with lateral variable thickness.” International Journal of Mechanical Sciences 140 (2018): 13-26.

[14]. Bigdeli, Ali, and Mohammad Damghani Nouri. “A crushing analysis and multi-objective optimization of thin-walled five-cell structures.” Thin-Walled Structures 137 (2019): 1-18.

[15]. Luo, Yonghao, and Hualin Fan. “Energy absorbing ability of rectangular self-similar multi-cell sandwich-walled tubular structures.” Thin-Walled Structures 124 (2018): 88-97.

[16]. Xu, Xiang, Yong Zhang, Jin Wang, Feng Jiang, and Chun H. Wang. “Crashworthiness design of novel hierarchical hexagonal columns.” Composite Structures 194 (2018): 36-48.

[17]. Deng, Xiaolin, and Wangyu Liu. “Multi-objective optimization of thin-walled sandwich tubes with lateral corrugated tubes in the middle for energy absorption.” Thin-Walled Structures 137 (2019): 303-317.

[18]. Salehghaffari, S., M. Tajdari, M. Panahi, and F. Mokhtarnezhad. “Attempts to improve energy absorption characteristics of circular metal tubes subjected to axial loading.” Thin-Walled Structures 48, no. 6 (2010): 379-390.

[19]. Ming, Shizhao, Caihua Zhou, Tong Li, Zhibo Song, and Bo Wang. “Energy absorption of thin-walled square tubes designed by kirigami approach.” International Journal of Mechanical Sciences 157 (2019): 150-164.

[20]. Nia, A. Alavi, and M. Parsapour. “Comparative analysis of energy absorption capacity of simple and multi-cell thin-walled tubes with triangular, square, hexagonal and octagonal sections.” Thin-Walled Structures 74 (2014): 155-165.

[21]. Li, Zhigang, Haifeng Yang, Xiongwei Hu, Jifei Wei, and Zhitong Han. “Experimental study on the crush behavior and energy-absorption ability of circular magnesium thin-walled tubes and the comparison with aluminum tubes.” Engineering Structures 164 (2018): 1-13.

[22]. Marzbanrad, Javad, Mehdi Mehdikhanlo, and Ashkan Saeedi Pour. “An energy absorption comparison of square, circular, and elliptic steel and aluminum tubes under impact loading.” Turkish Journal of Engineering and Environmental Sciences33, no. 3 (2010): 159-166.

[23]. Wang, Yifan, Jiusheng Feng, Jianghao Wu, and Dayong Hu. “Effects of fiber orientation and wall thickness on energy absorption characteristics of carbon-reinforced composite tubes under different loading conditions.” Composite Structures 153 (2016): 356-368.

[24]. Al Galib, D., and A. Limam. “Experimental and numerical investigation of static and dynamic axial crushing of circular aluminum tubes.” Thin-Walled Structures 42, no. 8 (2004): 1103-1137.

[25]. Patankar, S. N., and Tan Ming Jen. “Strain rate insensitive plasticity in aluminum alloy 5083.” Scripta Materialia 38, no. 8 (1998).

[26]. Zarei, H. R., and M. Kröger. “Multiobjective crashworthiness optimization of circular aluminum tubes.” Thin-walled structures 44, no. 3 (2006): 301-308.


Ahead of Print Open Access Original Research
Volume
Received January 3, 2024
Accepted January 19, 2024
Published May 13, 2024
