Computational investigation of the influence of process parameters of 3D printed PLA material

Open Access

Year : 2024 | Volume : | : | Page : –
By

Saurabh Pachauri

Naveen Kr. Gupta

Ankit Gupta

  1. Research Scholar Department of Mechanical Engineering, GLA University, Mathura Uttar Pradesh India
  2. Professor Department of Mechanical Engineering, GLA University, Mathura, Uttar Pradesh India
  3. Associate Professor School of Engineering, Shiv Nadar IoE Deemed to be University, Gautam Buddha Nagar Delhi India

Abstract

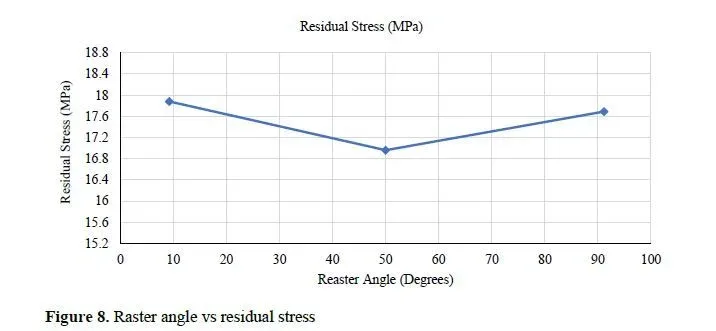

This study uses numerical simulation to examine the relationship between critical process parameters say, feed rate, layer height, and raster angle, on residual stresses and distortions and on the achievable density of FFF prints to identify the optimal input parameter combinations for ISO 527-2 type 1A. Methods of additive manufacturing that are utilised widely used to manufacture thermoplastic parts is fused filament fabrication. High residual stresses are one of the intrinsic phenomena that limit the widespread use of FFF in industry, despite the fact that it is now a well-established additive manufacturing process. Not all of the consequences, such as residual stresses, warping, and thermal cracking, are addressed by postprocessing. The analysis of interdependencies among various process outcomes reveals crucial insights. It is observed that high feed rates and larger layer heights are correlated with an increase in residual stresses, dimensional distortions in the final printed components, and increased porosity. The most favourable results are obtained when a raster angle of 45 degrees is employed. These findings highlight the significance of careful parameter selection and process optimisation in FFF to mitigate inherent challenges and enhance printed component reliability as well as quality.

Keywords: Fused Filament Fabrication (FFF), Raster Angle, Feed Rate, Layer Hight, Residual Stress, Porosity, Warpage, Polylactic Acid

How to cite this article: Saurabh Pachauri, Naveen Kr. Gupta, Ankit Gupta. Computational investigation of the influence of process parameters of 3D printed PLA material. Journal of Polymer and Composites. 2024; ():-.
How to cite this URL: Saurabh Pachauri, Naveen Kr. Gupta, Ankit Gupta. Computational investigation of the influence of process parameters of 3D printed PLA material. Journal of Polymer and Composites. 2024; ():-. Available from: https://journals.stmjournals.com/jopc/article=2024/view=145691
