Green synthesis of Ag-Fe2O3-CuO-PANI nanocomposite and its application as an Apple Vinegar sensor

Year : 2024 | Volume :12 | Issue : 04 | Page : 41-53
By

Madhura S. Walujkar,

Pooja More,

Sharda R. Gadale,

Shobha. A. Waghmode,

  1. Research scholar, Yashwantrao Mohite College of Arts, Science & Commerce, Pune b Savitribai Phule Pune University, Pune, Maharashtra, India
  2. Professor, Savitribai Phule Pune University, Pune, Maharashtra, India
  3. Research scholar, Yashwantrao Mohite College of Arts, Science & Commerce, Pune, Maharashtra, India
  4. Professor, MES, Abasaheb Garware College, Karve Road, Pune, Maharashtra, India

Abstract

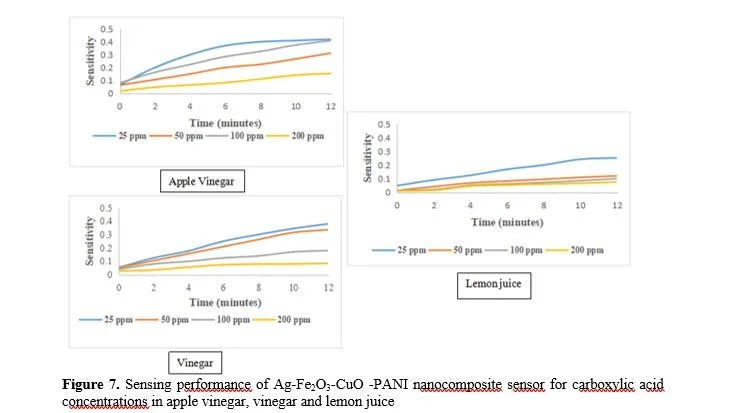

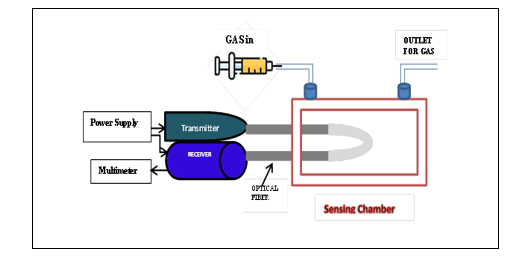

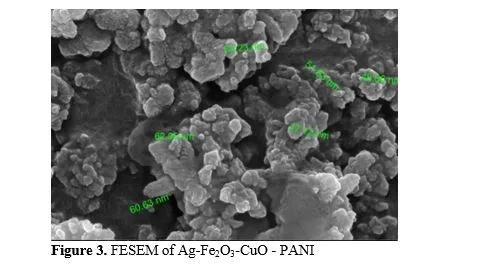

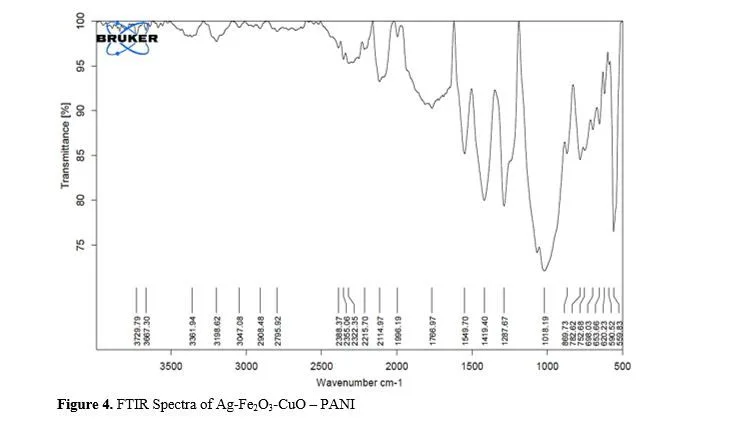

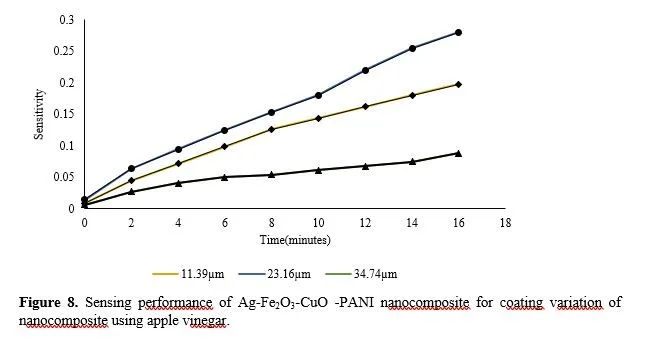

Green synthesis of nanoparticles is inexpensive and environmentally safe, herein we report green approach for the synthesis of Ag, Fe2O3, CuO nanoparticles by using Asparagus Racemosus plant to detect carboxylate vapours. Synthesized Ag, Fe2O3, CuO nanoparticles were taken in 1:1:1 ratio and PANI (polyaniline) was added in ratio 5:1 to form Ag-Fe2O3-CuO–PANI nanocomposite. Synthesized Ag-Fe2O3-CuO-PANI were characterized by XRD, FESEM and FTIR whose size was in the range of 16–60 nm. Further, a low cost and portable optical fibre-based sensor was developed using Ag-Fe2O3-CuO-PANI nanocomposite which was coated on unclad optical fibre, in which change in refractive index after exposure to carboxylic acid vapours was measured for 25-200 ppm concentration for Apple vinegar, Vinegar and Lemon juice. Carboxylic acid vapours of Apple vinegar showed the maximum response with optimized Ag-Fe2O3-CuO-PANI nanocomposite thickness 11.39 µm on the clad, length of 10 mm with U-shaped sensing probe with 8 mm bent radius.

Keywords: Biomaterial, adsorption, Nanocomposite, Optical, sensor

[This article belongs to Journal of Polymer and Composites (jopc)]

How to cite this article:
Madhura S. Walujkar, Pooja More, Sharda R. Gadale, Shobha. A. Waghmode. Green synthesis of Ag-Fe2O3-CuO-PANI nanocomposite and its application as an Apple Vinegar sensor. Journal of Polymer and Composites. 2024; 12(04):41-53.
How to cite this URL:
Madhura S. Walujkar, Pooja More, Sharda R. Gadale, Shobha. A. Waghmode. Green synthesis of Ag-Fe2O3-CuO-PANI nanocomposite and its application as an Apple Vinegar sensor. Journal of Polymer and Composites. 2024; 12(04):41-53. Available from: https://journals.stmjournals.com/jopc/article=2024/view=145665

Browse Figures

References

[1] H. K. Chaudhari and D. S. Kelkar. “Investigation of Structure and Electrical Conductivity in Doped Polyaniline”. Polymer International . 1997; 42 (4), 380-384

[2] P. Gajendran and R. Saraswathi .“Polyaniline-Carbon nanotube composites”. Pure Appl. Chem. 2008; 80 (11), 2377-2395 .

[3] S.Nagaraju, A.S. Roy, J.Kumar, et.al. “Humidity sensing properties of surface modified polyaniline metal oxide composites”. J. Eng. 2014; 1-8 .

[4] S. S. Umare, B. H. Shambharkar and R. S. Ningthoujam. “Synthesis and Characterization of Polyaniline-Fe3O4 Nanocomposite: Electrical Conductivity, Magnetic, Electrochemical Studies”. Synthetic Metals. 2010; 160 (17-18), 1815-1821

[5] Georgiana Ileana Badea and Gabriel Lucian Radu . “Introductory Chapter:Carboxylic Acids – Key Role in Life Sciences”. 2018.

[6] P. Yadav, A.K. Chauhan, R.B. Singh, et.al. “Organic acids: microbial sources, production, and applications R.B. Singh (Ed.), Functional Foods and Nutraceuticals in Metabolic and Non-Communicable Diseases”. Elsevier. 2022; 325-337 .

[7] Verhoff FH, Bauweleers H  Citric acid. “Pharmaceutical Applications of Citric acid”. Ullmann’s Encyclop Indust Chem: 2000; 1-11

[8] Mehmet Turemis, Daniele Zappi, Giovanni Basile et.al. “ZnO-polyaniline composite based photoluminescence sensor for the determination of acetic acid vapour”. Talanta 2020 ; 211: 120658

[9]  Dawu Lv, Weigang Chen, Weijie Song et.al. “ An enhanced flexible room temperature ammonia gas sensor based on GA-PANI PVDF multi-hierarchical nanocomposite film”. Sensors and Actuators: B. Chemical. 2021; 334 :129630

[10] Tauseef Ali,Mutabar Shah. “Processing and optical characterization of ultra-sensitive humidity and pressure sensors based on polyaniline/homium oxide hybrid nanocomposites”. Sensors and Actuators:A Physical. 2021; 331 : 113040

[11] Madhura S. Walujkar, Pooja More, Sharda R. Gadale et.al. “Green synthesis and characterization of Ag-PANI (Polyaniline) Nanocomposite and its application as a carboxylate vapour sensor”. IEEE Pune Section International Conference (PuneCon), 2022.

[12] S.F. Bamsaoud,S.B.Rane, R.C. Aiyer, et.al. “Nanosize SnO2 Based Tubular Resistive Gas Sensor for Hydrogen and Acetone vapour”. Trans. Ind. Ceram. Soc. 2010; 69 (3) : 193-197

[13] G. Balaji a , S. Rathinavel a , S. Vadivel b. “Design and fabrication of clad removed fiber optic based NiCo2O4 sensor for detection of ethanol and acetone gases”. Optik – International Journal for Light and Electron Optics. 2021; 228 : 166216.

[14] M. D’Arienzo, L. Armelao, C.M. Mari, et.al. “Morazzoni, Macroporous WO3 Thin Films Active in NH3 Sensing: Role of the Hosted Cr Isolated Centers and Pt Nanoclusters”. J. Am. Chem. Soc. 2011; 133:  5296–5304

[15] M.E. Franke, T.J. Koplin, U. Simon. “Metal and Metal Oxide Nanoparticles in Chemiresistors: Does the Nanoscale Matter?” Small. 2006; 2: 36–50.

[16] B. Renganathan, D. Sastikumar, G. Gobi,et.al. “Nanocrystalline ZnO coated fiber optic sensor for ammonia gas detection”. Opt. Laser Technol. 2011; 43 :1398–1404.

[17] D. Rithesh Raj, S. Prasanth, T.V. Vineeshkumar, et.al. “Ammonia sensing properties of tapered plastic optical fiber coated with silver nanoparticles/PVP/PVA hybrid”. Optics Communications . 2015; 340:  86–92

[18] R.N. Mariammal, K. Ramachandran, G. Kalaiselvan, et.al. “ Effect of magnetism on the ethanol sensitivity of undoped and Mn-doped CuO nanoflakes”. Appl. Surf. Sci. 2013; 270: 545–552

[19] H. Guo, S. Tao. “Silver nanoparticles doped silica nanocomposites coated on an optical fiber for ammonia sensing”. Sens. Actuators B. 2007; 123: 578–582

[20] R. Mohandoss, S. Dhanuskodia, B. Renganathanb, et.al. “Improved ethanol sensing characteristics of sol–gel derived nanocrystalline manganese doped lithium tetraborate” . Sens. Actuators A. 2013; 203: 310–315

[21] R.N. Mariammal , K. Ramachandran, B. Renganathan,  et.al. “On the enhancement of ethanol sensing by CuO modified SnO2 nanoparticles using fiber-optic sensor”. Sensors and Actuators B: Chemical. 2012; 169: 119-207

[22] B. Renganathan, D. Sastikumar, G. Gobi, et.al. “Gas sensing properties of a clad modified fiber optic sensor with Ce, Li and Al doped nanocrystalline zinc oxides”. Sensors and Actuators B. 2011;156 : 263–270.

[23] I.C. Yao, P. Lin, T.Y. Tseng. “Hydrogen gas sensors using ZnO–SnO2 core–shell nanostructure”. Advanced Science Letters. 2010; 3: 548–553

[24] S. Devendiran, D. Sastikumar. “Gas sensing based on detection of light radiation from a region of modified cladding (nanocrystalline ZnO) of an optical fiber”. Optics & Laser Technology. 2017; 89 : 186–191.

[25] A. Vijayan, M. Fuke, , R.C. Aiyer et.al. “Optical fibre based humidity sensor using Co-polyaniline clad”. Sens. Actuators B. 2008; 129 (1) : 106–112


Regular Issue Subscription Original Research
Volume 12
Issue 04
Received 06/02/2024
Accepted 18/04/2024
Published 09/05/2024
