Rheological behaviour analysis of prepared nano-cutting fluids from Al2O3 and TiO2

Open Access

Year : 2024 | Volume : | : | Page : –
By

Anurag Sharma

R. C. Singh

Ranganath M. Singari

S. L. Bhandarkar

  1. Faculty G B Pant DSEU Okhla III Uttar Pradesh India
  2. Professor Delhi Technological University Delhi India
  3. Professor Delhi Technological University Delhi India
  4. Controller of Exams Guru Gobind Singh Indraprastha University, Delhi India

Abstract

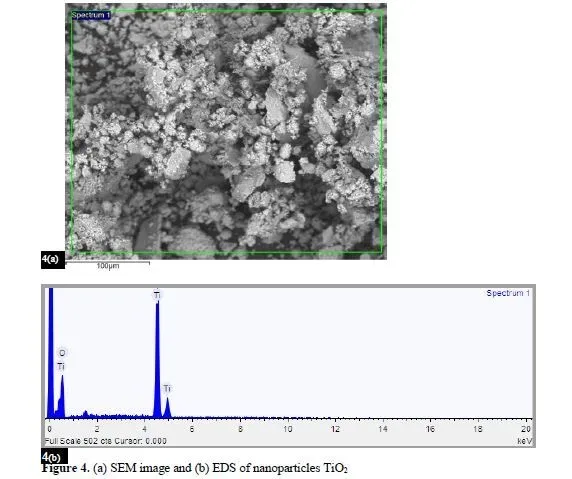

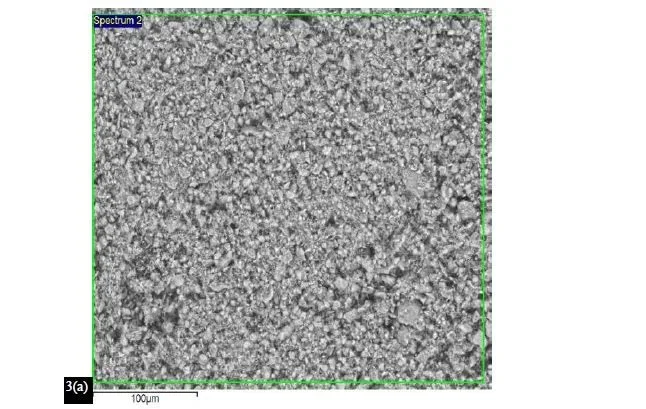

In this research paper, an attempt has been made to characterize and analyse the rheological properties of two samples of nano-cutting fluids. Nanoparticles of Al2O3 and TiO2 were characterized by SEM and EDS. The high peaks showed the respective presence of aluminium, oxygen for alumina and titanium and oxygen for titanium dioxide. The two samples of nano-cutting fluids were prepared. Alpha alumina, α-Al2O3 nanoparticles were used for the preparation of the sample of nano-cutting fluid in the ratio of 1% (w/w) with distilled water. TiO2 nanoparticles were used for the preparation of nano-cutting fluid in the ratio of 1% (w/w) with distilled water. Conventional cutting fluid was made in the ratio of 1:20 (w/w) with distilled water. The three samples were analysed at room temperature 25°C and 65°C. It was found that viscosity of each sample was lower at higher temperature as compared to viscosity at 25°C. The thermal conductivity of each sample was increased at higher temperature by 10.91, 8.42 and 7.4% respectively as compared to low temperature

Keywords: Nano-cutting fluids, Nanoparticles, Temperature, Viscosity, SEM, TEM

How to cite this article: Anurag Sharma, R. C. Singh, Ranganath M. Singari, S. L. Bhandarkar. Rheological behaviour analysis of prepared nano-cutting fluids from Al2O3 and TiO2. Journal of Polymer and Composites. 2024; ():-.
How to cite this URL: Anurag Sharma, R. C. Singh, Ranganath M. Singari, S. L. Bhandarkar. Rheological behaviour analysis of prepared nano-cutting fluids from Al2O3 and TiO2. Journal of Polymer and Composites. 2024; ():-. Available from: https://journals.stmjournals.com/jopc/article=2024/view=145113

Full Text PDF Download

References

  1. Byrne G, Scholta E (1993) Environmentally clean machining processes – a strategic approach. CRIP Annals- Manufacturing Technology 42(1): 471-474
  2. Hong S Y, Zaho (1999) Thermal aspects, material considerations and cooling strategies in cryogenic machining. Clean Production Processes 1:107-116
  3. A Sharma, R C Singh R C, Singari R M (2019) Effect of direct LN2 single jet supply during turning of AISI D3 steel alloy using an optimization technique. Material Research Express 6: 1-18 https://doi.org/10.1088/2053-1591/ab2ded
  4. Sharma A, Singh R C, Singari R M (2020) Optimization of cutting parameters during cryogenic turning of AISI D3 steel. Sadhna 45:124-136 https://doi.org/10.1007/s12046-020-01368-4
  5. Lawal S A, Choudhary I A, Nukman Y (2012) Application of vegetable oil-based metal working fluids in machining ferrous metals- A Review. International Journal of Machine Tools & Manufacture 52:1-12
  6. Shashidhara Y M, Jayaram S R (2010) Vegetable oils as a potential cutting fluid- An evolution. Tribology International  43:1073-1081
  7. Shrikant U G, Patil N G (2018) Experimental investigations into turning of hardened AISI 4340 steel using vegetable based cutting fluids under minimum quantity lubrication. Procedia Manufacturing 20:18-23
  8. Dhar N R, Kamruzzaman M, Ahmed M (2006) Effect of minimum quantity lubrication (MQL) on tool wear and surface roughness in turning AISI 4340 steel. Journal of Materials Processing Technology 172 : 229-304
  9. Nizammuddin M, Agrawal S M, Patil N (2018) The effect of kanranja based soluble cutting fluid on chips formation in orthogonal cutting process of AISI 1045 steel. Procedia Manufactturing 20: 12-17
  10. Kumar N S, Prabu L, Karthik M, Rajamanickam A (2014) Experimental analysis on cutting fluid dispersed with silver nanoparticles. Journal of Mechanical Science and Technology 28: 645-651
  11. Pavani P N L, Pola R, Srikiran S (2015) Performance evaluation and optimization of nanoboric acid powder weight percentage mixed with vegetable oil using Taguchi approach. Journal of Mechanical Science and Technology 29: 4877-4883
  12. Krishna P V, Srikant R R, Rao D N (2010) Experimental investigation on the performance of nano boric suspensions in SAE 40 and coconut oil during turning of AISI 1040 steel. International Journal of Machine Tools & Manufacture 50: 911-916
  13. Chetan, Behera B C, Ghosh S, Rao P V (2016) Application of nanofluids during minimum quantity lubrication: A case study in turning process. Tribology International 101:234–246
  14. Shokrani Y, Shckarian E (2015) Application of nanofluids in machining processes- A Review. Journal Nanoscience Technology 2: 59-63
  15. Xuan Y, Qiang L (2000) Heat transfer enhancement of nanofluids. International Journal Heat Fluid Flow 21(1): 58-64
  16. Zhang M, Wang X, Liu W (2009) Performance and antiwear mechanism of Cu nanoparticles as lubricating oil additives. Industrial Lubrication Tribology 61(6): 311-318.
  17. Chan C Y, W. B. Lee and H. Wang (2013) Enhancement of surface finish using water – miscible nano cutting fluid in ultra precision turning. International Journal of Machine Tools & Manufacture 73:62-70
  18. Sun Y, Gong L, Li B (2016) Performance evaluation of nanofluid MQL with vegetable – based oil and ester oil as base fluids in turning. International Journal Advanced Manufacturing Technology 83 ( (9-12): 2083-2089
  19. Padmini R, Krishna P V, Rao G K M (2016) Effectiveness of vegetable oil based nano fluids as potential cutting fluid in turning steel AISI 1040 Steel. Tribology International 94: 490-501
  20. Uysal A, Demiren F, Atlan E (2015) Applying minimum quantity lubrication (MQL) method on milling of martensitic stainless steel by using Nano MoS2 reinforced vegetable cutting fluid. Procedia social and Behavioral Sciences, 195: 2742-2747.
  21. Kumar K M, Ghosh A (2016) Assessment of cooling lubrication and wettablity characteristics of nano engineered sunflower oil as cutting fluid and its impact on SQCL grinding performance Journal of Material Processing Technology, 237: 55-64.
  22. Amrita M, Shariq S A, Manoj Gopal C, (2014) Experimental investigation on application of emufsifier oil based nano cutting fluid in metal cutting process. Procedia Engineering, 97: 1115-1124
  23. Sharma A K , Singh R K , Dixit A R, Tiwari A K, (2016) Characterization and experimental investigation of Al2O3 nanoparticle based cutting fluid in turning AISI 1040 steel under minimum quantity lubrication (MQL). Materials Today, Proceedings 3(22): 1899-1906
  24. Ramakrishnan H, Balasundaram R, Selvaganapathy P , Santhakumari, Sivasankaran P, Vignesh P (2019) Experimental investigation of turning Al 7075 using Al2O3 nano-cutting fluid: ANOVA and TOPSIS approach. S/N applied sciences 1: 1639  https://doi.org/10.1007/s42452-019-1664-0.
Ahead of Print Open Access Original Research
Volume
Received January 6, 2024
Accepted March 5, 2024
Published May 4, 2024
Views: 19
