Axial Compression Behavior of Aluminum (Al), Glass/Epoxy (GFRP) and Hybrid Al-GFRP Crash-box: An Experimental and Digital Image Correlation Approach

Open Access

Year : 2024 | Volume :12 | Special Issue : 01 | Page : 304-313
By

Varsha M.P.

Mahesh

Prashant Rawat

  1. Department of Mechanical Engineering, National Institute of Technology, Tiruchirappalli Tamil Nadu India
  2. Department of Aerospace Engineering, Indian Institute of Technology Madras, Chennai Tamil Nadu India
  3. Assistant Professor Department of Aerospace Engineering, Indian Institute of Technology Madras, Chennai Tamil Nadu India

Abstract

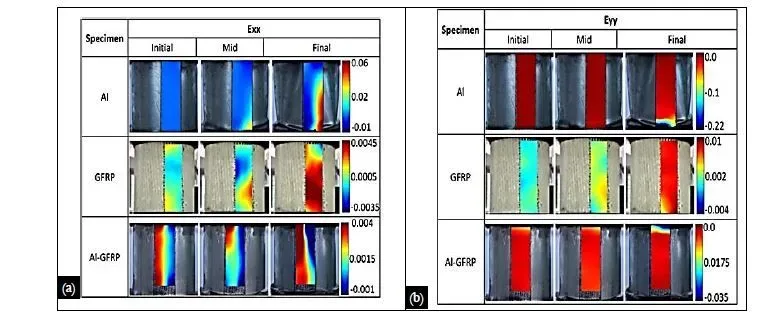

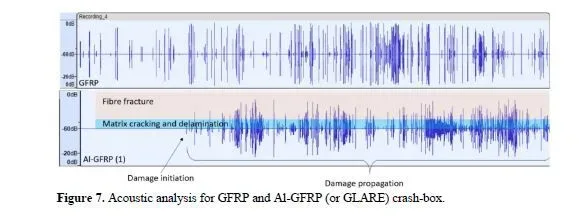

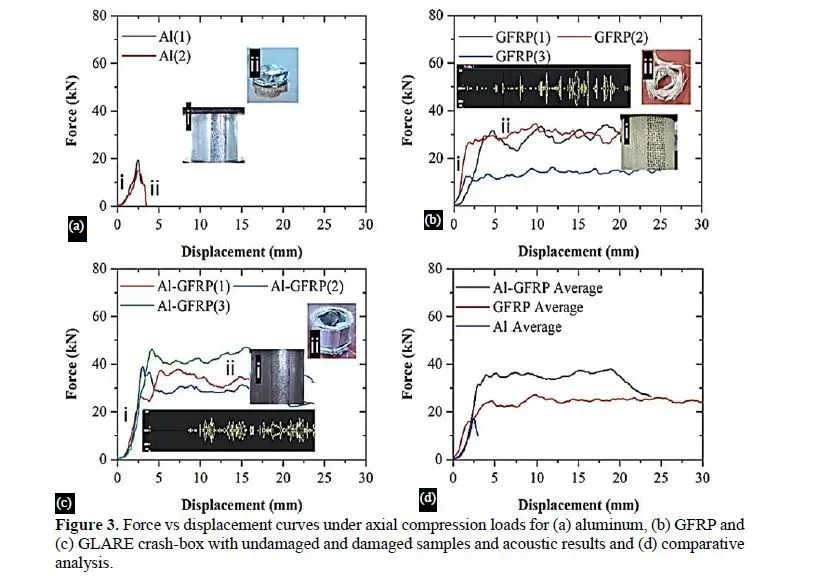

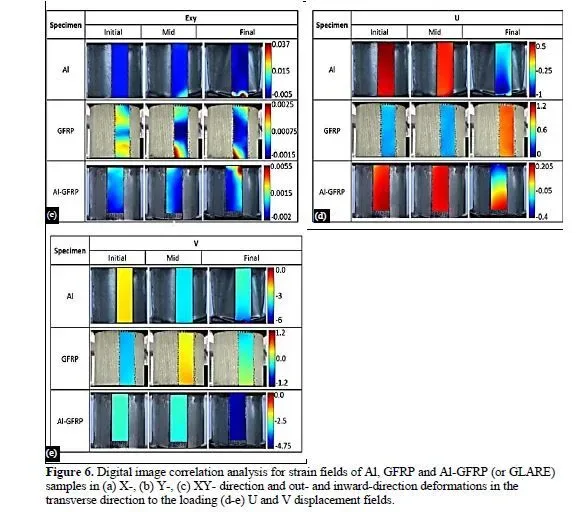

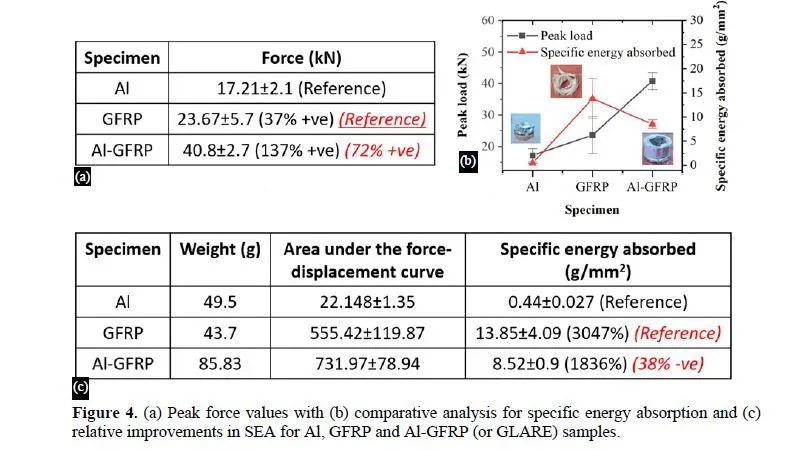

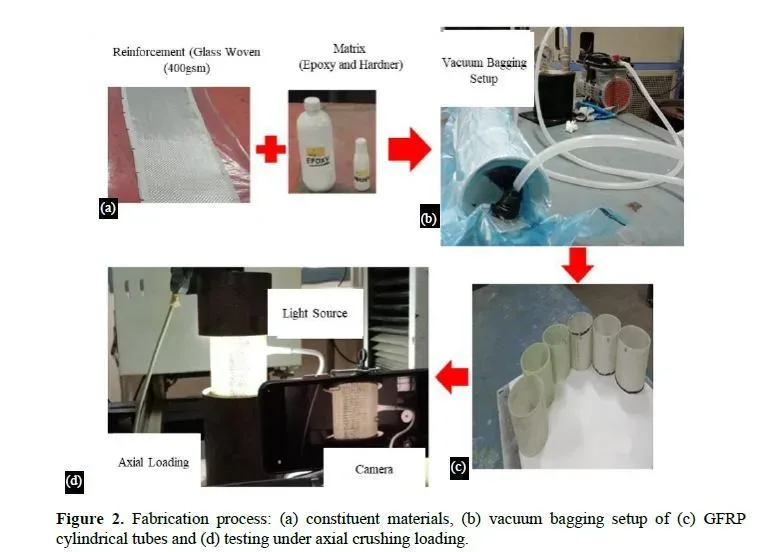

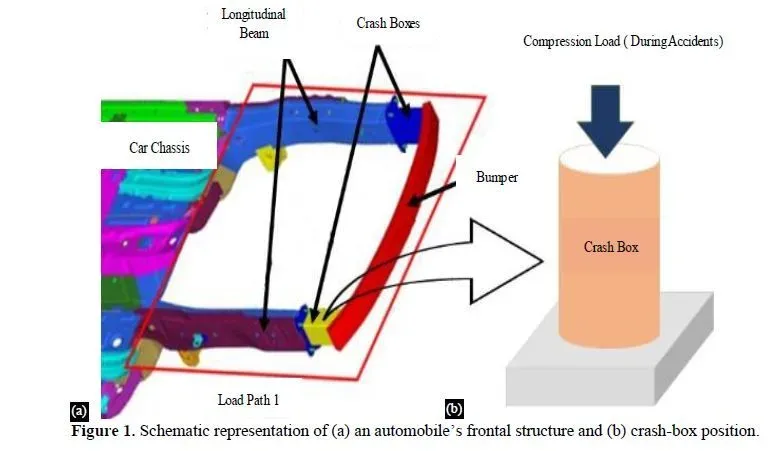

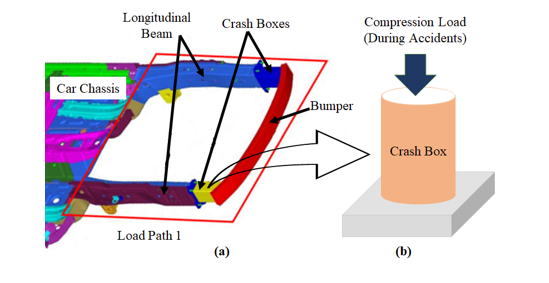

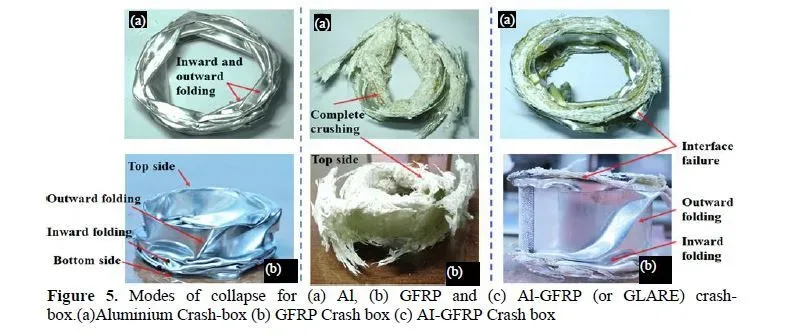

The study aims to understand the axial compression characteristics and fracture of cylindrical Aluminum (Al), Glass/epoxy (GFRP) composite and Hybrid Al-GFRP crash-boxes. The hollow Al tubes are fabricated by rolling and bonding a thin aluminum sheet followed by rivet joints. The GFRP samples are manufactured using the wet-hand layup technique followed by the vacuum bagging method. Hybrid samples are manufactured by covering GFRP tubes with aluminum sheets on the outer and inner sides bonded by commercial Araldite®. The prepared samples are axially compressed in a universal testing machine (UTM). The strain field study by the Digital Image Correlation (DIC) technique is performed to identify the possibility of fracture modes in the prepared crash boxes. The continuous damage progression is measured using acoustic sound signatures. It is observed from the experimental results that the Al-GFRP samples showed the highest load carrying capacity. The GFRP composites showed the highest specific energy absorption (SEA) and a relatively stable axial crushing phenomenon. The comparative results proved that DIC and acoustic analysis can accurately identify the fracture in hollow crash-boxes (without physical contact and causing damage in the samples) during the experiments.

Keywords: Axial compression; GFRP; Hybrid crash-box; Crashworthiness; Failure Modes, DIC; Acoustic analysis; Non-contact fracture analysis

[This article belongs to Special Issue under section in Journal of Polymer and Composites(jopc)]

How to cite this article: Varsha M.P., Mahesh, Prashant Rawat. Axial Compression Behavior of Aluminum (Al), Glass/Epoxy (GFRP) and Hybrid Al-GFRP Crash-box: An Experimental and Digital Image Correlation Approach. Journal of Polymer and Composites. 2024; 12(01):304-313.
How to cite this URL: Varsha M.P., Mahesh, Prashant Rawat. Axial Compression Behavior of Aluminum (Al), Glass/Epoxy (GFRP) and Hybrid Al-GFRP Crash-box: An Experimental and Digital Image Correlation Approach. Journal of Polymer and Composites. 2024; 12(01):304-313. Available from: https://journals.stmjournals.com/jopc/article=2024/view=144260

Full Text PDF Download

Browse Figures

References

  1. Wang G, Zhang Y, Zheng Z, Chen H, Yu J. Crashworthiness design and impact tests of aluminum foam-filled crash boxes. Thin-Walled Structures. 2022;180:109937.
  2. Choi S-y, Hong S-c, Park S-k, Jeong S-w. Effects of Diameter-to-thickness Ratio on Impact Energy Absorption Capability of CFRP Cylindrical Crash Box. International Journal of Automotive Technology. 2022;23(6):1663-1671.
  3. Nasir Hussain N, Regalla SP, Daseswara Rao YV. Study on influence of notch triggers on absorption of energy for composite automobile crash box under impact loads. Materials Today: Proceedings. 2021/01/01/ 2021;38:3220-3231. doi:https://doi.org/10.1016/j.matpr.2020.09.715
  4. Thornton PH, Edwards P. Energy absorption in composite tubes. Journal of Composite Materials. 1982;16(6):521-545.
  5. Yang H, Lei H, Lu G, Zhang Z, Li X, Liu Y. Energy absorption and failure pattern of hybrid composite tubes under quasi-static axial compression. Composites Part B: Engineering. 2020;198:108217.
  6. Zhu G, Sun G, Yu H, Li S, Li Q. Energy absorption of metal, composite and metal/composite hybrid structures under oblique crushing loading. International Journal of Mechanical Sciences. 2018;135:458-483.
  7. Zhu G, Sun G, Li G, Cheng A, Li Q. Modeling for CFRP structures subjected to quasi-static crushing. Composite Structures. 2018;184:41-55.
  8. Özen İ, Gedikli H, Aslan M. Experimental and numerical investigation on energy absorbing characteristics of empty and cellular filled composite crash boxes. Engineering Structures. 2023;289:116315.
  9. Wierzbicki T, Abramowicz W. On the crushing mechanics of thin-walled structures. 1983;
  10. Shin KC, Lee JJ, Kim KH, Song MC, Huh JS. Axial crush and bending collapse of an aluminum/GFRP hybrid square tube and its energy absorption capability. Composite structures. 2002;57(1-4):279-287.
  11. Jacob GC, Fellers JF, Simunovic S, Starbuck JM. Energy absorption in polymer composites for automotive crashworthiness. Journal of composite materials. 2002;36(7):813-850.
  12. Kumar D, Kamle S, Mohite PM, Kamath GM. A novel real-time DIC-FPGA-based measurement method for dynamic testing of light and flexible structures. Measurement Science and Technology. 2019/03/18 2019;30(4):045903. doi:10.1088/1361-6501/ab01a7
  13. Mahesh, Rawat P, Sai L, Behera RP, Singh KK, Zhu D. Shear performance of MWCNTs modified single-lap joints of glass/epoxy laminates. Journal of Adhesion Science and Technology. 2022/11/17 2022;36(22):2418-2437. doi:10.1080/01694243.2021.2011825
  14. Audacity® software is copyright © 1999-2021 Audacity Team. Web site: https://audacityteam.org/. It is free software distributed under the terms of the GNU General Public License. The name Audacity® is a registered trademark. https://audacityteam.org/
  15. Thompson DE. An Overview of Audacity. General Music Today. 2014/04/01 2014;27(3):40-43. doi:10.1177/1048371314523964
  16. Guden M, Yüksel S, Taşdemirci A, Tanoğlu M. Effect of aluminum closed-cell foam filling on the quasi-static axial crush performance of glass fiber reinforced polyester composite and aluminum/composite hybrid tubes. Composite structures. 2007;81(4):480-490.
  17. Sathishkumar T, Satheeshkumar S, Bhuvaneshkumar K, Sanjay M, Siengchin S. Crashworthiness characterization of jute fiber woven mat reinforced epoxy composite tube for structural application using Taguchi’s method. International Journal of Crashworthiness. 2022;27(5):1351-1367.
  18. Mirzaei M, Shakeri M, Sadighi M, Akbarshahi H. Experimental and analytical assessment of axial crushing of circular hybrid tubes under quasi-static load. Composite structures. 2012;94(6):1959-1966.
  19. Quanjin M, Merzuki MNM, Rejab MRM, Noh MZC. Compressive behaviour of aluminium rectangular hollow tube using Digital Image Correlation (DIC) method. IOP Conference Series: Materials Science and Engineering. 2020/05/01 2020;863(1):012038. doi:10.1088/1757-899X/863/1/012038
  20. Blaber J, Adair B, Antoniou A. Ncorr: open-source 2D digital image correlation matlab software. Experimental Mechanics. 2015;55(6):1105-1122.
  21. Harilal R. Adaptation of open source 2D DIC software Ncorr for solid mechanics applications. 2014.

Special Issue Open Access Original Research
Volume 12
Special Issue 01
Received January 6, 2024
Accepted March 23, 2024
Published April 24, 2024
