Mechanical Characteristics of Naturally Woven Coconut Sheath/Short Sisal Fiber Reinforced Polymer Hybrid Composites

Open Access

Year : 2024 | Volume :12 | Special Issue : 01 | Page : 34-44
By

Balaji A N

Karthikeyan M K V

Thanga Kasi Rajan S T K

Ezilvannan R

  1. Professor Department of Mechanical Engineering, SRM Madurai College for Engineering and Technology Tamil Nadu India
  2. Professor Department of Mechanical Engineering, Vaigai College of Engineering, Tamil Nadu India
  3. Associate Professor Department of Mechanical Engineering, Kamaraj College of Engineering and Technology Tamil Nadu India
  4. Assistant Professor Department of Mechanical Engineering, Velammal College of Engineering and Technology Tamil Nadu India

Abstract

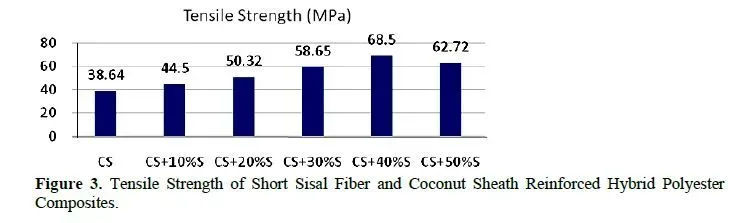

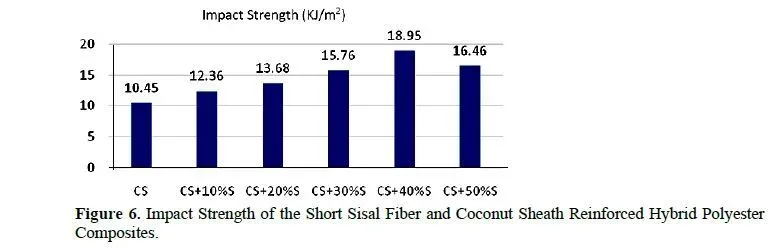

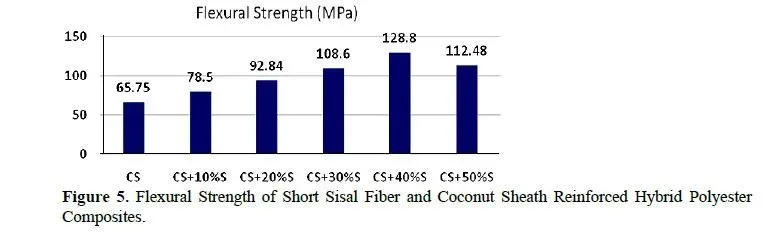

This study presents the outcomes of an experimental investigation focusing on the tensile, flexural, impact and water absorption properties of unsaturated polyester resin reinforced with naturally woven coconut sheath and short sisal fibers. Sisal fiber, characterized by its abundance, affordability, degradability, and robust strength, serves as a compelling reinforcement. The naturally woven coconut sheath fibers, discreetly found in the hidden sections of coconut branches, offer an inexpensive, biodegradable option with a high specific strength. Hybrid composites are meticulously crafted through the compression molding method. The study delves into the mechanical properties of coconut sheath and various fiber loadings (ranging from 10% to 50%) of short sisal fiber-reinforced polyester composites. The experimental results illuminate a dependency of the composite’s mechanical properties on the weight percentage of short sisal fiber reinforcement. Notably, the hybrid specimen containing 40% short sisal fiber and coconut sheath exhibits remarkable tensile, flexural, and impact strengths of 68.5 MPa, 128.8 MPa, and 18.95 kJ/m2, respectively. This hybrid reinforcement substantially elevates the mechanical properties of the composites. The interaction between the fiber and matrix in the fractured mechanical testing specimen was examined using a scanning electron microscope. These findings underscore the potential of naturally woven coconut sheath and short sisal fibers as effective polyester reinforcements. The study suggests that these bio-based materials could be employed to fabricate cost-effective, high-strength goods applicable in diverse sectors such as automotive components, consumer products, building constructions, and industrial applications

Keywords: Coconut Sheath, Sisal Fiber, Hybrid Composites, Mechanical Properties

[This article belongs to Special Issue under section in Journal of Polymer and Composites(jopc)]

How to cite this article: Balaji A N, Karthikeyan M K V, Thanga Kasi Rajan S T K, Ezilvannan R. Mechanical Characteristics of Naturally Woven Coconut Sheath/Short Sisal Fiber Reinforced Polymer Hybrid Composites. Journal of Polymer and Composites. 2024; 12(01):34-44.
How to cite this URL: Balaji A N, Karthikeyan M K V, Thanga Kasi Rajan S T K, Ezilvannan R. Mechanical Characteristics of Naturally Woven Coconut Sheath/Short Sisal Fiber Reinforced Polymer Hybrid Composites. Journal of Polymer and Composites. 2024; 12(01):34-44. Available from: https://journals.stmjournals.com/jopc/article=2024/view=143577

Full Text PDF Download

Browse Figures

References

  1. Prasad AR, Rao KM. Mechanical properties of natural fibre reinforced polyester composites: Jowar, sisal and bamboo. Materials & Design. 2011 Sep 1;32(8-9):4658-63.
  2. Senthilkumar K, Saba N, Rajini N, et al. Mechanical properties evaluation of sisal fibre reinforced polymer composites: A review. Construction and Building Materials. 2018 Jun 20;174:713-29.
  3. Ibrahim ID, Jamiru T, Sadiku ER, et al. Mechanical properties of sisal fibre-reinforced polymer composites: a review. Composite Interfaces. 2016 Jan 2;23(1):15-36.
  4. Fuentes CA, Tran LQ, Van Hellemont M, et al. Effect of physical adhesion on mechanical behaviour of bamboo fibre reinforced thermoplastic composites. Colloids and surfaces A: physicochemical and engineering aspects. 2013 Feb 5;418:7-15.
  5. Adeniyi AG, Onifade DV, Ighalo JO, et al. A review of coir fiber reinforced polymer composites. Composites Part B: Engineering. 2019 Nov 1;176:107305.
  6. Nagarajan KJ, Balaji AN, Ramanujam NR, et al. Preparation and characterization of alkali treated cocos nucifera var aurantiaca peduncle fibers reinforced epoxy composites. Materials Research Express. 2019 Nov 15;6(12):125310.
  7. Siva I, Jappes JT, Suresha B. Investigation on mechanical and tribological behavior of naturally woven coconut sheath‐reinforced polymer composites. Polymer composites. 2012 May;33(5):723-32.
  8. Andersons J, Joffe R. Estimation of the tensile strength of an oriented flax fiber-reinforced polymer composite. Composites Part A: Applied Science and Manufacturing. 2011 Sep 1;42(9):1229-35.
  9. SaravanaKumar M, Kumar SS, Babu BS, et al. Influence of fiber loading on mechanical characterization of pineapple leaf and kenaf fibers reinforced polyester composites. Materials Today: Proceedings. 2021 Jan 1;46:439-44.
  10. Balaji AN, Nagarajan KJ. Characterization of alkali treated and untreated new cellulosic fiber from Saharan aloe vera cactus leaves. Carbohydrate Polymers. 2017 Oct 15;174:200-8.
  11. Bhuvaneswari V, Rajeshkumar L, Sathishkumar TP, et al. Effect of fiber orientation on physical and mechanical properties of Typha angustifolia natural fiber reinforced composites. Applied Science and Engineering Progress. 2023 Aug 23;16(3):6497.
  12. Senthamaraikannan P, Saravanakumar SS. Utilization of Mucuna atropurpurea stem fiber as a reinforcement in fiber reinforced plastics. Polymer Composites. 2022 Aug;43(8):4959-78.
  13. Karthikeyan MK, Balaji AN, Vignesh V. Effect of rope mat and random orientation on mechanical and thermal properties of banana ribbon-reinforced polyester composites and its application. International journal of polymer analysis and characterization. 2016 May 18;21(4):296-304.
  14. Jappes JW, Siva I, Rajini N. Fractography analysis of naturally woven coconut sheath reinforced polyester composite: A novel reinforcement. Polymer-Plastics Technology and Engineering. 2012 Feb 15;51(4):419-24.
  15. Ramesh M, Palanikumar K, Reddy KH. Mechanical property evaluation of sisal–jute–glass fiber reinforced polyester composites. Composites Part B: Engineering. 2013 May 1;48:1-9.
  16. Ramnath BV, Kokan SJ, Raja RN, et al. Evaluation of mechanical properties of abaca–jute–glass fibre reinforced epoxy composite. Materials & Design. 2013 Oct 1;51:357-66.
  17. Palanikumar K, Ramesh M, Hemachandra Reddy K. Experimental investigation on the mechanical properties of green hybrid sisal and glass fiber reinforced polymer composites. Journal of Natural Fibers. 2016 May 3;13(3):321-31.
  18. Alavudeen A, Rajini N, Karthikeyan S, et al. Mechanical properties of banana/kenaf fiber-reinforced hybrid polyester composites: Effect of woven fabric and random orientation. Materials & Design (1980-2015). 2015 Feb 5;66:246-57.
  19. Uthayakumar M, Manikandan V, Rajini N, et al. Influence of redmud on the mechanical, damping and chemical resistance properties of banana/polyester hybrid composites. Materials & Design. 2014 Dec 1;64:270-9.
  20. Stalin B, Nagaprasad N, Vignesh V, et al. Evaluation of mechanical and thermal properties of tamarind seed filler reinforced vinyl ester composites. Journal of Vinyl and Additive Technology. 2019 Mar;25(s2):E114-28.
  21. Vignesh V, Balaji AN, Nagaprasad N, et al. Indian mallow fiber reinforced polyester composites: Mechanical and thermal properties. Journal of Materials Research and Technology. 2021 Mar 1;11:274-84.
  22. Thiruchitrambalam M, Shanmugam D. Influence of pre-treatments on the mechanical properties of palmyra palm leaf stalk fiber–polyester composites. Journal of Reinforced Plastics and Composites. 2012 Oct;31(20):1400-14.
  23. Vilay V, Mariatti M, Taib RM, Todo M. Effect of fiber surface treatment and fiber loading on the properties of bagasse fiber–reinforced unsaturated polyester composites. Composites Science and Technology. 2008 Mar 1;68(3-4):631-8.
  24. Rout J, Misra M, Tripathy SS, et al. The influence of fibre treatment on the performance of coir-polyester composites. Composites Science and Technology. 2001 Jul 1;61(9):1303-10.
  25. Koçak ED. The influence of ultrasonic energy on chemical treatment of surface properties and the properties of composites made of luffa cylindrical fiber-polyester resin.
  26. Mylsamy B, Palaniappan SK, Subramani SP, et al. Impact of nanoclay on mechanical and structural properties of treated Coccinia indica fibre reinforced epoxy composites. Journal of Materials Research and Technology. 2019 Nov 1;8(6):6021-8.
  27. Noorunnisa Khanam P, Mohan Reddy M, Raghu K, John K, Venkata Naidu S. Tensile, flexural and compressive properties of sisal/silk hybrid composites. Journal of Reinforced Plastics and Composites. 2007 Jul;26(10):1065-70.
  28. Rao KM, Prasad AR, Babu MR, et al. Tensile properties of elephant grass fiber reinforced polyester composites. Journal of Materials Science. 2007 May;42:3266-72.
  29. Sreenivasan VS, Ravindran D, Manikandan V, et al. Mechanical properties of randomly oriented short Sansevieria cylindrica fibre/polyester composites. Materials & Design. 2011 Apr 1;32(4):2444-55.
  30. Pothan LA, George J, Thomas S. Effect of fiber surface treatments on the fiber–matrix interaction in banana fiber reinforced polyester composites. Composite Interfaces. 2002 Jan 1;9(4):335-53.
  31. Sangthong S, Pongprayoon T, Yanumet N. Mechanical property improvement of unsaturated polyester composite reinforced with admicellar-treated sisal fibers. Composites Part A: Applied Science and Manufacturing. 2009 Jul 1;40(6-7):687-94.
  32. Kumaran P, Mohanamurugan S, Madhu S, et al. Investigation on thermo-mechanical characteristics of treated/untreated Portunus sanguinolentus shell powder-based jute fabrics reinforced epoxy composites. Journal of Industrial Textiles. 2020 Oct;50(4):427-59.

Special Issue Open Access Original Research
Volume 12
Special Issue 01
Received January 24, 2024
Accepted February 3, 2024
Published April 16, 2024
