Experimental investigation on impact resistance and energy absorption of multicell thin walled glass fibre reinforced polymer composite

Open Access

Year : 2024 | Volume :11 | Special Issue : 13 | Page : 85-95
By

    Nanjundaswamy H.S.

  1. Srikanth H.V.

  2. Sambhaji Lore

Abstract

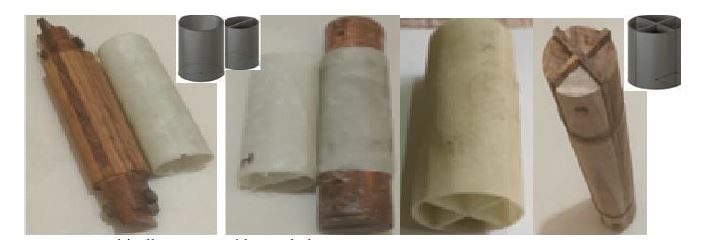

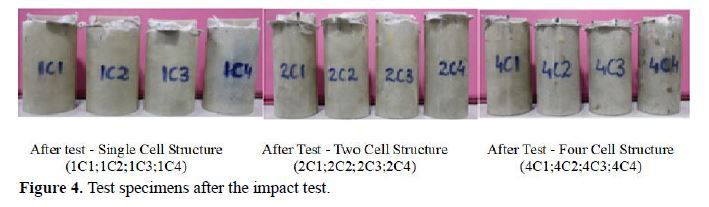

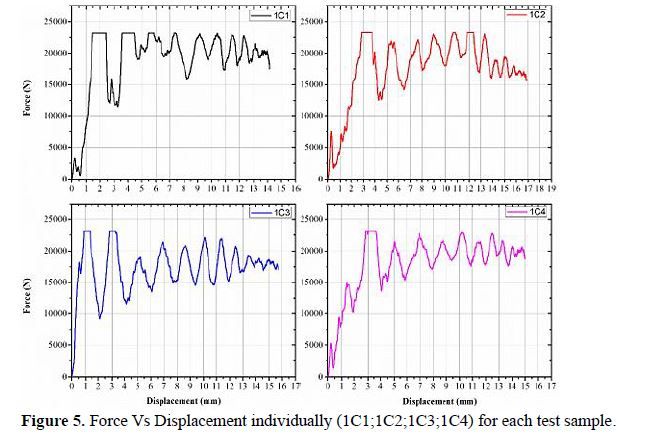

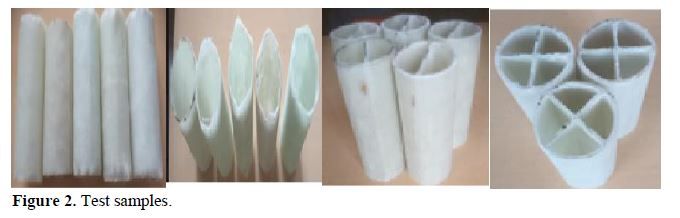

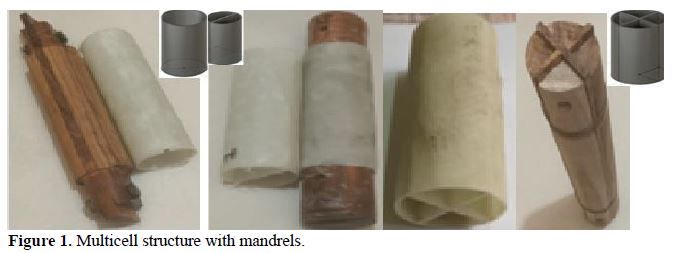

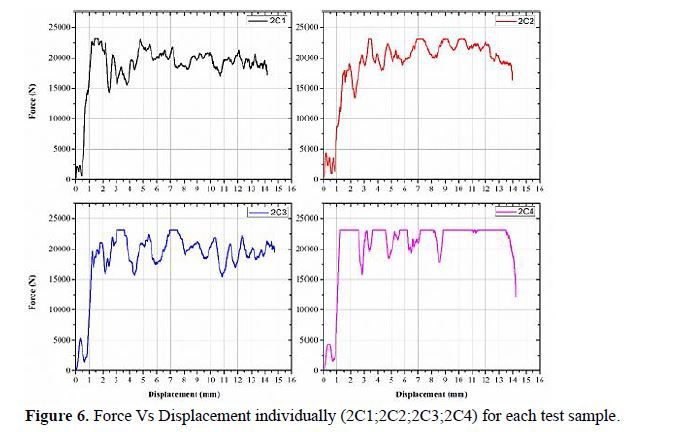

The objective of this study is to explore the behaviour of different types GFRP cell structures under dynamic load testing. In this study we have designed, fabricated, tested and analyzed specimens of different configurations (Cylindrical structure – 1 cell, 2 cell and 4 cell) using Glass Fibre Reinforced Polymer (GFRP). GFRP constituents are Glass fibre of 200 GSM with L-12 epoxy and K-6 hardener. Test specimens were manufactured by conventional manufacturing techniques. These test specimens were subjected to Drop weight Impact Test. The Limiting crushing force, displacement and strain energy absorption were investigated experimentally on all the test samples. In the testing, the crushing behaviour of all the configurations of multi-cell were determined. Considering free mass/load of 30 kg and free fall height of 1 metre, for same height of single/two/four cell composite structures results showed that crush depth in Single Cell is about 16.038%, Two Cell is about 13.44% and Four Cell structure is about 9.384%, This proves that the 4 cell composite structure is stronger to 2 cell and to single cell composite structures.

Keywords: Glass Fibre Reinforced Polymer, Multi cell, Drop weight impact test, Limiting load, Strain energy,

[This article belongs to Special Issue under section in Journal of Polymer and Composites(jopc)]

How to cite this article: Nanjundaswamy H.S., Srikanth H.V., Sambhaji Lore , Experimental investigation on impact resistance and energy absorption of multicell thin walled glass fibre reinforced polymer composite jopc 2024; 11:85-95
How to cite this URL: Nanjundaswamy H.S., Srikanth H.V., Sambhaji Lore , Experimental investigation on impact resistance and energy absorption of multicell thin walled glass fibre reinforced polymer composite jopc 2024 {cited 2024 Mar 29};11:85-95. Available from: https://journals.stmjournals.com/jopc/article=2024/view=136725

Full Text PDF Download

Browse Figures

References

  1. A Mansor, Z. Ahmad, M.R. Abdullah.Crashworthiness Capability of thin-walled fibre metal laminate tubes under axial crushing. Engineering Structures. 2022; 252(113660).
  2. Kui Wang, Yisen Liu, Jin Wang, et al. Crashworthiness behaviours of 3D printed multi cell filled thin walled structures. Engineering Structures. 2022; 254(113907).
  3. Qiang Gao, Wei-Hsin Liao. Energy absorption of thin walled tube filled with gradient auxetic structures – theory and simulation. International Journal of Mechanical Sciences. 2021 (106475).
  4. Tengfei Kuai, Xianfeng Zhang, Hejuan Chen et al. Study on Impact Resistance of Composite Reinforced Thin-walled Tubes. Journal of Physics: Conference Series. 2020. 1721(012042).
  5. Wu Hong,Haulin Fan, Zhicheng Xia, et al. Axial Crushing behaviour of multicell tubes with triangular lattices. International Journal of Impact Engineering. 2014. 63: 106–
  6. Alvavi Nia, M Parsapour. Comparative analysis of energy absorbing capacity of simple and multicell thin walled tubes with triangular, square, hexagonal and octagonal sections. Thin Walled Structures. 2014. 74: 115–165p.
  7. Heung Soo-kim. New extruded multi-cell aluminium Profile for Maximum Crash Energy Absorption and weight efficiency.Thin Walled Structures. 2002. 40(4): 311–
  8. Jianguang Fang, Yunkai Gao, Guanghong Sun, et al. Dynamic Crashing behaviour of new extrudable multicell tubes with functionally graded thickness. International Journal of Impact Engineering. 2015. 103: 63–
  9. Alexander J M. An approximate analysis of the collapse of thin cylindrical shells under axial loading. The Quarterly Journal of Mechanics and Applied Mathematics. 1960. 13(1): 10–
  10. Hsu S S, Jones N. Quasi-static and dynamic axial crushing of thin-walled circular stainless steel, mild steel and aluminium alloy tubes. Internal Journal of Crashworthiness. 2004. 9(2): 195–217p.
  11. Reid S R. Plastic deformation mechanisms in axially compressed metal tubes used as impact energy absorbers. International Journal of Mechanical Sciences. 1993. 35(12):1035–
  12. Guillow S R, Lu G, and Grzebieta R H. Quasi-static axial compression of thin-walled circular aluminium tubes.International Journal of Mechanical Sciences. 2001. 43(9):2103–
  13. Abramowicz W, Jones NDynamic axial crushing of circular tubes. International Journal of Impact Engineering. 2(3): 263–281p.
  14. Chen W, Wierzbicki T. Relative merits of single-cell, multi-cell and foam-filled thin-walled structures in energy absorption. Thin-Walled Structures. 2001 39(4): 287–306p.
  15. Abramowicz W, Wierzbicki T. On the crushing mechanics of thin-walled structures. Journal of Applied Mechanics. 1983. 50(4a): 727–
  16. G.Pugsley. On the crumpling of thin tubular struts. The Quarterly Journal of Mechanics and Applied Mathematics. 1979. 32 (1): 1–7p.
  17. Wierzbicki,W.Abramowicz. On the crushing mechanics of thin-walled structures. Journal of Applied Mechanics. 1983. 50(4a): 727–734p.
  18. Wierzbicki,S.U.Bhat,W.Abramowicz,et al. Alexander revisited – A two folding elements model of progressive crushing of tubes. International Journal of Solids and Structures. 1992. 29(24): 3269-3288p.
  19. G.Mamalis,D.E.Manolakos,M.B.Ioannidis, et al. Crashworthy characteristics of axially statically compressed thin-walled square CFRP composite tubes: experimental. Composite Structures. 2004. 63(3-4): 347–360p.
  20. G.Mamalis,D.E.Manolakos,M.B.Ioannidis,et al. On the response of thin-walled CFRP composite tubular components subjected to static and dynamic axial compressive loading: experimental. Composite Structures. 2005. 63(3-4): 407–420p.
  21. N.Shivakumar,W.Elber,W.Illg. Prediction of low-velocity impact damage in thin circular laminates. AIAA Journal. 1985. 23(3): 442–449p.
  22. Rajesh Mathivanan,J.Jerald. Experimental investigation of low-velocity impact characteristics of woven glass fiber epoxy matrix composite laminates of EP3 grade. Materials and Design. 2010. 31(9). 4553–4560p.
  23. J.Cantwell,J.Morton. The impact resistance of composite materials – a review. Composites. 1991. 22(5) (1991): 347–362p.
  24. Meola,G.M.Carlomagno. Impact damage in GFRP: New insights with infrared thermography. Composites Part A: Applied Science and Manufacturing. 2010. 41(12): 1839–1847p.
  25. D.Hussein,D.Ruan,G.Lu. An analytical model of square CFRP tubes subjected to axial compression. Composites Science and Technology. 2018. 168 : 170–178p.
  26. Pickett,V.Dayal. Effect of tube geometry and ply-angle on energy absorption of a circular glass/epoxy crush tube – A numerical study. Composites Part B: Engineering. 2012. 43(8):
    2960–2967p.
  27. Zhang,W.Sun,Y.Zhao. Crashworthiness of different composite tubes by experiments and simulations. Composites Part B: Engineering. 2018. 143(15): 86–95p.
  28. Sun, S. Li, G. li. On crashing behaviours of aluminium/CFRP tubes subjected to axial and oblique loading: an experimental study. Composites Part B: Engineering. 2018. 145(15): 47–56p.
