Influence of Aspect Ratio on the Mechanical and Tribological Properties of Vertical Centrifugal Cast Aluminium Silicon Alloy

Open Access

Year : 2024 | Volume :11 | Special Issue : 13 | Page : 104-111
By

Smrutirekha Sen

J. Sudheer Reddy

B.K. Muralidhara

  1. Professor Department of Mechanical Engineering, Odisha University of Technology & Research, Bhubaneswar Odissa India
  2. Professor Department of Mechanical Engineering,Nitte Meenakshi Institute of Technology Karnataka India
  3. Professor Department of Mechanical Engineering,Nitte Meenakshi Institute of Technology Karnataka India

Abstract

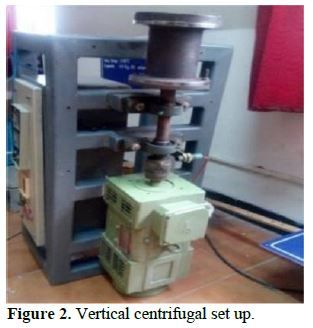

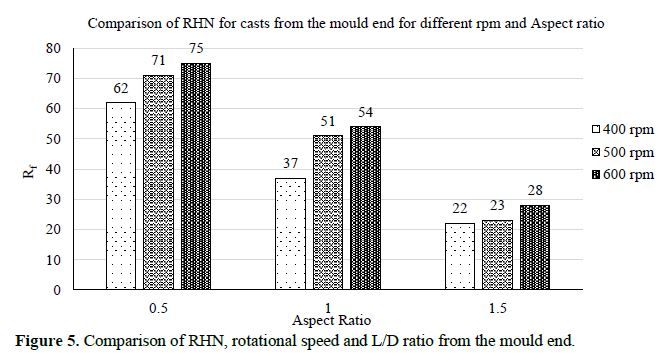

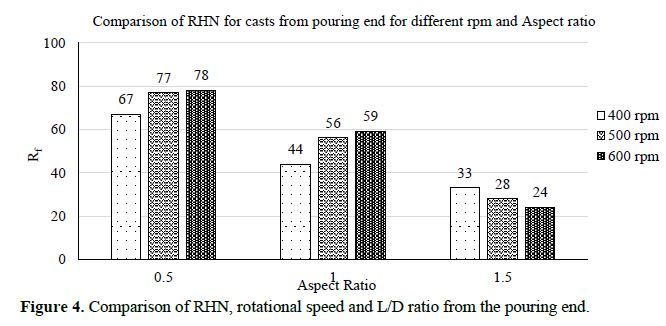

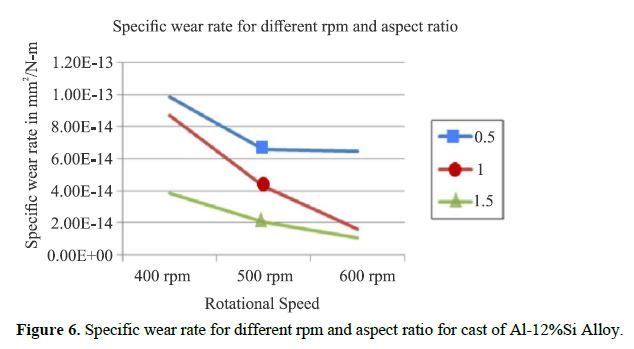

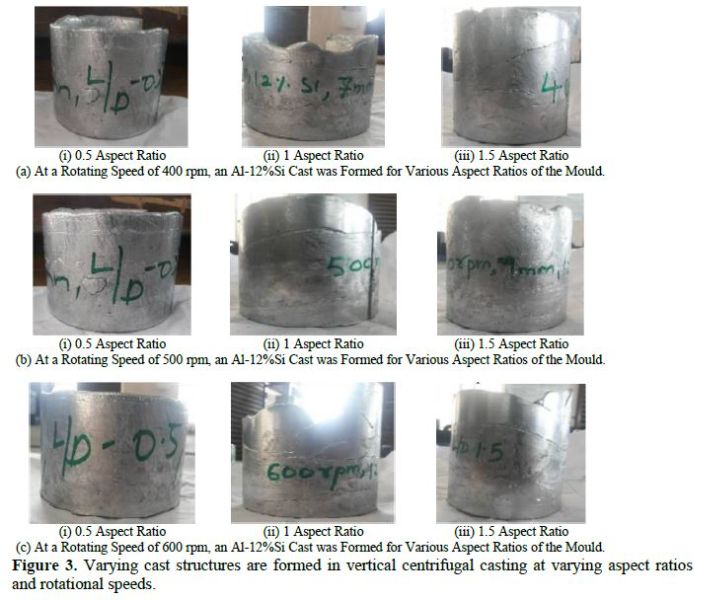

To get a sound cast of precise shape and size in the vertical centrifugal casting process, the flow behavior of the melt and process parameters such as aspect ratio of the mould, rotating speed, volume fraction, etc. must be optimized. The optimal parameters of the vertical centrifugal casting process derived from past cold modelling studies in casting of Al-12%Si alloy are investigated in this paper. Casts were obtained using 7 mm thick mould having l/d ratio of 0.5,1 and 1.5 at 400,500 and 600 rotational speed of mould. Specific Wear Rate (SWR) and Hardness of Vertical Centrifugal Cast Al- 12%Si alloy specimens were studied and also microstructure of those specimens was examined. The casts made at 400 and 600 rpm appeared with coarse and fine microstructures respectively. The hardness of the alloy rises with increasing rotational speed for both 0.5 and 1.0 aspect ratio of mould. However, hardness value of casts at 1.5 aspect ratio of mould was found decreased because of insufficient driving force and larger time taken to reach the end of the cylinder. The hardness of the cast specimens was found to be higher for higher l/d ratio. Similarly the hardness at the pouring end is more compared to the mould end of the specimen. It was observed that Specific Wear Rate of cast specimens prepared at 400 rotational speed of mould was higher than those prepared at 600 rpm.

Keywords: Aluminium silicon alloy, vertical centrifugal cast, wear.

[This article belongs to Special Issue under section in Journal of Polymer and Composites(jopc)]

How to cite this article: Smrutirekha Sen, J. Sudheer Reddy, B.K. Muralidhara. Influence of Aspect Ratio on the Mechanical and Tribological Properties of Vertical Centrifugal Cast Aluminium Silicon Alloy. Journal of Polymer and Composites. 2024; 11(13):104-111.
How to cite this URL: Smrutirekha Sen, J. Sudheer Reddy, B.K. Muralidhara. Influence of Aspect Ratio on the Mechanical and Tribological Properties of Vertical Centrifugal Cast Aluminium Silicon Alloy. Journal of Polymer and Composites. 2024; 11(13):104-111. Available from: https://journals.stmjournals.com/jopc/article=2024/view=134038

Full Text PDF Download

Browse Figures

References

  1. Zhang B M, Centrifugal Casting, 1st edn, 298-309; Beijing, China Machine Press, (2009).
  2. Nathan Janco, Centrifugal Casting , ‎ Amer Foundry Society, 1988.
  3. Shailesh Rao Agari, S. R., Mukunda, P. G., Rao, S. S., & Sudhakar, K. G,Interence of optimal speed for sound centrifugal casting of Al-12Si alloys, JOM, 63(5), 25–29. (2011)
  4. Smrutirekha Sen, BK Muralidhara, PG Mukunda, Study of flow behaviour in vertical centrifugal casting,Advances in materials and manufacturing applications (IConAMMA 2018) Materials Today Proceedings, Volume 24, Pages1392–1399, (2020)
  5. Smrutirekha Sen, Sudheer Reddy, BK Muralidhara, PG Mukunda, Effect of cast thickness on properties of Al-Si Cast obtained by vertical centrifugal process, AIP Conference Proceedings,Volume2204,issue- 1(2020),
  6. Smrutirekha Sen,Sudheer reddy,B K Muralidhara,P G Mukunda, Influence of rotational speed and aspect ratio on the flow patterns of different fluids subjected to rotation about vertical axis, Materials Research Express, Volume 6, Number 5(.2019)

7.       Amit M Joshi, “Centrifugal casting”, Dept. of Metallurgical Engg. & Material Science, Indian Institute of Technology – Bombay, India.

  1. P G Mukunda, A Shailesh Rao, An understanding of fluid behavior in Centrifugal casting, AFT/TFI -2007, Commemoration of the 100th Anniversary of Tohoku University, December 14–15, Sendai, Miyagi, Japan. (2007)
  2. Madhusudhan, Narendranath S, Mohan kumar G C, Experimental study on cooling rate of centrifugal casting based on grain size. International Journal of scientific & engineering research.Volume 3,issue 1,(2012)
  3. Sufei Wei, Centrifugal casting, The centrifaugal casting machine company, & Steve Lampman, ASM International, Vol 15 p 667–673., (2008)
  4. G. Mukunda, R. A. Shailesh, A.S. Kiran, and S.R. Shrikanth, Experimental studies of flow patterns of different fluids in a partially filled raotating cylinder Vol.2, No, pp. 39–43 (2009).
  5. K S Keerthi Prasad, Analysis of fluid flow in Centrifugal casting, Front. Mater.Sci.China, 4(1): 103–110. (2010)
  6. Madhusudhan et al., Effect of mould wall thickness on rate of solidification of centrifugal casting, International Journal of Engineering Science and Technology Vol. 2(11), 6092–6096. (2010)
  7. Chirita, G., D., & Silva, F. S. “Advantages of the centrifugal casting technique for the production of structural components with Al-Si alloy”. Materials & Design, 29(1), 20–27. (2008).
  8. Chang, S R, Kim J M and Hong C P Numerical simulation of microstructure evolution of Al alloys in centrifugal casting, ISIJ International, 41(7), 738–747. (2001),
  9. Shailesh Rao., Influence of rotational speed of Centrifugal casting Process on appearance, Microstructure and sliding Wear behavior of Al-2Si Cast alloy metal. Mater. Int. Vol 16, no. 1 137–143, (2010).
  10. Chirita, G., Stefanescu, I., Barbosa, J., H., Soares, D., & Silva, F. S. On assessment of processing variables in vertical centrifugal casting technique, International Journal of cast Metals Research, 22(5), 382–389. (2009),
  11. K S Keerthi Prasad,M S Murali, S C Sharma & P G Mukunda,Characterization of Microstructure of Al-Si Alloy in Centrifgal casting, ISSN 0973-4589 Vol 4, pp, 151–155, (2009).
  12. Madhusudhan, Narendranath S, Mohan kumar G C, Mukunda P, Effect of mould wall thickness on rate of solidification of centrifugal casting,International Journal of engineering science on technology vol.2(11), 6092 – 6096., (2010)
  13. Sui Yanwei, Li Bangsheng, Liu Aihui, Guo Jimgjie and Fu Hngzhi.(2009), Evoluation of microstructure in centrifugal cast Al-4%Cu alloy, China Foundry, Article ID: 1672–6421(2010)01-043-04, (2010)
  14. K. Rohatgi, C. S Narendranath, G.S Cole, Solidification analysis on centrifugal casting metal material composites containing graphite particles, ISIJ International,(10), 247–254. (1994),
  15. Madhusudhan, Narendranath S, G C Mohan kumar,Properties of Centrifugal casting at different rotational speeds of the die, International journal of Emerging Technology and Advanced Engineering, vol.3(2013)
Special Issue Open Access Original Research
Volume 11
Special Issue 13
Received October 30, 2023
Accepted December 26, 2023
Published March 2, 2024
