Experimental Investigation on Heat Transfer Characteristics of Thermal Barrier Coating on Aero Engine Components

Open Access

Year : 2024 | Volume :11 | Special Issue : 13 | Page : 50-58
By

Srikanth H.V.

Fareen Nizami

Suthan R

  1. Associate Professor Department of Aeronautical Engineering, Nitte Meenakshi Institute of Technology Karnataka India
  2. Assistant Professor Department of Aeronautical Engineering, Nitte Meenakshi Institute of Technology Karnataka India
  3. Research Scholar epartment of Mechanical Engineering, NITK Tamil Nadu India

Abstract

The gas turbine blades play a crucial role in harnessing energy from the high-temperature and highpressure
gas generated by the combustor. To withstand this challenging environment, turbine blades
often employ super-alloys and incorporate new manufacturing technologies such as Direct
Solidification (DS) and Single Crystal (SC). Additionally, the development of advanced ceramic
Thermal Barrier Coating (TBC) is imperative to achieve higher operating temperatures (>1200°C).
Therefore, the primary focus of this study is on advancing TBC with reduced thermal conductivity and

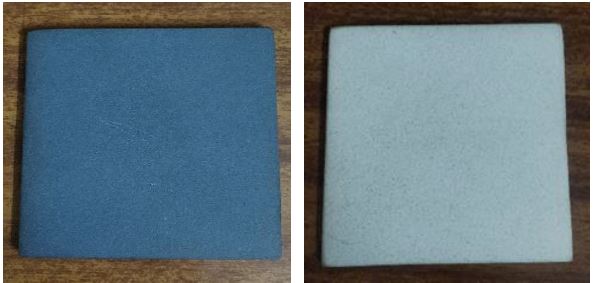

increased operating temperature, without imposing a significant weight penalty on components. Two
sample specimens, measuring 75 mm × 75 mm × 10 mm, were manufactured from SS 316L and 8%
Yttrium Stabilized Zirconia (YSZ-ZrO2.Y2O3), as well as 8% Yttria Stabilized Alumina (YSAAl2O3.
Y2O3). These specimens were coated with a bond coat of Nickel Chromite (NiCr) using the

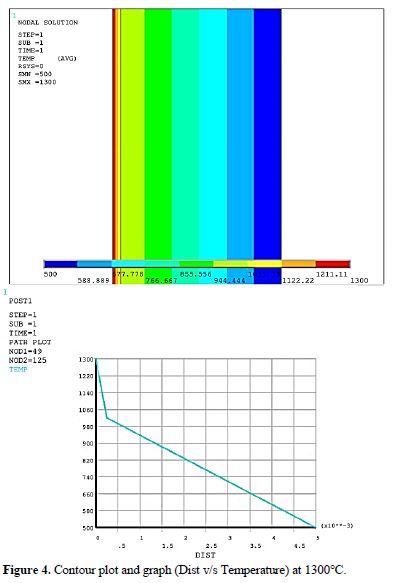

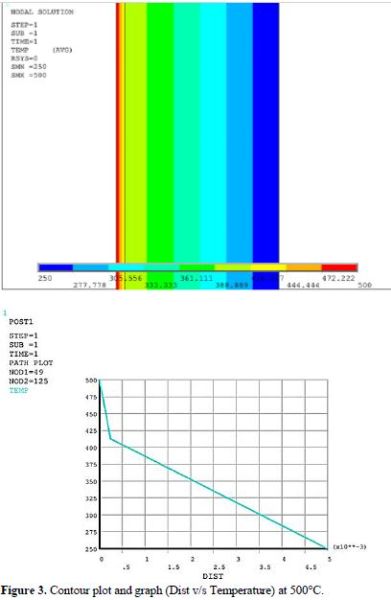

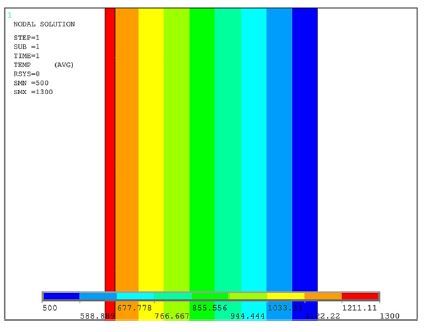

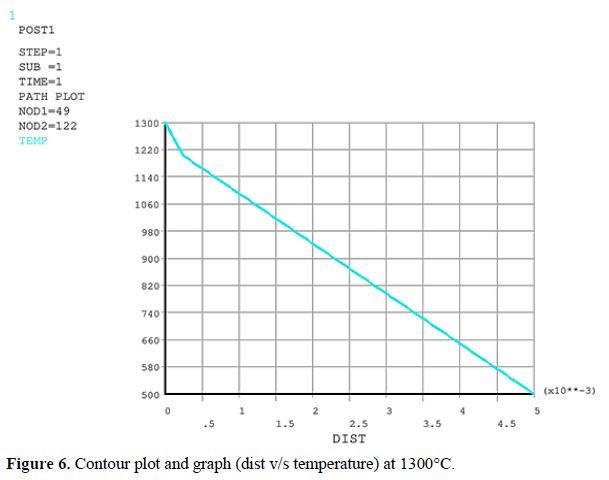

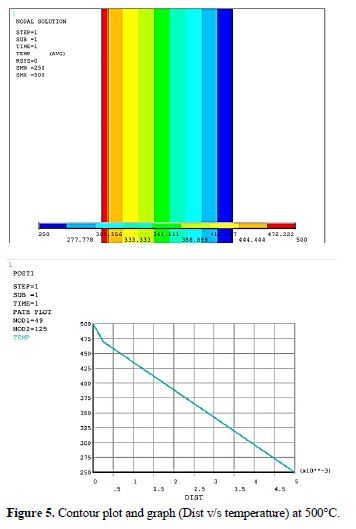

Atmospheric Plasma Spray Method (APS). The temperature variations across a 250 μm layer of 8%

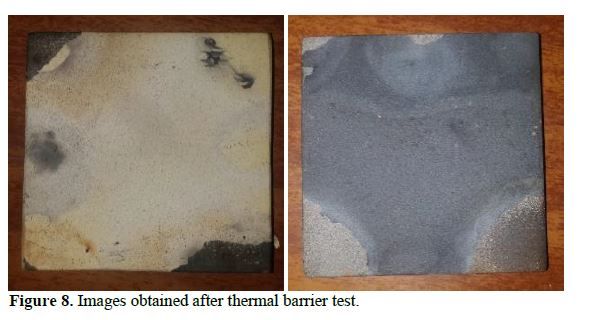

YSZ and 8% YSA were analyzed through both simulation and thermo-mechanical tests. This analysis
aims to elucidate the efficacy of TBC materials in enhancing the operational limits of components
subjected to elevated temperatures, particularly in aerospace and automobile applications.

Keywords: Thermal Barrier Coating, Yttrium Stabilized Zirconia, Yttrium Stabilized Alumina. plasma spray method, heat transfer, turbine blades

[This article belongs to Special Issue under section in Journal of Polymer and Composites(jopc)]

How to cite this article: Srikanth H.V., Fareen Nizami, Suthan R. Experimental Investigation on Heat Transfer Characteristics of Thermal Barrier Coating on Aero Engine Components. Journal of Polymer and Composites. 2024; 11(13):50-58.
How to cite this URL: Srikanth H.V., Fareen Nizami, Suthan R. Experimental Investigation on Heat Transfer Characteristics of Thermal Barrier Coating on Aero Engine Components. Journal of Polymer and Composites. 2024; 11(13):50-58. Available from: https://journals.stmjournals.com/jopc/article=2024/view=133592

Full Text PDF Download

Browse Figures

References

  1. Robert Schafrik, Robert Sprague, Superalloy Technology-A Perspective on Critical Innovations for Turbine Engines, Key Engineering Materials, Vol. 380, pp 113–134,2008-03-25.
  2. Griffith, T.S., Al-Hadhrami. L, and Han, J.C., Heat Transfer in Rotating Rectangular Cooling Channels (AR = 4) with Dimples, in ASME Turbo Expo 2002: Power for Land, Sea, and Air, American Society of Mechanical Engineers, pp. 551–560, 2002.
  3. Julian Girardeau, Jérôme Pailhes, Patrick Sebastian, Jean-Pierre Nadeau, Frédéric Pardo, Turbine Blade Cooling System Optimization, Journal of Turbomachinery ,Vol. 135,p.061020-061020 – 2013.
  4. Zhongran Chi, Haiqing Liu, Shusheng Zang, Semi-Inverse Design Optimization Method for Film-Cooling Arrangement of High-Pressure Turbine Vanes, Journal of Propulsion and Power 32(3):1-15, December 2015.
  5. Benjamin Bernard, Aurélie Quet, Luc Bianchi, Aurélien Joulia, André Malié, Vincent Schick, Benjamin Rémy, Thermal insulation properties of YSZ coatings: Suspension Plasma Spraying (SPS) versus Electron Beam Physical Vapor Deposition (EB-PVD) and Atmospheric Plasma Spraying (APS), Surface and Coatings Technology. (2016).
  6. V, Reghu V.R, Parvati Ramaswamy and Kevin Vattappara, Lab Scale Preparation and Evaluation of Yttria Stabilized Zirconia Thermal Barrier Coatings and its Influence on the Diesel Engine Performance, Journal of Recent advances in Mechanical Engineering (IJMECH) Vol.5, No.2, May 2019.
  7. R, Gas turbine coatings – An overview, Engineering Failure Analysis 26 (2012) pp 355–369.
  8. Kirti Teja Pasupuleti, Souvik Ghosh, Parvati Ramaswamy and SVS Narayana Murty, Zirconia based pyrochlore thermal barrier coatings,IOP Conf. Series: Materials Science and Engineering, 2019
  9. Jing Zhang, Xingye Guo, Yeon-Gil Jung, Li Li, James Knapp, Lanthanum Zirconate Based Thermal Barrier Coatings: A Review, Surface & Coatings Technology Volume 323, 25 August 2017, Pages 18-29.
  10. Zhanga X.F, Zhoua K.S, Liu. M, Deng C.M, Deng C.G, Mao. J, Deng Z.Q, Mechanisms governing the thermal shock and tensile fracture of PS-PVD 7YSZ TBC, Ceramic International volume 44 issue 4 March 2018 pages 3973–3980.
  11. Federico Cernuschi, Paolo Bison, Daniel E. Mack, Marco Merlini, Stefano Boldrini, Stefano Marchionna, Stefano Capelli, Stefano Concari, Alessia Famengo, Alessandro Moscatelli, Werner Stamm, Thermo-physical properties of as deposited and aged thermal barrier coatings (TBC) for gas turbines: State-of-the art and advanced TBCs, Journal of the European Ceramic Society Volume 38, Issue 11, September 2018, Pages 3945–3961.
  12. Satyapal Mahadea, Nicholas Curry, Krishna Praveen Jonnalagadda, Ru Lin Peng, Nicolaie Markocsan, Per Nylén, Influence of YSZ layer thickness on the durability of gadolinium zirconate/ YSZ double-layered thermal barrier coatings produced by suspension plasma spray- Journal of Surface and Coatings Technology Volume 357, 15 January 2019, Pages 456–465.
Special Issue Open Access Original Research
Volume 11
Special Issue 13
Received December 11, 2023
Accepted January 18, 2024
Published February 26, 2024
