Exploration of Mechanical Characteristics and Microstructural Analysis of Copper Matrix Composites with Hybrid Reinforcements via Muffle Furnace Sintering

Open Access

Year : 2024 | Volume : 11 | Special Issue : 12 | Page : 119-126
By

    Avinash Sharma

  1. Rajesh Kr Porwal

  1. Assitant Professor, Allenhouse Institute of Technology,Kanpur, Uttar Pradesh, India
  2. Professor, Faculty of Mechanical Engineering, Institute of Technology, Shri Ramswaroop Memorial University, Uttar Pradesh, India

Abstract

Metal Matrix Composites (MMCs) have drawn a lot of interest in the area of innovative materials because of how widely they may be used. Due to their extraordinary qualities, such as high thermal conductivity, higher temperature endurance, improved corrosion resistance, and great weldability, copper matrix composites stand out among them. These qualities make them desirable and promising materials for uses including heat exchangers, automotive parts, and electrical components.

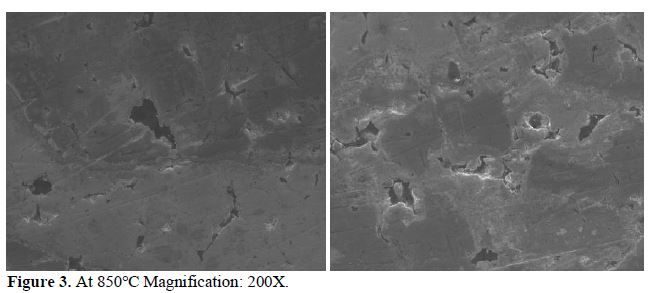

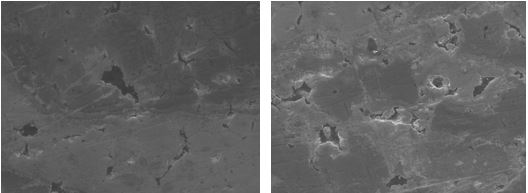

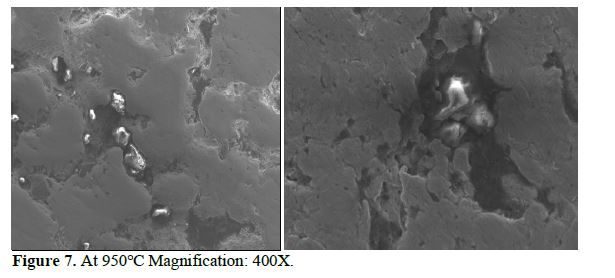

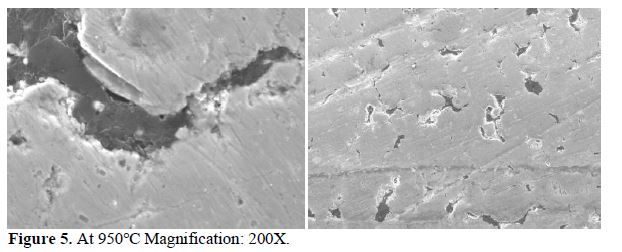

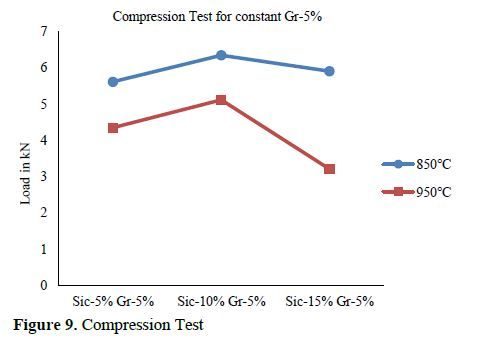

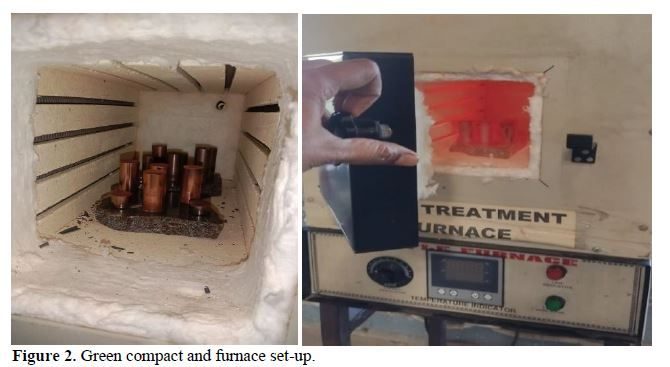

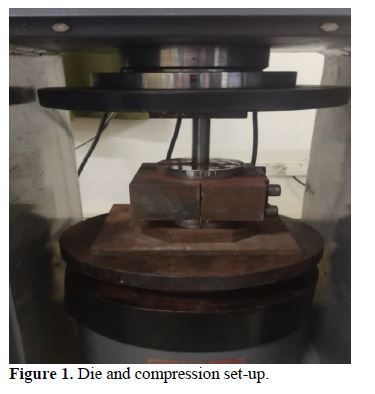

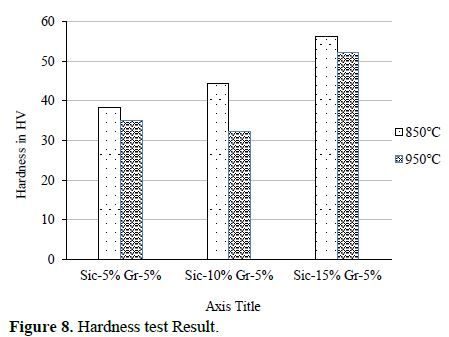

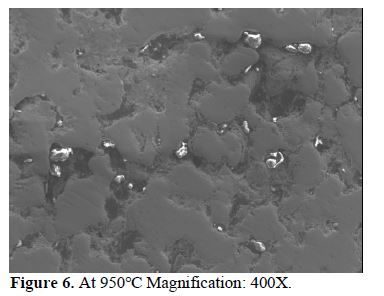

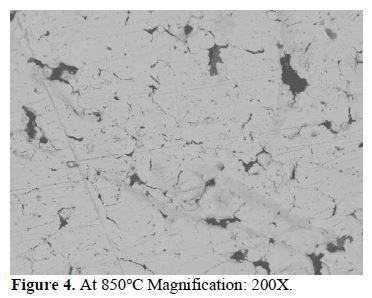

In this investigation, Copper Matrix Metal Composites (MMCs) were processed by employing muffle furnace sintering techniques. The study documents enhancements in mechanical properties, specifically compressive strength and hardness, with an increase in the content of reinforcing materials. For this research, six distinct metal matrix composite specimens were fabricated, utilizing pure copper (Cu) as the base material. Each time, the copper was reinforced with silicon carbide (SiC), and graphite was added as a constant additive at a consistent volume fraction (5%). A powder state mixing technique was employed to combine the various constituents. Following the mixing process, the powders were introduced into metallic molds, and the specimens were subsequently sintered using a muffle furnace under an inert gas atmosphere at different temperatures (850 °C and 950 °C), with varying soaking times. Multiple tests, including hardness assessments, compressive strength measurements, and microstructure analysis, were conducted on the composite specimens. The results indicated that sintering at 850 °C resulted in the production of a more effectively fused matrix compared to rapid sintering at 950 °C, leading to significantly improved mechanical properties, particularly in terms of compressive strength. This improvement was particularly noticeable at 15% SiC with 5% graphite content when sintered at 850 °C.

Keywords: Copper, Graphite,Silicon Carbide, Hardness Test, Microstructure Test, Microwave Sintering, Compressive Test

[This article belongs to Special Issue under section in Journal of Polymer and Composites(jopc)]

How to cite this article: Avinash Sharma, Rajesh Kr Porwal Exploration of Mechanical Characteristics and Microstructural Analysis of Copper Matrix Composites with Hybrid Reinforcements via Muffle Furnace Sintering jopc 2024; 11:119-126
How to cite this URL: Avinash Sharma, Rajesh Kr Porwal Exploration of Mechanical Characteristics and Microstructural Analysis of Copper Matrix Composites with Hybrid Reinforcements via Muffle Furnace Sintering jopc 2024 {cited 2024 Feb 16};11:119-126. Available from: https://journals.stmjournals.com/jopc/article=2024/view=131310

Full Text PDF Download

Browse Figures

References

Zhou W, Xu ZM. Casting of SiC reinforced metal matrix composites. Journal of materials processing technology. 1997 Jan 1;63(1-3):358-63.
Andrievski RA. Synthesis, structure and properties of nanosized silicon carbide. Rev. Adv. Mater. Sci. 2009 Dec 1;22:1-20.
Alam MT, Ansari AH. High strength aluminium-silicon carbide composite casting. Indian foundry Journal. 2014 Mar;60(3):25-32.
Prakasan K, Seshan S. Microstructure and properties of squeeze cast Cu-carbon fibre metal matrix composite. Journal of materials science. 1999 Oct;34:5045-9.
Chawla N, Shen YL. Mechanical behavior of particle reinforced metal matrix composites. Advanced engineering materials. 2001 Jun;3(6):357-70.
Orumwense FF, Okorie BA, Okeakpu EO, Obiora EN, Onyeji LI. Sintered copper–graphite powder compacts for industrila applications. Powder metallurgy. 2001;44(1):62.
Dewidar MM, Lim JK. Manufacturing processes and properties of copper—graphite composites produced by high frequency induction heating sintering. Journal of composite materials. 2007 Sep;41(18):2183-94.
Ramesh CS, Ahmed RN, Mujeebu MA, Abdullah MZ. Development and performance analysis of novel cast copper–SiC–Gr hybrid composites. Materials & Design. 2009 Jun 1;30(6):1957-65.
Chandrakanth RG, Rajkumar K, Aravindan S. Fabrication of copper–TiC–graphite hybrid metal matrix composites through microwave processing. The International Journal of Advanced Manufacturing Technology. 2010 May;48:645-53.
Gupta P, Kumar D, Parkash OM, Jha AK. Structural and mechanical behaviour of 5% Al 2 O 3-reinforced Fe metal matrix composites (MMCs) produced by powder metallurgy (P/M) route. Bulletin of Materials Science. 2013 Oct;36:859-68.
Ibrahim IA, Mohamed FA, Lavernia EJ. Particulate reinforced metal matrix composites—a review. Journal of materials science. 1991 Mar;26:1137-56.
Zhan Y, Zhang G. Friction and wear behavior of copper matrix composites reinforced with SiC and graphite particles. Tribology Letters. 2004 Jul;17:91-8.
Attar S, Nagaral M, Reddappa HN, Auradi V. A review on particulate reinforced aluminum metal matrix composites. Journal of Emerging Technologies and Innovative Research. 2015 Feb;2(2):225-9.
Xiao Y, Zhang Z, Yao P, Fan K, Zhou H, Gong T, Zhao L, Deng M. Mechanical and tribological behaviors of copper metal matrix composites for brake pads used in high-speed trains. Tribology International. 2018 Mar 1;119:585-92.
Loganathan P, Rajkumar K, Gnanavelbabu A, Vishal K. Aluminium Silicate Concentration and Coordination effect with Tungsten sulphide improving Dry Sliding Wear Characteristics of AA7075 alloy Composites. Silicon. 2022 Dec;14(18):12615-31.


Special Issue Open Access Original Research
Volume 11
Special Issue 12
Received October 30, 2023
Accepted November 20, 2023
Published February 16, 2024
