Open Access
John K. Njagi,
Steven O. Otieno,
Fredrick M. Mwema,
Peter N. Muchiri,
1. M.Sc Student, Department of Mechanical Engineering, Dedan Kimathi University of Technology, Nyeri, Kenya
2.Teaching Assistant, Department of Mechanical Engineering, Dedan Kimathi University of Technology, Nyeri, Kenya
3.1 Senior Lecturer, Department of Mechanical Engineering, Dedan Kimathi University of Technology, Nyeri, Kenya
3.2 Researcher, Department of Mechanical Engineering Science, University of Johannesburg, Auckland Park Campus, Johannesburg, South Africa
4. Professor, Department of Mechanical Engineering, Dedan Kimathi University of Technology, Nyeri, Kenya
Abstract

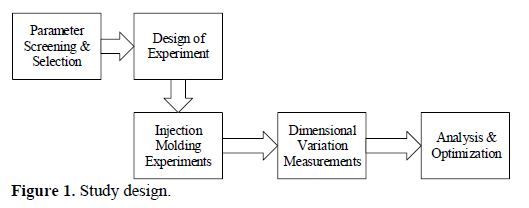

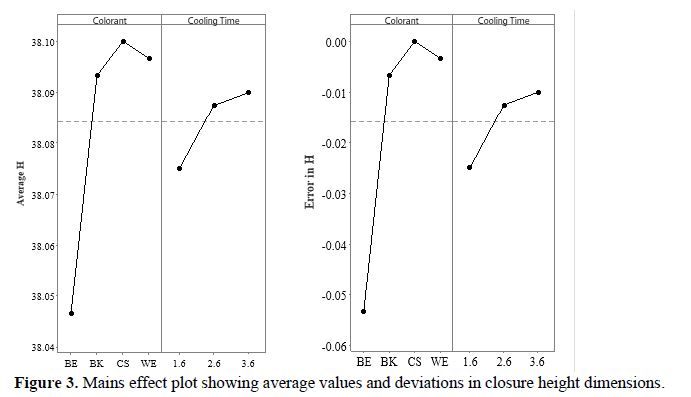

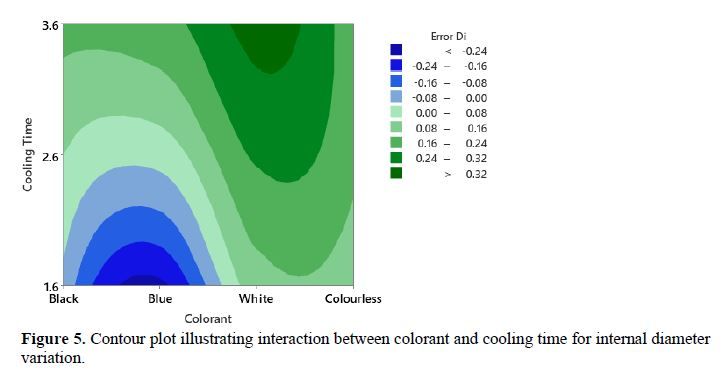

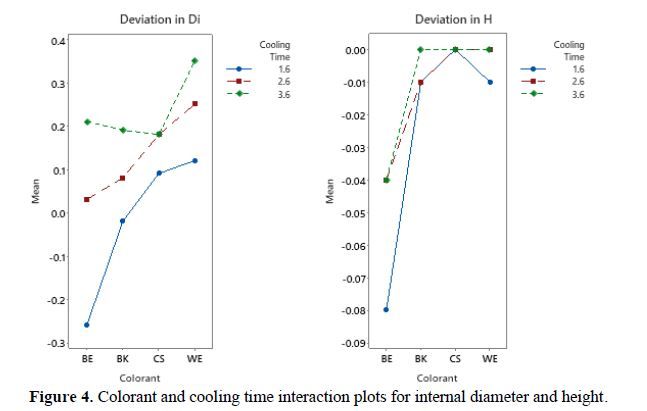

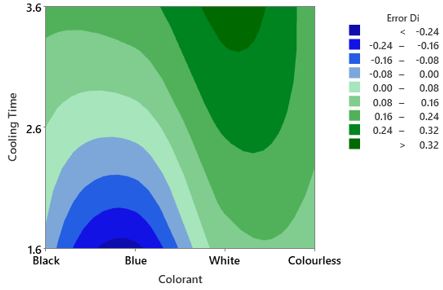

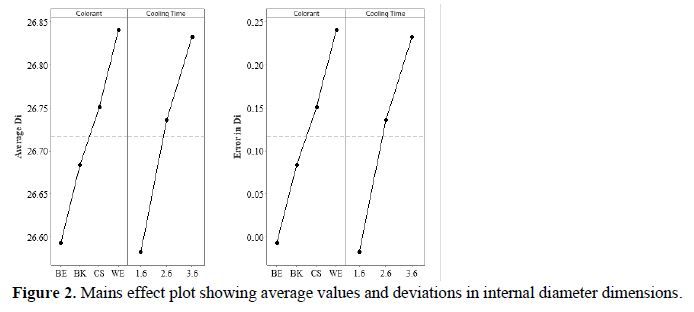

Dimensional accuracy is a critical aspect of precision injection molding, with the products generally required to conform to set tolerances. Major causes of these deviations are reported to be related to the polymer material, part geometry, injection mold design, and process parameters. This study investigated the effects of material color pigment and its interaction with process cooling time on product dimensional accuracy. This study was conducted experimentally, where three levels of cooling time and four material color pigment types were used to design a complete factorial experiment. The injection molding process used a 32-cavity injection mold to form closures at parameter combinations. The lateral and transverse dimensions of the samples produced from each experiment were measured, and averages were computed. Mains effect and interaction effect plots were made to determine the impact of process parameters on dimensional variation. Closures made from blue colorants had the lowest dimensional error, whereas white paint had the most significant dimensional error. The lower dimensional error was obtained for all the colors at more down-cooling times. The relationship between colorant and dimensional deviation depends on the cooling time for both dimensions. Cooling time (48%) and paint (37%) significantly affected the dimensional stability of the internal diameter.

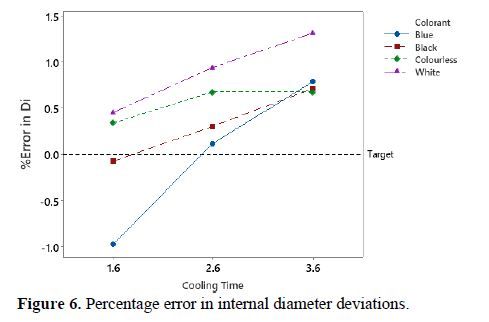

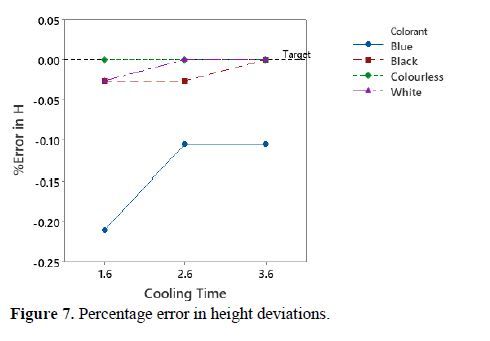

In contrast, only colorant (83%) and cooling time (48%) significantly affected the dimensional stability of the closure height and external diameter, respectively. To obtain zero-dimensional error, a black pigment could be used with a process cooling time of 1.8s, while a blue pigment material could be used with a cooling time of 2.6s. The result of this study provides insight into process cooling time optimization for dimensional error control at different material pigment colors.
Keywords: Injection molding, dimensional accuracy, cooling time, color pigments
[This article belongs to Special Issue under section in Journal of Polymer and Composites (jopc)]
John K. Njagi, Steven O. Otieno, Fredrick M. Mwema, Peter N. Muchiri. The effect of cooling time and colorant pigment on the dimensional accuracy of plastic injection molded closure. Journal of Polymer and Composites. 2024; 11(12):93-100.
John K. Njagi, Steven O. Otieno, Fredrick M. Mwema, Peter N. Muchiri. The effect of cooling time and colorant pigment on the dimensional accuracy of plastic injection molded closure. Journal of Polymer and Composites. 2024; 11(12):93-100. Available from: https://journals.stmjournals.com/jopc/article=2024/view=131291
Browse Figures
References
N. M. Mehat and S. Kamaruddin, “Quality control and design optimisation of plastic product using Taguchi method: A comprehensive review,” Int. J. Plast. Technol., vol. 16, no. 2, pp. 194–209, 2012, doi: 10.1007/s12588-012-9037-1.
M. Sorgato, D. Masato, and G. Lucchetta, “Effect of vacuum venting and mold wettability on the replication of micro-structured surfaces,” Microsyst. Technol., vol. 23, no. 7, pp. 2543–2552, 2017, doi: 10.1007/s00542-016-3038-5.
D. Masato, M. Sorgato, and G. Lucchetta, “Analysis of the influence of part thickness on the replication of micro-structured surfaces by injection molding,” Mater. Des., vol. 95, pp. 219–224, 2016, doi: 10.1016/j.matdes.2016.01.115.
M. R. Mani, R. Surace, P. Ferreira, J. Segal, I. Fassi, and S. Ratchev, “Process parameter effects on dimensional accuracy of micro-injection moulded part,” J. Micro Nano-Manufacturing, vol. 1, no. 3, pp. 1–8, 2013, doi: 10.1115/1.4025073.
D. Masato, J. Rathore, M. Sorgato, S. Carmignato, and G. Lucchetta, “Analysis of the shrinkage of injection-molded fiber-reinforced thin-wall parts,” Mater. Des., vol. 132, no. 2016, pp. 496–504, 2017, doi: 10.1016/j.matdes.2017.07.032.
C. C. Kuo and H. Y. Liao, “Dimensional accuracy optimization of the micro-plastic injection molding process using the taguchi design method,” Mater. Sci., vol. 21, no. 2, pp. 244–248, 2015, doi: 10.5755/J01.MS.21.2.5864.
X. He and W. Wu, “A practical numerical approach to characterizing non-linear shrinkage and optimizing dimensional deviation of injection-molded small module plastic gears,” Polymers (Basel)., vol. 13, no. 13, 2021, doi: 10.3390/polym13132092.
O. S. Kamber, “The effects of injection parameters and foaming agent on dimensional accuracy of produced parts in plastic injection molding,” Acta Phys. Pol. A, vol. 135, no. 5, pp. 1028–1032, 2019, doi: 10.12693/APhysPolA.135.1028.
F. Baruffi, M. Calaon, and G. Tosello, “Effects of micro-injection moulding process parameters on accuracy and precision of thermoplastic elastomer micro rings,” Precis. Eng., vol. 51, pp. 353–361, 2018, doi: 10.1016/j.precisioneng.2017.09.006.
