Fractal Analysis of Vertical Component of VLF Electric Field Related to Major Shallow Earthquakes (5.5 < M ≤ 5.9, depth ˂ 10 km) occurred in Indian Ocean and China

Open Access

Year : 2023 | Volume :11 | Special Issue : 07 | Page : 46-52

Raj Pal Singh

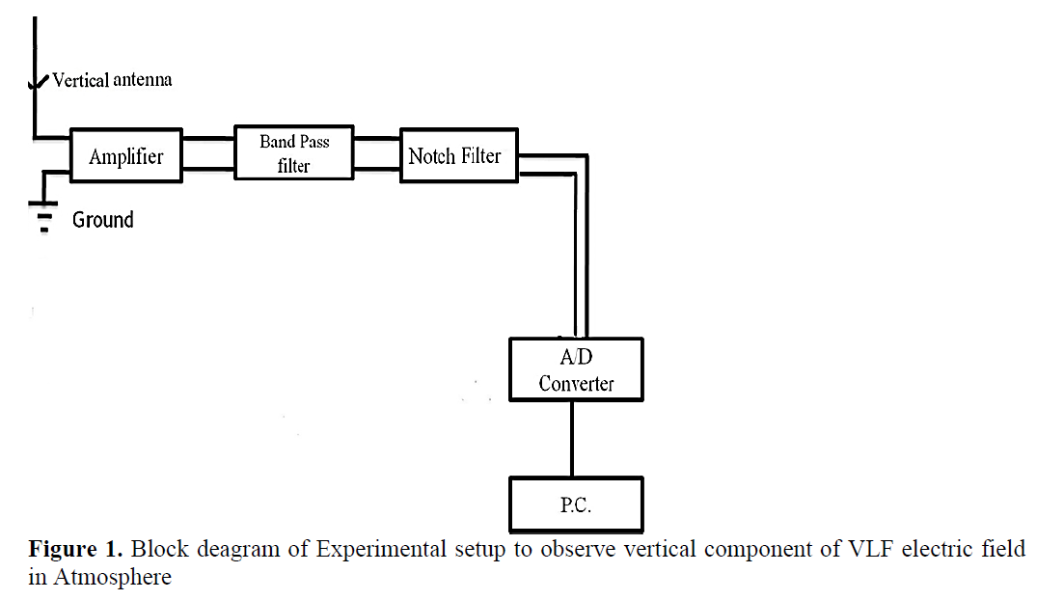

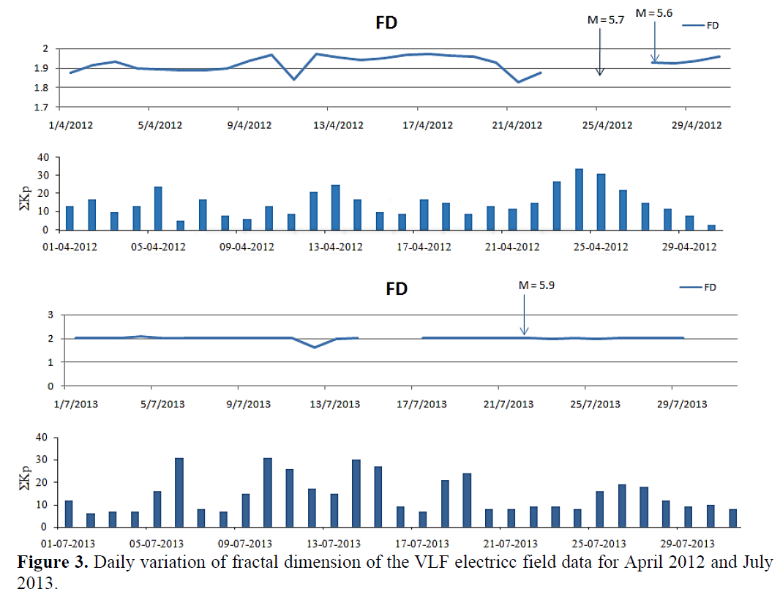

Recording of amplitude of vertical component of VLF electric field is continued at Chaumuhan, Mathura (27.5° N, 77.68° E) at the frequency f = 3.012 kHz from 24 March 2011 with the help of vertical antenna. In this paper, fractal analysis of VLF data is carried out for the April 2012 and July 2013 months and the fractal dimension is computed using Higuchi’s method to study the influence of three shallow and major seismic events (5.5 < M ≤ 5.9, depth˂10 km) that happened in Indian ocean and China on the recorded data on it. Analysis of data yielded a decrease in fractal dimension, 6–14 days prior to onset of quakes considered. In addition to this, the effect of lightning activity, magnetic storms local building noises and power line emissions is examined on fractal dimension of VLF data. It is found that the said factors do not influence the fractal dimension of VLF data.

Keywords: Earthquakes, Terrestrial antenna, VLF data, Fractal analysis, Higuchi’s method

[This article belongs to Special Issue under section in Journal of Polymer and Composites(jopc)]

How to cite this article: Raj Pal Singh. Fractal Analysis of Vertical Component of VLF Electric Field Related to Major Shallow Earthquakes (5.5 < M ≤ 5.9, depth ˂ 10 km) occurred in Indian Ocean and China. Journal of Polymer and Composites. 2023; 11(07):46-52.
How to cite this URL: Raj Pal Singh. Fractal Analysis of Vertical Component of VLF Electric Field Related to Major Shallow Earthquakes (5.5 < M ≤ 5.9, depth ˂ 10 km) occurred in Indian Ocean and China. Journal of Polymer and Composites. 2023; 11(07):46-52. Available from:

Full Text PDF Download

Browse Figures


Gokhberg MB, Morgunov VA, Yoshino T, et al. “Experimental measurement of electromagnetic emissions possibly related to earthquakes in Japan”. J. Geophys. Res. 1982; 87(B9): 7824–28p.

Singh RP, Mishra PK, Singh B. “Anomalous VLF electric field perturbation associated with Chamoli earthquakes of March/April 1999”. Current Science. 2001; 80: 1416–21p.
Liu JY, Chen YI, Chen CH, et al. “Seismo-ionospheric GPS Total Electron Content anomalies observed before the 12 May 2008 Mw 7.9 Wenchuan earthquake” J. Geophys. Res. 2009; 114: 1–10p.
Pundhir D, Singh B, Singh OP. “Anomalous TEC variation associated with the strong Pakistan-Iran border region earthquake of 16 April 2013 at low latitude station Agra” India. Adv. Space Res. 2014; 53: 226–32p.
Nitsan U. “Electromagnetic emissions accompanying fractures of quartz bearing rocks” Geophys. Res. Lett. 1977; 4: 333–37p.
Yavorovich LV, Bespalko AA, Fedetov PI, et al. “Electromagntic radiations generated by acoustic excitation of rock samples” Acta Geophys. 2016; 64: 1446-61p.
Hayakawa M. “Frontier of earthquake prediction studies”, Nihon-Senmontosho-shuppan, Pub. Co. Tokyo; 2012.
Grobbe N, Revil A, Zhu Z, et al. “Sesmoelectric Exploration:- Theory, Experiments and Application” John Willey and Sons; 2020.
Ida Y, Hayakawa M. “Fractal analysis for the ULF data during the 1993 Guam earthquake to study prefracture criticality” Nonlin. Proc. Geophys. 2006; 13: 409–12p.
Yonaiguchi N, Ida Y, Hayakawa M, et al. “Fractal analysis for VHF electromagnetic noises and the identification of preseismic signature of an earthquake” J. Atoms. Solar-Terr. Phys. 2007; 69: 1825–32p.
Gotoh K, Hayakawa M, Smirnova NA, et al. “Fractal analysis of the geomagnetic data obtained at Izu peninsula, Japan in relation to the nearby earthquake swarm of June-August 2000” Nat. Haz. Earth Syst. Sci. 2003; 3: 229–36p.
Hayakawa M. “Atmospheric and Ionospheric Electromagnetic phenomena associated with earthquake” Tokyo, Japan: Terra. Sci. Pub. Co; 1999.
Smirnova N, Hayakawa M, Gotoh K, “Precursory behavior of fractal characteristics of the ULF electromagnetic fields in seismic active zones before strong earthquakes” Phys. Chem. Earth. 2004; 29: 445–51p.
Varotsos P. “Physics of Seismic Electric Signals” TERRAPUB, Tokyo; 2005.
Swati, Singh B, Pundhir D, et al. “Fractal analysis of Ultra Low Frequency magnetic field emissions observed at Agra associated with two major earthquakes occurred in Pakistan” Journal of Atmospheric Electricity. 2020; 39: 1–15p.
Sumimoto N. What kind of electromagnetic phenomena originating in earth crust are observable at earth surface? Hayakawa M, Fujinawa Y, editors. in Electromagnetic phenomena related to earthquake prediction. Tokyo: Terr Sci; 1994.
Singh RP, Singh B. “Anomalous subsurface VLF electric field changes related to India-Nepal Border earthquake (M=5.3) of 4 April 2011 and their lithosphere-atmosphere coupling observed at Mathura” J. Atoms. Electr. 2013; 33: 31–9p.
Sharma S, Singh RP, Singh B, et al. “A multi-experiment approach to ascertain electromagnetic precursors of Nepal earthquakes” J. Atoms. Sol. Terr. Phys. 2020a; 197: 1–11p.
Singh RP, Sharma S, Pundhir D. “Effect of VLF Electromagnetic Radiation Associated with some moderate shallow earthquakes (4.9≤M≤6, Depth≤20 Km) on the Atmosphere as observed in the Terrestrial Antenna at Mathura” Geomagnetism and Aeronomy. 2022; 62: 663–74p.
Smirnova NA, Hayakawa M. “Fractal characteristics of the ground-observed ULF emissions in relation to geomagnetic and seismic activities” Journal of Atmospheric and Solar-Terrestrial Physics. 2007; 69: 1833–41p.
Kapiris PG, Balasis GT, Kopanas JA, et al. “Scaling similarities of multiple fracturing of solid materials”. Nonlin. Proc. Geophys. 2004; 11: 137–51p.
Maurya AK, Venkatesham K, Tiwari P, et al. “The 25 April 2015 Nepal earthquake: Investigation of precursor in VLF subionosphereic signal”. J. Geophys. Res.; Space Phys. 2016; 121: 10403–416p.

Sharma S, Singh RP. “Effect of VLF electric field emissions related to shallow earthquakes (M≥4.5) in Nepal on atmosphere”. J. Ind. Geophys. Union. 2020b; 24: 42–9p.
Fujinawa Y, Takahashi K, Node Y, et al. “Remote detection of the electric field change induced at the seismic wavefront from the start of fault rupturing”. Int. J. Geophys. 2011; 2011: 1–11p.
Chauhan V, Singh OP, Pandey V, et al. “A search for precursors of earthquakes from multi-station VLF observation and TEC measurements in India” Indian J. Radio Space Phys. 2012; 41: 543–58p.
