Heat Treatment Research Studies of EN9 Carbon Steel by Quenching Operation in Different Quenching Media

Year : 2024 | Volume :01 | Issue : 02 | Page : 1-25
By

T.R. Vijayaram

S. Nithish

D. Ananthapadmanaban

  1. Professor Department of Mechanical Engineering, School of Mechanical Engineering, BIST, BIHER, Selaiyur, Chennai Tamil Nadu India
  2. Assistant Professor Department of Mechanical Engineering, Bharath Institute of Higher Education and Research, Chennai Tamil Nadu India
  3. Associate Professor Department of Mechanical Engineering, Sri SivaSubramaniya Nadar College of Engineering, Kalavakkam, Chennai Tamil Nadu India

Abstract

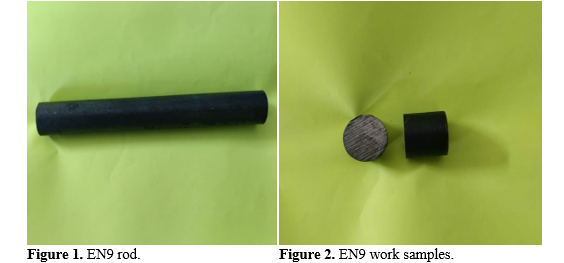

In this experimental research, EN9 type of steels is selected to process the heat treatment by quenching to increase the hardenability of a material. EN9 steel is cut into small work samples with diameter 25mm and length 15mm to analyze. Then they are polished the cut surface in a fine manner. Microstructure and hardness are to be found for EN9 work pieces before heat treatment at different locations like at origin, 2.5 mm, 5 mm, 7.5 mm and 10 mm from origin. The cut work pieces are then placed in muffle furnace and heated at 810º–840º, predetermined temperature range with soaking time 40 minutes. Then once they are heated, immediately they are quenched in different quenching medium with different concentrations in a vessel by using tongs. In this research work, quenching medium chosen are water, oil, brine solution with different concentration and Poly Vinyl Alcohol (PVA), a polymer quenchant with different concentration. Then the microstructure and hardness is compared for EN9 material before heat treatment and after heat treatment with different quenching media to obtain the result. Graphs like location Vs hardness and quenching media Vs average hardness were drawn.

Keywords: EN9, Heat treatment, Water, Oil, Brine solution, Poly Vinyl Alcohol

[This article belongs to International Journal of Mechanical Dynamics and Systems Analysis(ijmdsa)]

How to cite this article: T.R. Vijayaram, S. Nithish, D. Ananthapadmanaban. Heat Treatment Research Studies of EN9 Carbon Steel by Quenching Operation in Different Quenching Media. International Journal of Mechanical Dynamics and Systems Analysis. 2024; 01(02):1-25.
How to cite this URL: T.R. Vijayaram, S. Nithish, D. Ananthapadmanaban. Heat Treatment Research Studies of EN9 Carbon Steel by Quenching Operation in Different Quenching Media. International Journal of Mechanical Dynamics and Systems Analysis. 2024; 01(02):1-25. Available from: https://journals.stmjournals.com/ijmdsa/article=2024/view=144740



p

Browse Figures

References

  1. Dossett, J., & Totten, G. E. (2013). ASM handbook. volume 4A, Steel Heat Treating Fundamentals and Processes, ASM.
  2. Dziubek, M., & Grygier, D. (2022). Comparative analysis of construction materials used for fastening elements of six-point safety belts in rally cars. Combustion Engines, 61.
  3. Munk, S. A., Lai, R. K., Burke, J. E., Arasasingham, P. N., Kharlamb, A. B., Manlapaz, C. A., … & Garst, M. E. (1996). Synthesis and pharmacologic evaluation of 2-endo-amino-3-exo-isopropylbicyclo [2.2. 1] heptane: a potent imidazoline1 receptor specific agent. Journal of medicinal chemistry, 39(6), 1193-1195.
  4. Miracle, D. B., Donaldson, S. L., Henry, S. D., Moosbrugger, C., Anton, G. J., Sanders, B. R., … & Scott Jr, W. W. (2001). ASM handbook (Vol. 21, pp. 107-119). Materials Park, OH: ASM international.
  5. Tuna, B. A., Tinar, E., & Rockwell, D. (2013). Shallow flow past a cavity: globally coupled oscillations as a function of depth. Experiments in fluids, 54, 1-20.
  6. Application of Polymeric Quenchants in Heat treatment of Steel.Eshraghi-kakhi, M.A.Soltani, K.Amini, et.al, International journal of ISSI, Vol.6 (2009) , No.1 , pp. 34-38
  7. Gopalkrishna, G., Gurumurthy, R. B., & Davanageri, M. (2019, March). Heat treatment and mechanical characterization of En8 steel. In AIP Conference Proceedings (Vol. 2080, No. 1). AIP Publishing
  8. Zainulabdeen, A. A., Mahmood, N. Y., & Mohmmed, J. H. (2018, December). The effect of polymeric quenching media on mechanical properties of medium carbon steel. In IOP Conference Series: Materials Science and Engineering (Vol. 454, No. 1, p. 012053). IOP Publishing.
  9. Chandan, B. R., & Ramesha, C. M. (2017). Evaluation of mechanical properties of medium carbon low alloy forged steels quenched in water, oil and polymer. J. Mater. Sci. Eng, 6(2), 1-5.
  10. Effects of Heat Treatment on the Properties of Mild Steel Using Different Quenchants. Ahaneku I. E.1,*, A. R. Kamal2, O. A. Ogunjirin2 .Frontiers in Science 2012, 2(6): 153-158 DOI: 10.5923/j.fs.20120206.04
  11. Aronov, A., Kobasko, N., Powell, J., Andreski, B., & O’Rourke, B. (2014, May). Intensive quenching processes: Basic principles, applications, and commercialization. In Proc. of European Conference on Heat Treatment and 21st IFHTSE Congress. Germany, Munich (pp. 267-274).
Regular Issue Subscription Original Research
Volume 01
Issue 02
Received April 1, 2024
Accepted April 13, 2024
Published April 30, 2024
Views: 21
