Rushikesh Tayade,
Vinay Verma,
Sumit Bamane,
Abhishek Talekar,
Vishnudas A.V.L. Chodankar,
- Student Department of Automobile Engineering, Saraswati College of Engineering, Kharghar, Navi Mumbai Maharashtra India
- Student Department of Automobile Engineering, Saraswati College of Engineering, Kharghar, Navi Mumbai Maharashtra India
- Student Department of Automobile Engineering, Saraswati College of Engineering, Kharghar, Navi Mumbai Maharashtra India
- Student Department of Automobile Engineering, Saraswati College of Engineering, Kharghar, Navi Mumbai Maharashtra India
- Assistant Professor Department of Automobile Engineering, Saraswati College of Engineering, Kharghar, Navi Mumbai Maharashtra India
Abstract

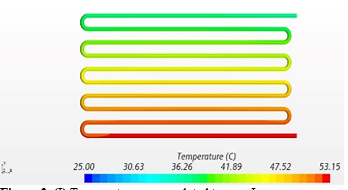

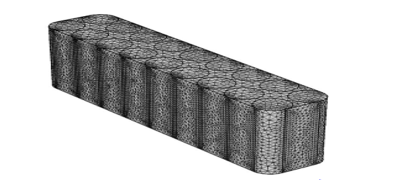

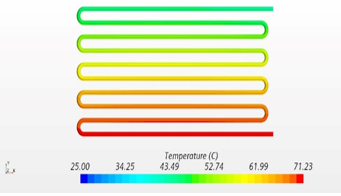

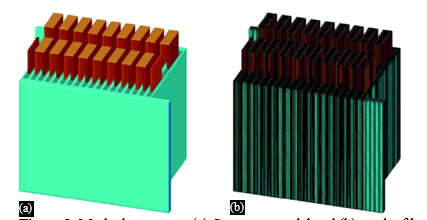

The goal of the project is to keep the battery temperature within the specified range and to improve the battery pack’s performance under different temperature settings. To achieve these goals, we employ software to analyze the data and provide the necessary output. With model-based design, you can understand the dynamic behavior. For this project, a CAD model was produced with Creo Parametric. We used the STAR CCM+ Software for analysis and meshing on that. To absorb the heat from the battery cells, we placed a Silica Pad between the cooling plate and the battery pack. We have a 32-cell battery pack. Several computer simulations and mathematical modeling are used to analyze the cooling plate. We found that by varying the flow rate, there was a 10ᵒ C temperature change. 53°C was the temperature attained for this project. To do so, the flow rate is maintained at 0.9 m/s. To assess pack performance, a 3D CFD simulation can examine flow routes in addition to pressure drop, velocity, heat transfer, and local temperature. We consider the flow rate and silica absorption rate after assuming the heat dissipation rate of the cells. In our findings, the primary goal of the cooling channel study varies depending on the design in order to minimize temperature differential and pressure loss. We investigated the temperature differential between water and ethylene glycol mixture.
Keywords: EV, silica pad, cooling channel, lithium-ion phosphate battery, copper tubes, battery pack
[This article belongs to International Journal of Electrical Power and Machine Systems(ijepms)]
Browse Figures
References
1. Ghosh D, Maguire PD, Zhu DX. Design and CFD simulation of a battery module for a hybrid electric vehicle battery pack. SAE Technical Paper; 2009 Apr 20.
- Jindal P, Sharma P, Kundu M, Singh S, Shukla DK, Pawar VJ, Wei Y, Breedon P. Computational Fluid Dynamics (CFD) analysis of Graphene Nanoplatelets for the cooling of a multiple tier Li-ion battery pack. Thermal Science and Engineering Progress. 2022 Jun 1;31:101282.
- Ghosh D, King K, Schwemmin B, Zhu D. Full hybrid electrical vehicle battery pack system design, CFD simulation and testing. SAE Technical Paper; 2010 Apr 12.
- Li Y, Zhou Z, Su L, Bai M, Gao L, Li Y, Liu X, Li Y, Song Y. Numerical simulations for indirect and direct cooling of 54 V LiFePO4 battery pack. Energies. 2022 Jun 23;15(13):4581.
- Kang T, Park S, Lee PY, Cho IH, Yoo K, Kim J. Thermal analysis of a parallel-configured battery pack (1S18P) using 21700 cells for a battery-powered train. Electronics. 2020 Mar 6;9(3):447.
- Saw LH, Ye Y, Tay AA, Chong WT, Kuan SH, Yew MC. Computational fluid dynamic and thermal analysis of Lithium-ion battery pack with air cooling. Applied energy. 2016 Sep 1;177:783–92.
- Xia Q, Yang D, Wang Z, Ren Y, Sun B, Feng Q, Qian C. Multiphysical modeling for life analysis of lithium-ion battery pack in electric vehicles. Renewable and Sustainable Energy Reviews. 2020 Oct 1;131:109993.
- Cicconi P, Landi D, Germani M. Thermal analysis and simulation of a Li-ion battery pack for a lightweight commercial EV. Applied energy. 2017 Apr 15;192:159–77.
- Xiang L, Lee CW, Zikanov O, Hsu CC. Efficient reduced order model for heat transfer in a battery pack of an electric vehicle. Applied Thermal Engineering. 2022 Jan 25;201:117641.
| Volume | 01 |
| Issue | 02 |
| Received | April 11, 2024 |
| Accepted | April 17, 2024 |
| Published | April 26, 2024 |
