Open Access
Wajid Ali Hashmi,
Abdul Rehman,
G.S. Lathkar,
P.R. Attar,
M. Zubairuddin,
- Student, Mechanical Department, MGM’s College of Engineering, Nanded,, Maharashtra, India
- Assistant Professor, Mechanical Department, MGM’s College of Engineering, Nanded,, Maharashtra, India
- Director, MGM’s College of Engineering, Nanded,, Maharashtra, India
- Assistant Professor, Veermata Jijabai Technological Institute (VJTI), Mumbai,, Maharashtra, India
- Assistant Professor, Aditya Engineering College, Surampalem,, Andhra Pradesh, India
Abstract

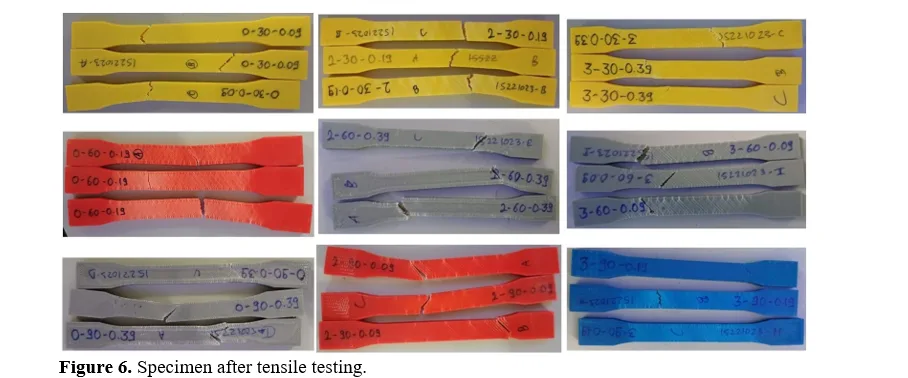

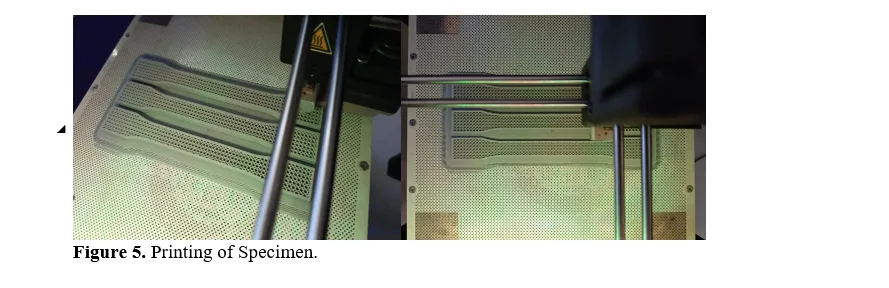

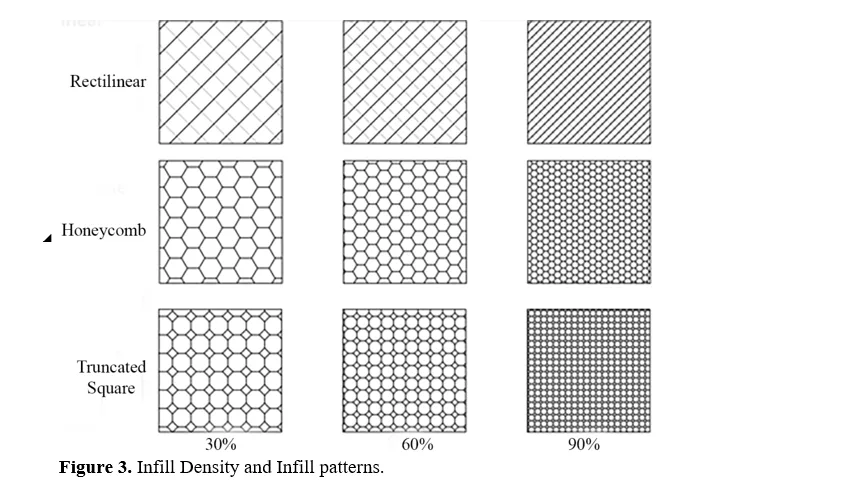

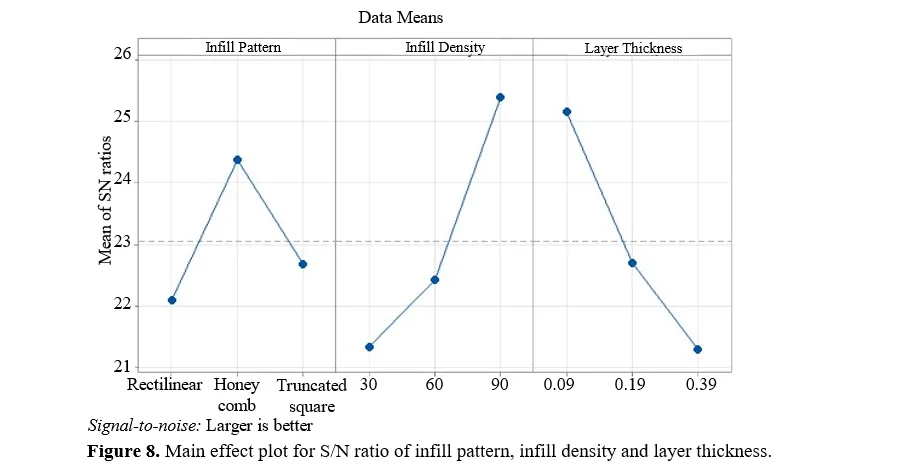

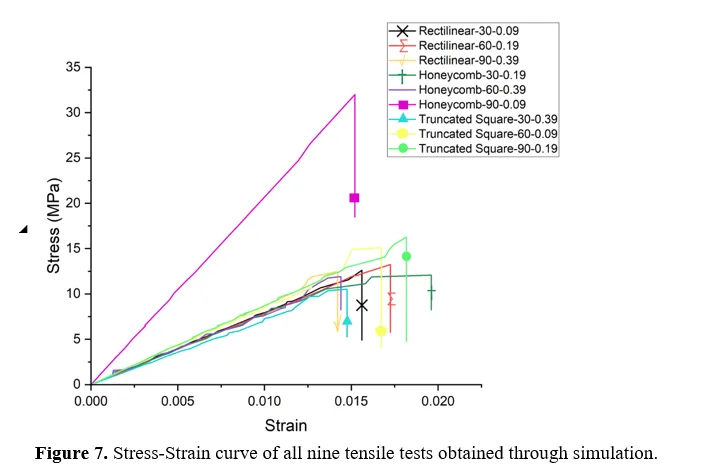

Fused Deposition Modelling (FDM) is a commonly utilized method in additive manufacturing. FDM is greatly affected by its printing parameters, which is why selecting the proper parameters is crucial for obtaining the desired properties of 3D printed parts. In this paper we have experimentally and statistically studied the influence of FDM 3D printing parameters (infill pattern, infill density and layer thickness) on tensile strength using Acrylonitrile Butadiene Styrene (ABS) filament. Nine experiment runs were set using Taguchi’s method and the specimen were printed on an FDM 3D printer. Tensile strength tests were carried out using a Universal Testing Machine (UTM). Based on the results of tensile test, signal to noise ratio (S/N ratio) was found for maximizing the strength. The optimal values were determined using the signal-to-noise ratio (S/N ratio) and an analysis of variance (ANOVA). The results show that the optimal printing parameters are Honeycomb infill pattern with 90% infill density and 0.09mm layer thickness. According to ANOVA, infill density had maximum influence (40.35%) on tensile strength followed by layer thickness (35.04%) and infill pattern (12.89%) respectively.
Keywords: FDM, ABS, Infill Density, Infill Pattern, Layer Thickness
Wajid Ali Hashmi, Abdul Rehman, G.S. Lathkar, P.R. Attar, M. Zubairuddin. Investigating the combined effect of FDM 3D printing parameters on tensile behavior of ABS plastic using Taguchi method. Journal of Polymer and Composites. 2024; ():-.
Wajid Ali Hashmi, Abdul Rehman, G.S. Lathkar, P.R. Attar, M. Zubairuddin. Investigating the combined effect of FDM 3D printing parameters on tensile behavior of ABS plastic using Taguchi method. Journal of Polymer and Composites. 2024; ():-. Available from: https://journals.stmjournals.com/jopc/article=2024/view=174981
References
[1] M. R. Derise, M. Rahmat Derise, and A. Zulkharnain, ‘Effect of Infill Pattern and Density on Tensile Properties of 3D Printed Polylactic acid Parts via Fused Deposition Modeling (FDM)’, 2021. [Online]. [2] Parnika Shrivastava, Anil Dhanola, Kishor Kumar Gajrani, ‘Hybrid Metal Additive Manufacturing’, 2023, doi.org/10.1201/9781003406488 [3] M. Algarni, ‘The Influence of Raster Angle and Moisture Content on the Mechanical Properties of PLA Parts Produced by Fused Deposition Modeling’, 2021, doi: 10.3390/polym. [4] E. Cuan-Urquizo, E. Barocio, V. Tejada-Ortigoza, R. B. Pipes, C. A. Rodriguez, and A. Roman-Flores, ‘Characterization of the mechanical properties of FFF structures and materials: A review on the experimental, computational and theoretical approaches’, Materials, vol. 12, no. 6, Mar. 2019, doi: 10.3390/ma12060895. [5] A. Albar, M. Chougan, M. J. Al- Kheetan, M. R. Swash, and S. H. Ghaffar, ‘Effective extrusion-based 3D printing system design for cementitious-based materials’, Results in Engineering, vol. 6, Jun. 2020, doi: 10.1016/j.rineng.2020.100135. [6] N. Shahrubudin, T. C. Lee, and R. Ramlan, ‘An overview on 3D printing technology: Technological, materials, and applications’, in Procedia Manufacturing, Elsevier B.V., 2019, pp. 1286–1296. doi: 10.1016/j.promfg.2019.06.089. [7] M. Qamar Tanveer, G. Mishra, S. Mishra, and R. Sharma, ‘Effect of infill pattern and infill density on mechanical behaviour of FDM 3D printed Parts- a current review’, Mater Today Proc, vol. 62, pp. 100–108, Jan. 2022, doi: 10.1016/j.matpr.2022.02.310. [8] M. Hikmat, S. Rostam, and Y. M. Ahmed, ‘Investigation of tensile property-based Taguchi method of PLA parts fabricated by FDM 3D printing technology’, Results in Engineering, vol. 11, Sep. 2021, doi: 10.1016/j.rineng.2021.100264. [9] C. Vǎlean, L. Marşavina, M. Mǎrghitaşl, E. Linul, J. Razavi, and F. Berto, ‘Effect of manufacturing parameters on tensile properties of FDM printed specimens’, in Procedia Structural Integrity, Elsevier B.V., 2020, pp. 313–320. doi: 10.1016/j.prostr.2020.06.040. [10] I. Gajdos, J. Slota, E. Spisak, T. Jachowicz, and A. Tor-Swiatek, ‘Structure and tensile properties evaluation of samples produced by Fused Deposition Modeling’, Open Engineering, vol. 6, no. 1, pp. 86–89, 2016, doi: 10.1515/eng-2016-0011. [11] A. Pandžić, D. Hodžić, and E. Kadrić, ‘Experimental Investigation on Influence of Infill Density on Tensile Mechanical Properties of Different FDM 3D Printed Materials’, TEM Journal, vol. 10, no. 3, pp. 1195–1201, Aug. 2021, doi: 10.18421/TEM103-25. [12] Karuppiah G, Kuttalam KC, Palaniappan M, Santulli C, Palanisamy S., ‘Multiobjective Optimization of Fabrication Parameters of Jute Fiber/Polyester Composites with Egg Shell Powder and Nanoclay Filler. Molecules.’ 2020; 25(23):5579. doi.org/10.3390/molecules25235579 [13] Karuppiah G, Kuttalam KC, Ayrilmis N, Nagarajan R, Devi MPI, Palanisamy S, Santulli C., ‘Tribological Analysis of Jute/Coir Polyester Composites Filled with Eggshell Powder (ESP) or Nanoclay (NC) Using Grey Rational Method. Fibers.’ 2022; 10(7):60. doi.org/10.3390/fib10070060 [14] S. Kumar, K. Jb, K. Park, K. Scholar, A. P. (Mech, and R. Sahai, ‘An Overview on Taguchi Method’. [Online]. [15] Resit Unal and Edwin B. Dean, ‘TAGUCHI APPROACH TO DESIGN OPTIMIZATION FOR QUALITY AND COST: AN OVERVIEW’, Accessed: Nov. 16, 2023. [Online]. [16] John D. Kechagias, Konstantinos Ninikas, Foteini Vakouftsi, Nikolaos A. Fountas, Sivasubramanian Palanisamy, Nikolaos M. Vaxevanidis, ‘Optimization of laser beam parameters during processing of ASA 3D‑printed plates’, Int J Adv Manuf Technol 130, 527–539 (2024). doi.org/10.1007/s00170-023-12711-4.
Journal of Polymer and Composites
| Volume | |
| Received | March 11, 2024 |
| Accepted | June 6, 2024 |
| Published | August 2, 2024 |
