Wear Performance of Cylindrical Shaped Alumina Nanoparticles Filled Epoxy Composite

Open Access

Year : 2024 | Volume :12 | Special Issue : 05 | Page : 94-100
By

Arvinda Kumar Pandit,

Vijay Verma,

Vijay Kumar Dwivedi,

  1. Assistant Professor, Mechanical Engineering Department, FIT Engineering College, Meerut,, Uttar Pradesh, India
  2. Associate Professor, Mechanical Engineering Department, Bundelkhand Institute of Engineering and Technology, Jhansi,, Uttar Pradesh, India
  3. Professor, Mechanical Engineering Department, GLA University, Mathura,, Uttar Pradesh, India

Abstract

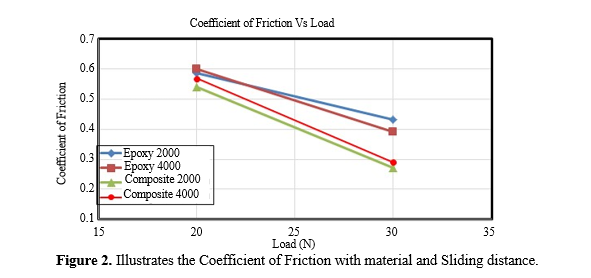

Low cost high specific strength epoxy LY 556 and alumina nano filler is utilized in current research for developing a epoxy composite. A liquid dispersion method was adopted for fabricating epoxy alumina composite having 0.50 wt% of alumina reinforcement. For uniform and homogenous dispersion of reinforcement, ultra-sonification of 120 W is adopted. To study the effect of particle behavior, unfilled epoxy and 0.5 wt.% cylindrical alumina oxide filled epoxy composite were used. The cylindrical-shaped alumina oxide with a diameter in the range of 5–10 nm and length of less than equal to 50 nm was used. Dry sliding wear experiment on the pin–on–disc was performed to evaluate friction and sliding wear performance of unfilled epoxy and epoxy filled by cylindrical-shaped filler in short term and long term. In the present investigation, 2000 m distance (short term) and 4000 m distance (long term) were the sliding distance opted. The applied forces are 20 N and 30 N is applied during testing and velocity of sliding is 1.26 m/sec is taken as same throughout the experiment. As load enhanced there is a decrement in coefficient of friction, stable transfer film may be the reason for the same. Maximum decrease in COF is at low sliding distance of 2000 m at 30 N applied load is 60%.

Keywords: Friction, Epoxy composite, Cylindrical shaped alumina oxide, Dry sliding wear, Coefficient of friction.

[This article belongs to Special Issue under section in Journal of Polymer and Composites (jopc)]

How to cite this article:
Arvinda Kumar Pandit, Vijay Verma, Vijay Kumar Dwivedi. Wear Performance of Cylindrical Shaped Alumina Nanoparticles Filled Epoxy Composite. Journal of Polymer and Composites. 2024; 12(05):94-100.
How to cite this URL:
Arvinda Kumar Pandit, Vijay Verma, Vijay Kumar Dwivedi. Wear Performance of Cylindrical Shaped Alumina Nanoparticles Filled Epoxy Composite. Journal of Polymer and Composites. 2024; 12(05):94-100. Available from: https://journals.stmjournals.com/jopc/article=2024/view=174878


Browse Figures

References

  1. Shukla DK, Sonia P, Verma V. Characterization of fracture properties of epoxy-alumina polymer nanocomposite. Applied mechanics and materials. 2013 Nov 14;390:557-61.
  2. Verma V, Shukla DK, Kumar V. Estimation of fatigue life of epoxy-alumina polymer nanocomposites. Procedia materials science. 2014 Jan 1;5:669-78.
  3. Verma V, Sayyed AH, Sharma C, Shukla DK. Tensile and fracture properties of epoxy alumina composite: role of particle size and morphology. Journal of Polymer Research. 2020 Dec;27:1-4.
  4. Verma V, Sharma C. Fatigue behavior of epoxy alumina nanocomposite–role of particle morphology. Theoretical and applied fracture mechanics. 2020 Dec 1;110:102807.
  5. Verma V, Tiwari H. Role of filler morphology on friction and dry sliding wear behavior of epoxy alumina nanocomposites. Proceedings of the Institution of Mechanical Engineers, Part J: Journal of Engineering Tribology. 2021 Aug;235(8):1614-26.
  6. Shivhare Y, Narwariya M, Sharma C, Verma V, Pandey AK, “Effect of coconut husk layer on the behaviour of industrial helmet”, IJERMCE, 9 (6), 2022, pg-37-41.
  7. Abenojar Buendía J, Tutor Sánchez J, Ballesteros Iglesias MY, del Real Romero JC, Martínez Casanova MÁ. Erosion-wear, mechanical and thermal properties of silica filled epoxy nanocomposites.
  8. Akinci A, Sen S, Sen U. Friction and wear behavior of zirconium oxide reinforced PMMA composites. Composites Part B: Engineering. 2014 Jan 1;56:42-7.
  9. Bhimaraj P, Burris DL, Action J, Sawyer WG, Toney CG, Siegel RW, Schadler LS. Effect of matrix morphology on the wear and friction behavior of alumina nanoparticle/poly (ethylene) terephthalate composites. Wear. 2005 Apr 1;258(9):1437-43.
  10. Burris DL, Sawyer WG. A low friction and ultra low wear rate PEEK/PTFE composite. Wear. 2006 Aug 30;261(3-4):410-8.
  11. Rahuman MA, Kumar SS, Prithivirajan R, Shankar SG. Dry sliding wear behavior of glass and jute fiber hybrid reinforced epoxy composites. International Journal of Engineering Research and Development. 2014;10(11):46-50.
  12. Fouly A, Alkalla MG. Effect of low nanosized alumina loading fraction on the physicomechanical and tribological behavior of epoxy. Tribology International. 2020 Dec 1;152:106550.
  13. Nawariya M, Sharma AK, Sonia P, Verma V. Static and harmonic analysis of moderately thick square sandwich plate using FEM. Advances in Materials Research. 2023 Jun;12(2):83.
  14. Narwariya M, Patidar V, Sharma AK. Harmonic analysis of laminated skew plate with different geometrical cut-outs. International Journal of Innovative Technology and Exploring Engineering. 2019;8(5):207-11.
  15. Kurahatti RV, Surendranathan AO, Srivastava S, Singh N, Kumar AR, Suresha B. Role of zirconia filler on friction and dry sliding wear behaviour of bismaleimide nanocomposites. Materials & Design. 2011 May 1;32(5):2644-9.
  16. Vinay SS, Venkatesh CV. Effect of nano-Al2O3 particles on mechanical and wear behaviour of glass fibre epoxy composites. Materials Today: Proceedings. 2021 Jan 1;46:9004-7.
  17. Wang Q, Pei X. The influence of nanoparticle fillers on the friction and wear behavior of polymer matrices. InTribology and Interface Engineering Series 2008 Jan 1 (Vol. 55, pp. 62-81). Elsevier.
  18. Pandit AK, Verma V, Dwivedi VK. Experimental investigation of erosion behaviour of epoxy reinforced with different shape of Nano sized alumina oxide. Journal of The Institution of Engineers (India): Series D. 2023 Aug 23:1-5.
  19. Singh R, Narwariya M, Sharma AK, Chauhan PS, Singh R. Design and fabrication of epoxy-based hip implant. International Journal of Materials Engineering Innovation. 2022;13(4):346-59.
  20. Karuppiah G, Kuttalam KC, Ayrilmis N, Nagarajan R, Devi MI, Palanisamy S, Santulli C. Tribological analysis of jute/coir polyester composites filled with eggshell powder (ESP) or nanoclay (NC) using grey rational method. Fibers. 2022 Jul 12;10(7):60.
  21. Palanisamy S, Kalimuthu M, Azeez A, Palaniappan M, Dharmalingam S, Nagarajan R, Santulli C. Wear properties and post-moisture absorption mechanical behavior of kenaf/banana-fiber-reinforced epoxy composites. Fibers. 2022 Apr 2;10(4):32.
  22. Sumesh KR, Palanisamy S, Khan T, Ajithram A, Ahmed OS. Mechanical, Morphological and Wear Resistance of Natural Fiber/Glass Fiber-based Polymer Composites. BioResources. 2024 Apr 11;19(2):3271-89.
  23. Armstrong M, Mahadevan S, Selvapalam N, Santulli C, Palanisamy S, Fragassa C. Augmenting the double pipe heat exchanger efficiency using varied molar Ag ornamented graphene oxide (GO) nanoparticles aqueous hybrid nanofluids. Frontiers in Materials. 2023 Jul 28;10:1240606.
  24. Palanisamy S, Murugesan TM, Palaniappan M, Santulli C, Ayrilmis N, Alavudeen A. Selection and Processing of Natural Fibers and Nanocellulose for Biocomposite Applications: A Brief Review. BioResources. 2024 Jan 1;19(1).
  25. Anjum N, Ajit Prasad SL, Suresha B. Role of Silicon Dioxide Filler on Mechanical and Dry Sliding Wear Behaviour of Glass‐Epoxy Composites. Advances in tribology. 2013;2013(1):324952.
  26. Sudheer M, Madhyastha NK, Amanna MK, Jonthan B, Jayaprakash KM. Mechanical and abrasive wear behavior of metal sulphide lubricant filled epoxy composites. International Scholarly Research Notices. 2013;2013(1):242450.
Special Issue Open Access Original Research
Volume 12
Special Issue 05
Received June 5, 2024
Accepted June 14, 2024
Published September 3, 2024
