Jharna Gupta,
Kunal P. Argade,
Dhaval G. Shrimali,
Nitin Bhate,
Nikul K. Patel,
- Assistant Professor Department of Chemical Engineering, Faculty of Technology & Engineering, The Maharaja Sayajirao University of Baroda Gujarat India
- Student Department of Chemical Engineering, Faculty of Technology & Engineering, The Maharaja Sayajirao University of Baroda Gujarat India
- Student Department of Chemical Engineering, Faculty of Technology & Engineering, The Maharaja Sayajirao University of Baroda Gujarat India
- Associate Professor Department of Chemical Engineering, Faculty of Technology & Engineering, The Maharaja Sayajirao University of Baroda Gujarat India
- Assistant Professor Department of Mechanical Engineering, Faculty of Technology & Engineering, The Maharaja Sayajirao University of Baroda Gujarat India
Abstract

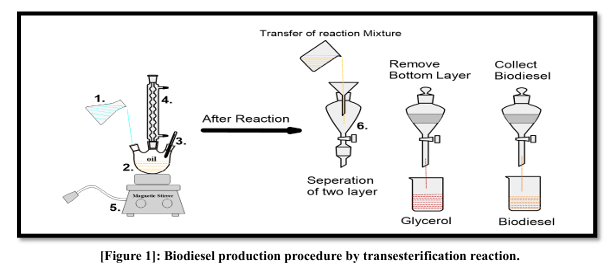

In the present experimental study, an optimization of biodiesel production from different kinds of edible oils (Palm oil, Cotton-seed oil and Sunflower oil) using KOH & NaOH as homogenous catalyst has been investigated by one step transesterification method. The research study was conducted into two parts. In the first experimental study, different types of edible oils (Sunflower oil, Cottonseed oil and Palm oil) have been optimised using KOH and NaOH catalyst for biodiesel synthesis by one step transesterification method. The maximal biodiesel yield (98%) was found by sunflower oil using different reaction parameters such as process temperature of 60°C, Alcohol(methanol) to oil molar ratio [6:1], catalyst (KOH) concentration of 1 gm./100 cc feed and process time of 55 min. In the second experimental study, transesterification reaction parameters were again optimised using optimised feedstock i.e. sunflower oil and optimised catalyst i.e. KOH (homogeneous catalyst) and found the maximal desired biodiesel yield (99%) using a 0.8 gm KOH catalyst, Alcohol (methanol) to oil ratio was 6:1 and 55 minute process time at 55°C. Produced biodiesel properties (Kinematic viscosity, flash point, fire point, cloud point and pour point) were also estimated and confirmed by the biodiesel standard ASTM D6751 and found within the prescribed limit. Gas Chromatography analysis was also performed for checking Fatty Acid Methyl Ester (FAME) purity. These results indicate that KOH as homogeneous catalyst and sunflower oil as edible oil is found to be the best combination of homogeneous catalyst and edible oil in terms of high biodiesel yield with good properties.
Keywords: Biodiesel, Sunflower oil, Homogenous catalyst, Transesterification reaction, Edible oil
[This article belongs to Emerging Trends in Chemical Engineering(etce)]
Browse Figures
References
[1] Moosavian, S. F., Noorollahi, Y., & Shoaei, M. (2024). Renewable energy resources utilization planning for sustainable energy system development on a stand-alone island. J. Clean. Prod., 140892. [2] Selaimia, R., Beghiel, A., & Oumeddour, R. (2015). The synthesis of biodiesel from vegetable oil. Procedia Soc. Behav. Sci., 195, 1633-1638. [3] Yaakob, Z., Mohammad, M., Alherbawi, M., Alam, Z., & Sopian, K. (2013). Overview of the production of biodiesel from waste cooking oil. Renew. sustain. Energy Rev. 18., 184-193. [4] Hassan, Q., Algburi, S., Sameen, A. Z., Tariq, J., Al-Jiboory, A. K., Salman, H. M., … & Jaszczur, M. (2024). A comprehensive review of international renewable energy growth. Energy Environ. [5] Ilyas, M., Mu, Z., Akhtar, S., Hassan, H., Shahzad, K., Aslam, B., & Maqsood, S. (2024). Renewable energy, economic development, energy consumption and its impact on environmental quality: New evidence from South East Asian countries. Renew. Energy., 223, 119961. [6] Al-Hamamre, Z., Sandouqa, A., Al-Saida, B., Shawabkeh, R. A., & Alnaief, M. (2023). Biodiesel production from waste cooking oil using heterogeneous KNO3/Oil shale ash catalyst. Renew. Energy., 211, 470-483. [7] Chakraborty, D. D., Nath, L. K., & Chakraborty, P. (2024). Enzymatic biodiesel production. Enzymes in Oil Processing.,15-31. [8] Thifal, M., Alwi, M., Murizal, Z., Pratama, A., & Rizal, M. (2023). The synthesis of biodiesel from palm oil and waste cooking oil via electrolysis by various electrodes. J. Environ. Chem. Eng., 8, 100512. [9] Ghoreishi, S. M., & Moein, P. (2013). Biodiesel synthesis from waste vegetable oil via transesterification reaction in supercritical methanol. J Supercrit Fluids., 76, 24-31. [10] Guo, Y., Delbari, S. A., Namini, A. S., Van Le, Q., Park, J. Y., Kim, D., … & Li, C. (2023). Recent developments in solid acid catalysts for biodiesel production. Mol. Catal., 547, 113362. [11] Zhang, L. Y., Wang, Y. Z., Wei, G. T., Li, Z. Y., & Huang, H. N. (2016). Biodiesel preparation from Jatropha oil catalyzed by KF/Red mud catalyst. Energy Sources, Part A: Recovery, Utilization, and Environmental Effects, 38(12), 1713-1720. [12] Sneha, R., & Madhumitha, G. (2023). Application of Organo-tin based complexes in Transesterification reaction for Biodiesel production-A review. J Organomet Chem., 122870. [13] Oyekunle, D. T., Barasa, M., Gendy, E. A., & Tiong, S. K. (2023). Heterogeneous catalytic transesterification for biodiesel production: Feedstock properties, catalysts and process parameters. Process Safety and Environmental Protection. [14] Sundaramahalingam, M. A., & Sivashanmugam, P. (2023). Biodiesel production from a novel renewable source through the ultrasound-assisted transesterification process, using energy efficient nanocatalyst developed from waste material. Fuel, 346, 128397. [15] Razuki, A., Kaus, N. H. M., Sagadevann, S., Salaeh, S., Ibrahim, M. L., & Abdullah, M. M. A. B. (2023). Revolutionizing biodiesel production: A breakthrough synthesis and characterization of bismuth ferrite nanocatalysts for transesterification of palm and waste cooking oil. Fuel, 346, 128413. [16] Maleki, B., Singh, B., Eamaeili, H., Venkatesh, Y. K., Talesh, S. S. A., & Seetharaman, S. (2023). Transesterification of waste cooking oil to biodiesel by walnut shell/sawdust as a novel, low-cost and green heterogeneous catalyst: Optimization via RSM and ANN. Ind. Crops Prod., 193, 116261. [17] Ahmad, M., & Zafar, M. (2023). Synthesis of green and non-toxic biodiesel from non-edible seed oil of Cichorium intybus using recyclable nanoparticles of MgO. Mater. Today Commun., 35, 105611. [18] Rezki, B., Essamlali, Y., Amadine, O., Sair, S., Aadil, M., Len, C., & Zahouily, M. (2024). A comprehensive review on apatite-derived catalysts for sustainable biodiesel production: Classification, features and challenges. J. Environ. Chem. Eng., 111913. [19] Negm, N. A., Betiha, M. A., Alhumaimess, M. S., Hassan, H. M., & Rabie, A. M. (2019). Clean transesterification process for biodiesel production using heterogeneous polymer-heteropoly acid nanocatalyst. J. Clean. Prod., 238, 117854. [20] Saidi, M., & Amirnia, R. (2024). Recent advances on application of Metal-Organic framework-based catalysts in biodiesel production Process: A review of catalyst types and Activity, challenges and opportunities. Fuel, 363, 130905. [21] Bockisch, M. (Ed.). (2015). Fats and oils handbook (Nahrungsfette und Öle). [22] Bockisch, M. (Ed.). (2015). Fats and oils handbook (Nahrungsfette und Öle). [23] Chozhavendhan, S., Singh, M. V. P., Fransila, B., Kumar, R. P., & Devi, G. K. (2020). A review on influencing parameters of biodiesel production and purification processes. Curr. Opin.. Green Sustain. Chem., 1, 1-6. [24] Agarwal, M., Chauhan, G., Chaurasia, S. P., & Singh, K. (2012). Study of catalytic behaviour of KOH as homogeneous and heterogeneous catalyst for biodiesel production. J. Taiwan Inst. Chem. Eng., 43(1), 89-94. [25] Agarwal, M., Chauhan, G., Chaurasia, S. P., & Singh, K. (2012). Study of catalytic behaviour of KOH as homogeneous and heterogeneous catalyst for biodiesel production. J. Taiwan Inst. Chem. Eng., 43(1), 89-94. [26] Agarwal, M., Chauhan, G., Chaurasia, S. P., & Singh, K. (2012). Study of catalytic behaviour of KOH as homogeneous and heterogeneous catalyst for biodiesel production. J. Taiwan Inst. Chem. Eng., 43(1), 89-94. [27] Van Gerpen, J. (2004). Biodiesel production technology. [28] Sharma, Y. C., Singh, B., & Korstad, J. (2010). Application of an efficient nonconventional heterogeneous catalyst for biodiesel synthesis from Pongamia pinnata oil. Energy Fuels, 24(5), 3223-3231.
Emerging Trends in Chemical Engineering
| Volume | 11 |
| Issue | 02 |
| Received | June 26, 2024 |
| Accepted | July 9, 2024 |
| Published | August 1, 2024 |
